Operation Lamp

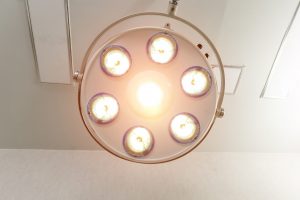

Operating room lighting is considered one of the key elements in the success of surgical procedures performed by practitioners. This lighting is provided by surgical lights, which are special lamps designed to illuminate the surgical area, providing bright, even illumination focused on the operating table during the surgical procedure.
The primary function of surgical lights is to provide adequate illumination during a surgical procedure. The light from these lights must be white because, in the operating room, the physician must be able to observe the color of any organ or tissue, as this is an indicator of the patient's condition and health. These lamps must also provide hours of bright light without overheating the patient or the nursing staff involved in the operation.
At Kalstein you will find the ideal Operating Lamp for your Operating Room

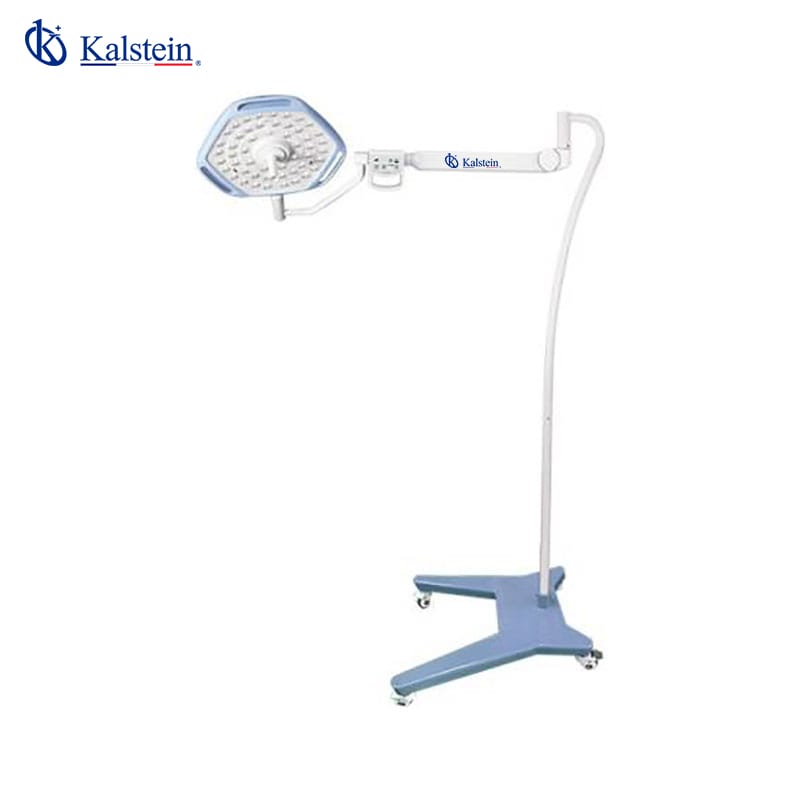

Operation Lamp YR02115 // YR02123
Osram LED bulbs. 50000 hours bulb life. Light focus controlled by the sterile handle. One button for max. illuminance...

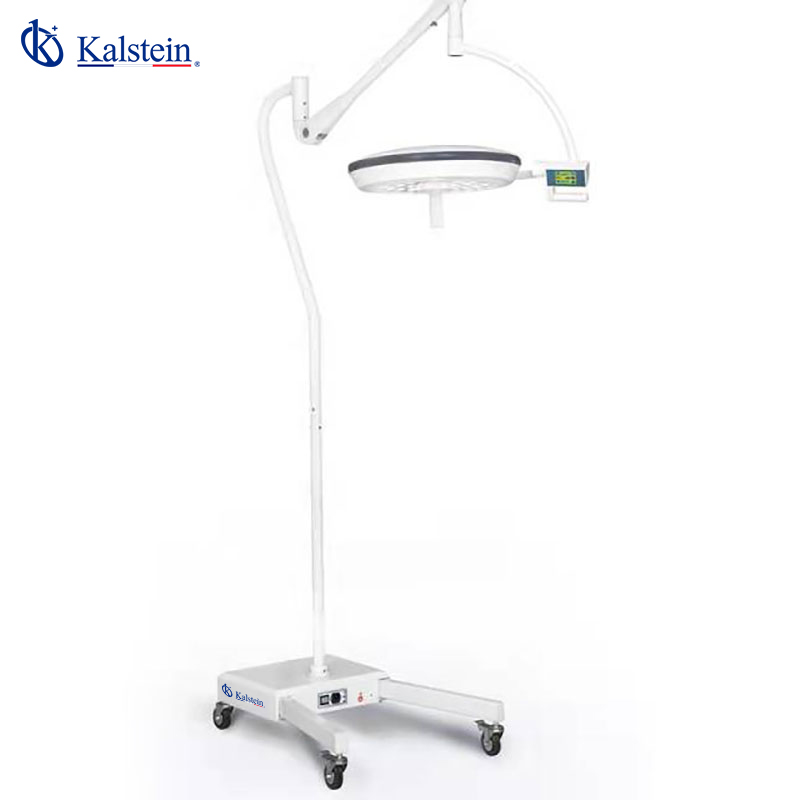

Operation Lamp YR02125 // YR02140
Our ergonomic, sterile operating concept allows for the simple and flexible control of all functions by the surgical team...
Operation Lamp YR05996 // YR06004
Cold light operation lamp meets the requirements of lighting for surgical operations in special circumstances...

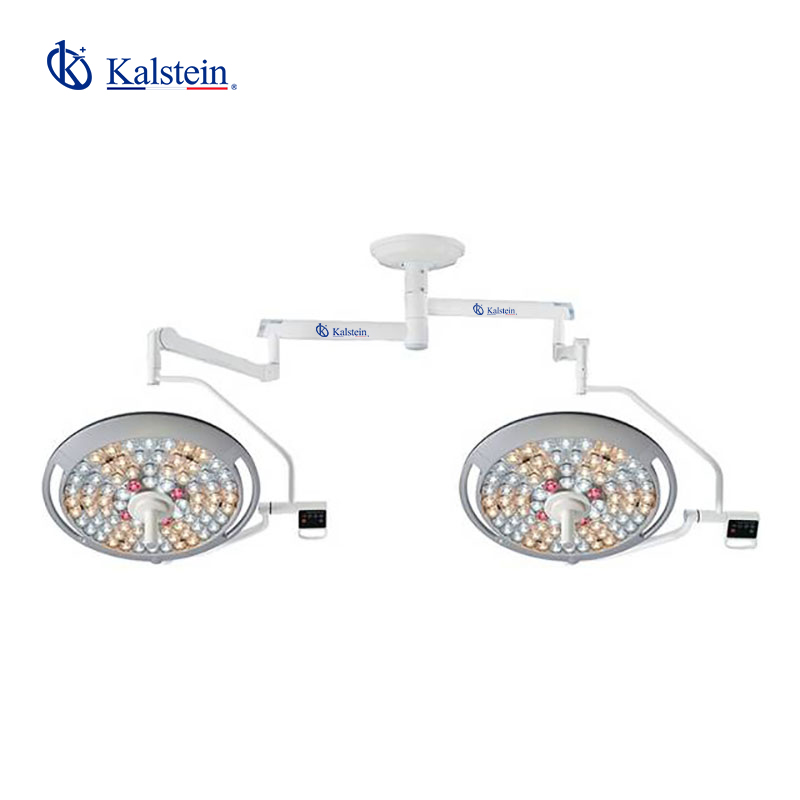

Operation Lamp YR02106 // YR02112
Intelligent touch control screen. The no welding titanium alloy arm, imported spring arm is lifted and lowed easily and freely...
Our best-selling Operating Lamp
Adopt imported LED cold light source.
Nano coating and die-cast aluminum enclosure creating a streamlined excellent cooling effect.
Intelligent touch control screen.
The removable handle sheath can be cleaned and disinfected.
The no welding titanium alloy arm, imported spring arm is lifted and lowed easily and freely.
The imported switch power supply is adopted to control the voltage, making the working voltage permanently stable.
Adjustable temperature, R9 features that enhance the red color rendering index.
The service life of LED shadowless lamp is long (50,000h).
| Model | YR02106 | YR02107 | YR02108 | YR02109 | YR02110 | YR02111 | YR02112 |
| Illumination at 1m(lux) | 160000/160000 | ||||||
| Illumination at 1m on Endo model(lux) | 15000 | ||||||
| Light field diameter D10 mm | 180±40/180±40 | 180-300 | |||||
| D50 mm | 110±35/110±35 | 180-300 | |||||
| Depth of illumination L1+L2 mm | 150 | >1000 | |||||
| Color rendering index(Ra) | 100≥Ra≥85 | ≥97 | |||||
| Red color index R9 | R9≥97 | ≥97 | |||||
| Optional color temperature(K) | 6700K ≥Tc≥3500k | 6700K ≥Tc≥3000k | 4500K±500K | ||||
| Average bulb life (hours) | 50000h | >50000h | |||||
| Heat-to-light ratio(mW/m ²lx) | ＜6 | ||||||
| Power supply | 110-240V | AC110-240V 50/60Hz | |||||
| Input power(VA) | 150W/150W | ||||||
| Ceiling height for installation(cm) | 270-320 cm | 260 cm | |||||
Analysis of the best Operating Lamps for your Operating Rooms
How the operating lights are used?
The operating room lights are used to optimize and obtain a maximum clear visualization in the operating field...
Different Kinds of Surgical Operation Lamps
The lamps used in the operating room are conditioned to provide optimal lighting during the operation process...
Surgical lamps: models and applications
Proper lighting in an operating room is so important, as it offers a number of benefits to the doctor and the patient at the time...
What color should the lighting have in an operating room?
One of the aspects that is important that is part of the needs of a surgeon at the time of operating, is lighting...
Catalog of Models of Operating Lamp on Offer
-
Operation Lamp YR05996 // YR06004
Select options This product has multiple variants. The options may be chosen on the product page -
Operation Lamp YR02106 // YR02112
Select options This product has multiple variants. The options may be chosen on the product page -
LED Surgical Light YR02104 – YR02105
Select options This product has multiple variants. The options may be chosen on the product page -
Operation Lamp YR02115 // YR02123
Select options This product has multiple variants. The options may be chosen on the product page
Guides to become an expert in Operating Lamp
Operating Lamp are essential in a Operating Room, we provide guides and recommendations
for better use, so you can work as an expert.
Revolutionizing operating room lighting
One of the most relevant elements to perform efficient and quality work within an operating room is lighting, and is decisive...
Surgical gas discharge lamps in operating rooms?
First of all, gas discharge lamps, made of halogen gas and quartz glass, are resplendent and provide a very intense and bright white light.....
Is fiber optic used for lighting an operating room?
The lighting of the operating room is an important key in the visibility of the operative field, since it provides security for the...

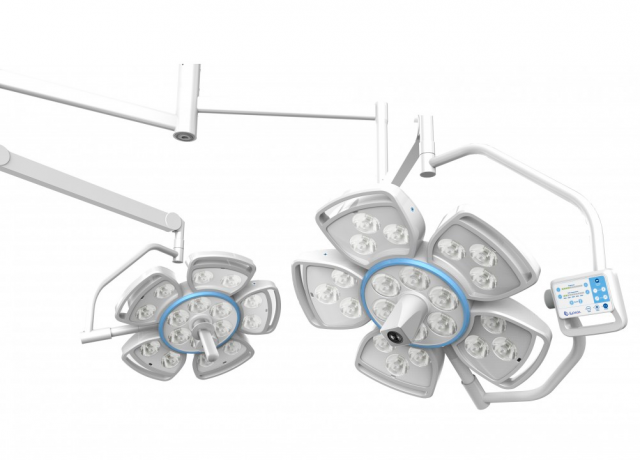

Operation Lamps: types and models
The lighting of an operating room is one of the essential aspects to consider to achieve success in any of the surgical procedures...
Questions frequently asked by our customers about Operation Lamps
How can I find out the prices of the Operating Lamps?
To know the price of the Operational Lamp, we invite you to send us an email with your request using the contact form.
What are the delivery times for Operating Lamps?
The delivery time of your Kalstein product depends on the following:
Whether the equipment you are interested in is in stock or needs to be manufactured.
The type of freight you have chosen: air or sea freight.
Equipment in stock:
- Delivery time (air): 15-30 days.
- Delivery time (sea): 45-60 days.
Equipment not in stock:
- Delivery time (air): 30-60 days.
- Delivery time (sea): 60-90 days.
How to make a purchase of Operating Lamps?
You can make your purchase through :
By e-mail: [email protected]
By telephone: +33 (0) 1 78 95 87 02
E-commerce: via the official Kalstein website in your country.
How does the warranty work?
All Kalstein equipment is guaranteed for 1 year against manufacturing defects. The warranty does not cover damage caused by improper installation or use by the user, by transportation defects or by uses other than those specified by the manufacturer. The warranty does not cover electrical parts or consumables. For more information, please consult our "terms and conditions" by clicking here HERE
At Kalstein, we make it easy for our customers to receive inductions and technical assistance through new online methods. You can view our instructional videos, technical assistance and tips provided by a Kalstein team on our Youtube channel HERE.
Can I request a quote online?
Of course, you can request a quote for the Kalstein equipment you are interested in directly on our official website. Once you have identified the model of your choice, click on HERE
