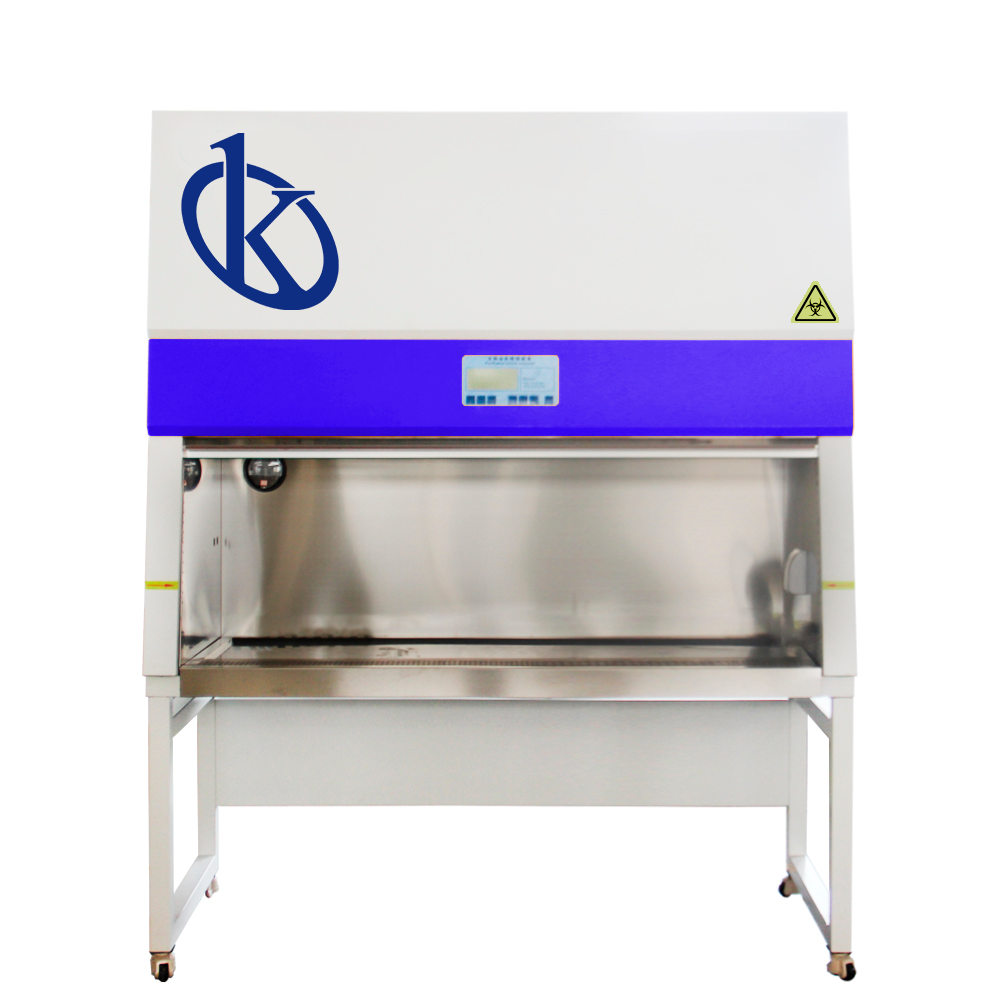

Biological Safety Cabinet 100% Exhaust Class II A2 Biosafety Cabinet YR05704 // YR05707

Manufacturer:ย Kalstein


  • Air curtain isolation design prevents internal and external cross-contamination, 30% of the air flow is discharged outside and 70% of the internal circulation, negative pressure vertical laminar flow, no need to install pipes.
  • The glass door can be moved up and down, can be positioned arbitrarily, is easy to operate, and can be completely closed for sterilization, and the positioning height limit alarm prompts
  • The power output socket in the work area is equipped with a waterproof socket and a sewage interface to provide great convenience for the operator
  • A special filter is installed at the exhaust air to control emission pollution.
  • The working environment is made of high-quality 304 stainless steel, which is smooth, seamless, and has no dead ends. It can be easily and thoroughly disinfected and can prevent corrosion by corrosive agents and disinfectants.
  • It adopts LED LCD panel control and built-in UV lamp protection device, which can only be opened when the safety door is closed.
  • With DOP detection port, built-in differential pressure gauge.
  • 10ยฐ tilt angle, in line with the human body design concept
Technical Specifications
Model YR05704 YR05705 YR05706 YR05707
Cleanliness Class 100@โ‰ฅ0.5ฮผm (US Federal 209E)
Number of colonies โ‰ค0.5pcs/dishยทhour (ฮฆ90mm culture plate)
Average wind speed Inside the door 0.38ยฑ0.025m/s
Middle 0.26ยฑ0.025m/s
Inside 0.27ยฑ0.025m/s
Front suction wind speed 0.55mยฑ0.025m/s๏ผˆ30%ย Efflux๏ผ‰
Noise โ‰ค65dB(A)
Voltage ACย single-phase ย 220V/50Hz
Maximum power consumption 400W 500W 600W 700W
Weight 170KG 210KG 250KG 270KG
Working areaย W1ร—D1ร—H1 840ร—650ร—620 1040ร—650ร—620 1340ร—650ร—620 1640ร—650ร—620
Overall dimensionย Wร—Dร—H 1000ร—800ร—2100 1200ร—800ร—2100 1500ร—800ร—2100 1800ร—800ร—2100
High efficiency filter specification and quantity 780ร—490ร—50ร— 1 520ร—380ร—70ร— 1 820ร—380ร—70ร— 1 1120ร—380ร—70ร— 1
Specification and quantity of fluorescent lamp/ultraviolet lamp 12Wร—1 / 20Wร—1 20Wร—2/20Wร—1 30Wร—2/30Wร—1 30Wร—2/30Wร—1

Additional information

Weight N/A
Dimensions N/A

YR05704, YR05705, YR05706, YR05707
