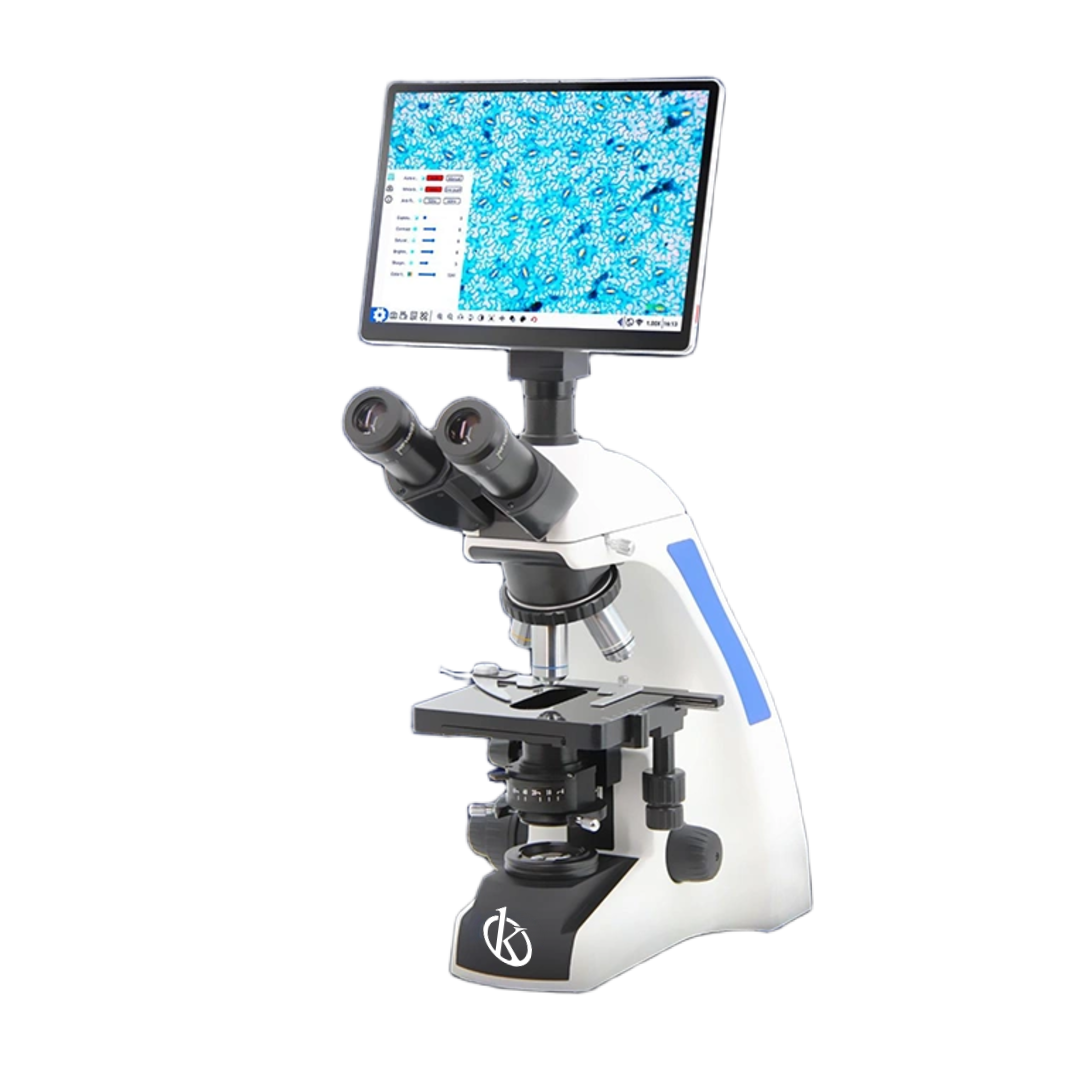

Digital microscope with 10.5-inch LCD touchscreen YR06680

The YR06680 Digital Microscope represents the forefront of biological microscopy, integrating a powerful 10.5” LCD touchscreen with an Android 11 operating system. This "all-in-one" system eliminates the need for an external computer, allowing researchers, medical professionals, and educators to observe, measure, and analyze samples directly on a high-resolution touch interface. Designed for laboratories seeking efficiency and modernity, the YR06680 combines precision achromatic optics with a 4K digital camera to capture details invisible to the naked eye.

Design and Technology (Functionality)

This microscope stands out for its superior technological integration and ergonomic design:

• Integrated Visualization: Features a built-in 10.5" Android 11 tablet that allows control via touchscreen or USB mouse/keyboard.

• 4K Digital Capture: Equipped with an 8.0MP CMOS sensor (1/1.8") offering an ultra-high resolution of 3840*2158 at 30 FPS for crisp images and smooth videos.

• Precision Optics: Includes HC achromatic objectives (4x, 10x, 40x, and 100x), with the option to upgrade to Infinity optics for superior image correction.

• Professional Illumination: Utilizes 3W Kohler LED illumination with a removable lamp house, ensuring uniform light and greatly simplifying preventive maintenance.

• Total Connectivity: HDMI, USB 3.0, and LAN outputs for exporting data or projecting onto larger external screens.

Frequently Asked Questions (FAQ)

• Can I perform measurements directly on the device? Yes, the microscope includes built-in software specifically designed for measuring and analyzing captured images without needing external software.

• What is the storage capacity for photos and videos? The integrated tablet features 16G ROM for internal recording.

• Can the head be rotated to share the view? Yes, it features a 360° rotating eyepiece tube for increased operational comfort.

Advantages and Disadvantages

• Autonomous System: The integrated Android system allows for independent operation without relying on a PC.

• 4K Image Quality: The 1/1.8" sensor is superior in size and sensitivity to standard sensors, capturing significantly more detail.

• Ease of Maintenance: The removable LED illumination design allows for quick changes without dismantling the unit.

• Processing Limits: With 2G of RAM, processing very complex analysis of heavy 4K images might require exporting to an external PC for higher speeds.

Field Use and Recommendations

The YR06680 is ideal for:

• Clinical Laboratories: For hematology and microbiology analysis with group visualization.

• Higher Education Centers: Allows multiple students to view the sample on screen simultaneously without straining their eyes on eyepieces.

• Veterinary Research: Quick capture and transmission of images for telemedicine.

Operational Recommendation: To fully take advantage of the 4K resolution, it is recommended to use high-speed USB storage or the HDMI output for critical viewing on large-format monitors.

Technical Specifications
