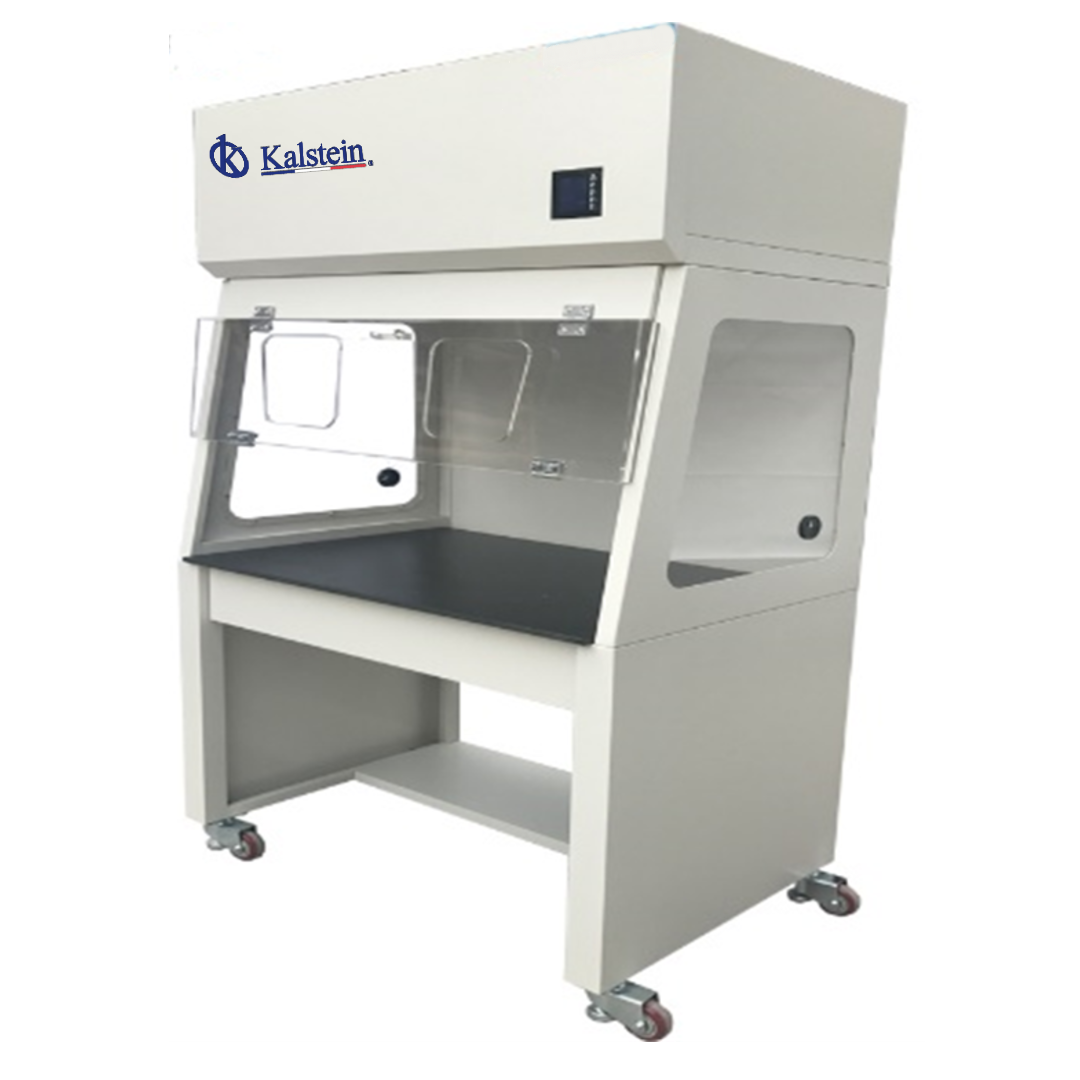

The High-Performance Ductless Fume Hood
YR06566 // YR06568 is an advanced laboratory solution designed to ensure a safe and controlled working environment with top-tier filtration capabilities.The body structure is constructed from a cold-rolled steel plate (1.0 mm) thick. This plate undergoes a pickling process and is coated with an epoxy resin powder paint, which provides excellent anti-corrosive resistance to acids and alkalis. The work surface utilizes a solid physiochemical board (12.7 mm), which is also anti-corrosive. The front folding window and the side windows (8 mm thick) are made of acrylic. Airflow control is managed via an LCD Touch Screen that allows air flow adjustment across (3 levels).
Filtration and Frequently Asked Questions
The purification system integrates three levels of essential filtration: Pre-Filter, HEPA Filter, and Carbon Filter, achieving an effective filtration rate of up to (99.9%). A key safety feature is the LCD touch screen, which displays the filter saturation level. Users are alerted with audible and visual alarms when saturation reaches (80%), notifying them that the filter needs replacement. For illumination and sterilization, the unit includes a UV disinfection lamp X(1) and a (10 W) LED lamp X(1) (both waterproof, anti-corrosive, and anti-oxidation). Setup requires on-site assembly, as the product is supplied in an all knock-down packing format, with hard carton and wooden packaging.
Advantages and Disadvantages
Advantages:
- Top-Level Filtration: Effective filtration rate of (99.9%) (an upgrade from the previous (98%)).
- Smart Control: LCD Touch Screen with (3 levels) of airflow adjustment.
- Enhanced Safety: Filter saturation alert at (80%) and built-in current overload protection.
- Robust Design: (8 mm) thick acrylic side windows and high-grade anti-corrosive materials.
- Additional sterilization with UV and LED lamps.
Disadvantages:
- The (99.9%) filtration rate is slightly lower than the H14 standard of (99.997%) required for certain ultra-sensitive environments.
- Requires periodic replacement of all three filter types and the UV lamps.
- The model operates on a single voltage: (220 V/50 HZ).
- Relatively high price for equipment that requires on-site assembly.
Product Use in the Field
The laboratory cabinet is highly valuable across diverse institutions, including laboratories, universities, advanced study centers, and specialized Research and Development facilities. Its advanced triple filtration system with (99.9%) efficiency makes it ideal for the safe handling of chemical fumes and solvents. The LCD touch screen allows users to precisely adjust the airflow in (3 levels), adapting to complex analysis and synthesis processes, and ensuring a safe, stable environment for students and researchers.
Recommendations
Actively monitor the LCD display for filter saturation and change all three filters as soon as the (80%) alarm is triggered to maintain the (99.9%) efficiency. Clean surfaces with products designed for steel to prevent corrosion and wear. Regularly check UV lamps and replace them according to the manufacturer’s guidelines to ensure effective disinfection. Verify the current overload protection before operation.
Technical Specifications
| Model |
Internal Dims (mm) |
External Dims(mm) |
Package Size(cm) Wooden Package L*W*H |
Package Weight KG |
| YR06566 |
920*600*700 |
1000*650*1900 |
116*88*120 |
180kg |
| YR06567 |
1120*600*700 |
1200*650*1900 |
130*88*120 |
220kg |
| YR06568 |
1420*600*700 |
1500*650*1900 |
160*88*120 |
240kg |
| TECHNICAL PARAMETERS FOR ALL MODELS |
| Filter: Pre-filter, HEPA filter and carbon filter, with an effective filtration rate of up to 99.9% |
| LCD touchscreen with 3 airflow adjustment levels |
| Waterproof, anti-corrosive, anti-oxidation |
| Operating voltage: 220 V/50 Hz |
| Cold-rolled steel, 1.0 mm thick |
| Detachable packaging with hard cardboard box and wooden box. |
