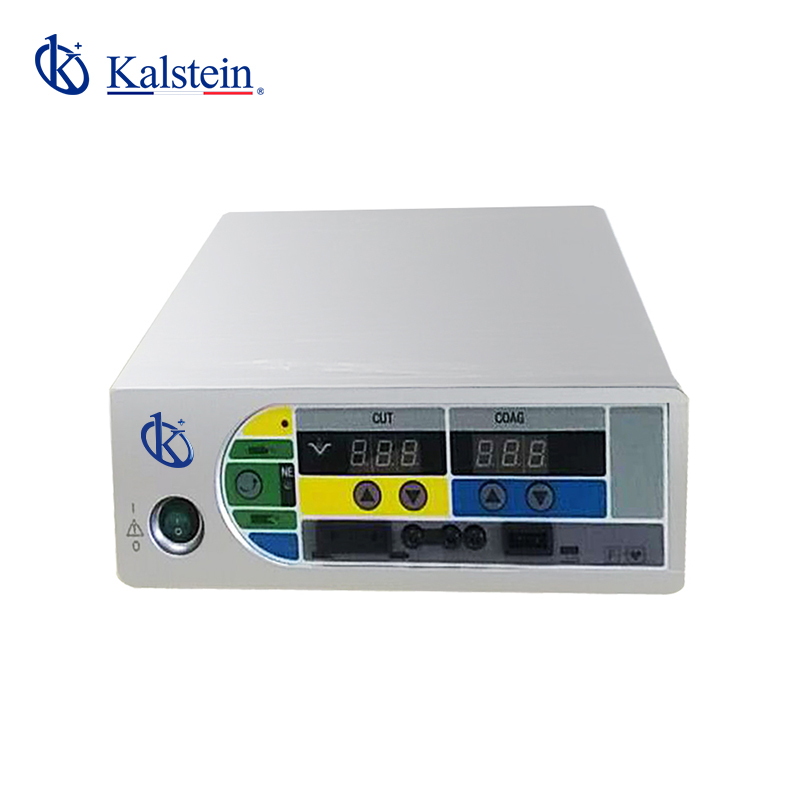

Electrosurgical Generators YR02144

Manufacturer: Kalstein

Manufacturer: Kalstein

Product Description

Electrosurgical generator combines versatility and safety, for all general electrosurgical procedures such as cutting and coagulation in clinics, offices and emergency rooms. YR electrosurgical generator offers a maximum power output of 400 watts.

  • 7 monopolar and 3 bipolar outputs are available.
  • The electrosurgical generator ensures smooth cutting through all types of tissue.
  • It realizes automatic recognition of return electrode, whether solid or spilt.
  • It offers automatic current monitoring and program memory functions.
  • The argon module is optional for enhanced cutting and coagulation.
  • Optional adaptor for laparoscopy and thoracoscopy application.
  • The electrosurgical generator has an easy to use interface.
  • It features isolated output, all floating.
Application

YR well combines safety and effectiveness for a broad range of electrosurgical needs, such as General surgery, Cardiology, ENT surgery, Gastroenterology, Gynaecology, Laparoscopy, Neuro surgery, Plastic surgery, Thoracic surgery and Urology.

Model YR02144
Monopolar
Cutting mode Max. Output power (watts) Load (ohms) Open circuit Vp-p Crest factor
Pure 400 watts 500 Ω 2,300v Sun May 01 2022 00:00:00 GMT + 0200 (Central European Summer Time)
Mix 1 300 watts 500 Ω 2,700v Sun Jan 02 2022 00:00:00 GMT + 0100 (Central European Standard Time)
Mix 2 200 watts 500 Ω 3,200v Mon May 02 2022 00:00:00 GMT + 0200 (Central European Summer Time)
Mix 3 150 watts 500 Ω 3,700 v Mon Jan 03 2022 00:00:00 GMT + 0100 (Central European Standard Time)
Coagulation mode
Point 120 watts 500 Ω 5,600v Thu Jan 06 2022 00:00:00 GMT + 0100 (Central European Standard Time)
Gentle 120 watts 500 Ω 3,400 v Thu Jan 06 2022 00:00:00 GMT + 0100 (Central European Standard Time)
Spray 120 watts 500 Ω 8,500 v Tue Mar 08 2022 00:00:00 GMT + 0100 (Central European Standard Time)
Bipolar
Cutting mode
Standard 70 watts 200 Ω 1,450v Sun May 01 2022 00:00:00 GMT + 0200 (Central European Summer Time)
Coagulation mode
Standard 70 watts 500 Ω 240v Sun May 01 2022 00:00:00 GMT + 0200 (Central European Summer Time)
Precise 70 watts 200 Ω 360v Sun May 01 2022 00:00:00 GMT + 0200 (Central European Summer Time)
Connecting accessories and supplies
Finger pencil two
Foot switch pencil one
Patient return electrode one
Foot switch one
Ac power supply one
Potential equalization one
Power characteristic
Rate frequency 512 kHz (110 / 240vAC, 60 / 50Hz)
Isolated output YES
Quantitative visualization of the contact area YES, for the «Split» type of neutral electrode
Contact area indicator lamp 10 lamps (one for 10% contact), alarm beep and flash if contact <20%
Definition of Solid / Split Neutral Electrode YES, the ‘Split’ or ‘Solid’ indicator light comes on
Adjustable alarm volume YES
Operating duty cycle 10 seconds ON, 30 seconds OFF
Cooling method Convection
Regulation
Type According to EN 60601-1 CF
Protection class according to EN 60601-1 class I
Classification acc. According to MDD 93/42 / EEC IIb
Physical
Dimension (WxDxH) 460 x 410 x 160 mm
Weight 11.2 kg
