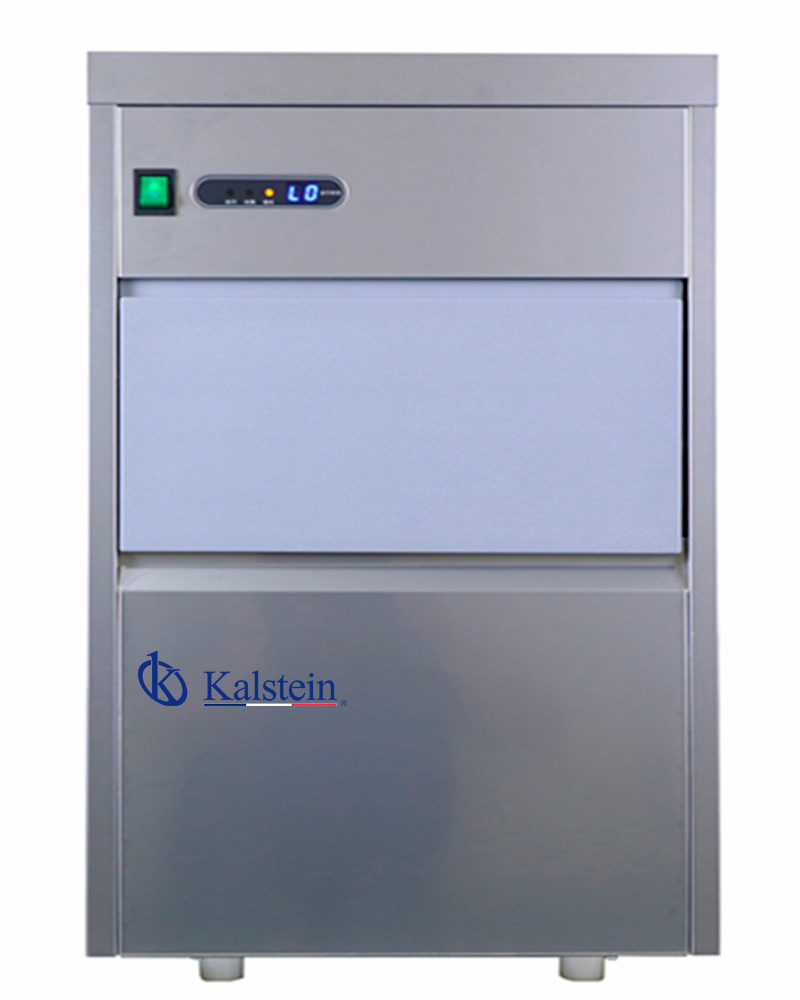

High Quality Shaved Ice Machine For Laboratory YR05132 // YR05133

Manufacturer: Kalstein

Description

For fruit and fresh foods, Ice Flakes makes all the difference. It looks good, thanks to its versatility, and tastes good, thanks to its freshness.

  • High-quality stainless steel is used anti-corrosion and durable. The compact structure is simple and saves space.
  • The cabinet is filled with fluorine-free thermal foam with good insulation effect. The inner lining is food grade plastic. They save energy and are respectful with the environment.
  • World famous brand CFC-free R134a compressors are used. The main parts and components have passed the relevant safety certifications. The product has stable quality and long service life.
  • The ice making process is fully computer controlled, using imported computer chips to make the control reliable and easy to operate.
  • Advanced technologies and imported accessories make low noise, smooth and reliable operation. The vents and fans are deployed to ensure that the geared motor operates reliably.
  • The patented technology of the separate evaporator chip ice chamber line provides high cooling efficiency and large ice making capacity.
  • Screw extrusion hob style ice making type makes compact structure and automatic water ice separation. The optimal design of the skate blade makes the ice shape small and practical.
  • Unique float type water inlet system ensures no residual water. no need for an ice cleaning process or wasted water, saving water and energy.
  • Fully automatic operation with full ice screen, water shortage screen, operation screen and malfunction warning screen, etc. For power-off protection. They will stop automatically in case of ice or water shortage and start automatically when the ice is not full or the water supply is restored.
  • Flake ice cools faster than other forms of ice, which can infiltrate a narrow space, with fast cooling speed, good ice bath effect.
  • Long-term performance testing and electrical safety testing will be conducted before shipment, ensuring excellent product performance.
Technical characteristics
Model YR05132 YR05133
Ice Making Capacity 40 Kg / 24 h 50 Kg / 24 h
Ice Storage 15 Kg
Voltage 220 V/50Hz o 110 V/60 HZ (you have to pay an additional charge)
Power 360 W 380 W
Cooling Type Air cooling
Refrigerant R134a
Water Supply Tap water
Net Weight (Kg) 36
Gross Weight (Kg) 39
Product Dimension 400 x 540 x 700mm
Packaging Dimension 470 x 610 x 750mm
Stuffing Qty
20’GP 135
40’GP 285
40’HQ 285

Additional information

Weight 55,00 kg
Dimensions 53 × 67 × 87 cm
Model

YR05132, YR05133
