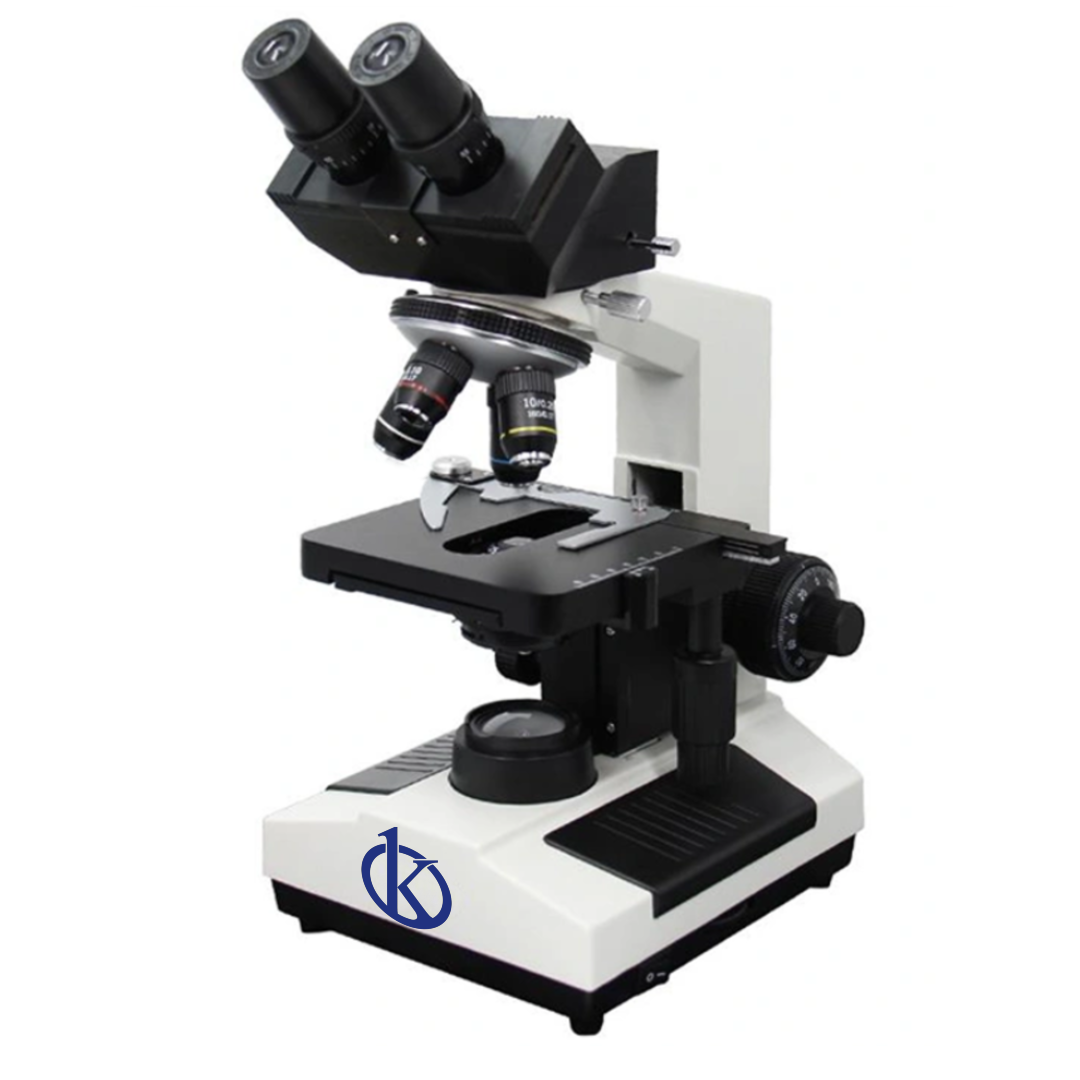

Laboratory Biological Microscope YR06666

The YR06666 is a high-precision laboratory biological microscope designed to meet the rigorous demands of clinical diagnostics and educational environments. This versatile instrument is available in monocular, binocular, or trinocular configurations, making it adaptable to any professional or academic requirement. It is the preferred tool for medical students, biologists, and laboratory technicians who need a robust device with superior achromatic optics. Its adjustable LED illumination system ensures bright, high-contrast images at magnifications of up to 1600x.

 Design and Technology (Functionality)

This microscope incorporates advanced technical features to enhance accuracy and ease of use in daily work:

• Achromatic Optical System: Equipped with 4x, 10x, 40x (S), and 100x (S, Oil) objectives that significantly reduce chromatic aberrations.
• Sliding Binocular Head: Inclined at 45° with 360° rotation, offering an ergonomic working posture with an interpupillary adjustment of 55-75 mm.
• Double Layer Mechanical Stage: 140x140 mm surface with a 50x75 mm travel range, allowing for precise and smooth movement of specimens.
• Low-Position Coaxial Focusing: Features both coarse and fine focusing knobs with a sensitivity of 0.002 mm and tension adjustment to prevent stage drifting.
• 3W LED Illumination: Provides a cool white light with adjustable brightness, preventing sample overheating during extended observation sessions.

Frequently Asked Questions (FAQ)

Can I connect a camera for digital imaging? Yes, the trinocular models (A11.1007-17T/27T) are specifically designed for this, featuring a C-mount and digital eyepiece adapters for real-time image output. What kind of packaging is used for shipping? The standard unit comes in a carton box with custom-fitted foam protection. A professional wooden box option is also available for maximum security during transport. How do I maintain the 100x objective? Since it is an oil immersion lens, it is crucial to clean the lens with optical paper and an appropriate solvent after every use to prevent the oil from hardening and damaging the optics.

Advantages and Disadvantages

Advantages:

• High Optical Resolution: Clear and sharp images up to 1600x magnification.
• Durable Construction: Stable metal body that effectively minimizes vibrations.
• Ergonomic Design: Coaxial focusing and stage controls are positioned for maximum comfort.
• Upgrade Ready: Compatible with phase contrast, dark field, and simple polarization kits.

Disadvantages:

• Weight: At 5.0 kg (net weight), it is sturdier but less portable than basic plastic student models.
• Power Requirement: Requires a steady electrical connection for the LED illumination.

Field Use and Recommendations

The YR06666 is ideal for clinical laboratories, secondary schools, and universities. It is highly recommended for cell counting, bacterial observation, blood analysis, and histological sectioning. Professional Tip: To extend the life of the focusing system, always use the stage’s upper limit stopper to prevent the objectives from making contact with the slide, especially when using the 100x oil objective.

Technical Specifications
