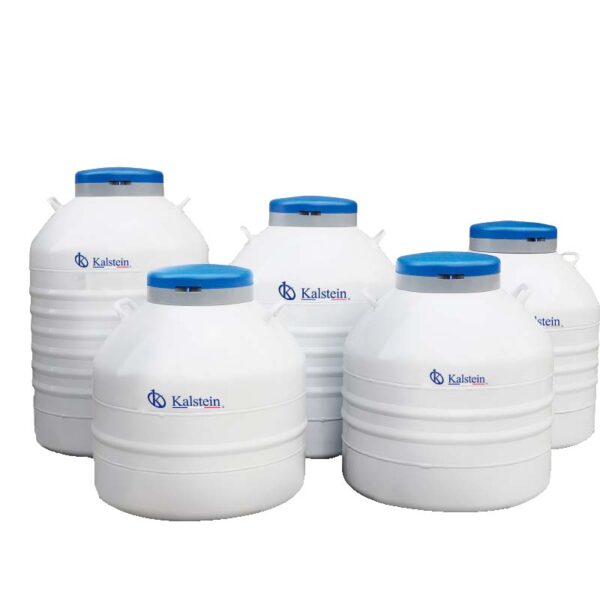

Medical Medium Sized Storage Series YR053296-7 // YR053299

Manufacturer:Β Kalstein

Manufacturer:Β Kalstein

Product Description

Medium Sized Storage Series (Square Racks) features low LN2 consumption and relatively small footprint for medium capacity sample storage.

  • ULT Storage with Extremely Low LN2 Evapouration Loss
  • Advanced Vacuum Technology and Superinsulation Technology
  • Compatible for Blood Bag Storage
Key Features
  • Heavy duty lockable enclosure offers excellent security
  • Compatible with all major cryobox brands
  • Durable aluminium construction
Temperature monitoring available
  • Liquid or vapour phase option available
  • High thermal eff iciency
  • 5 year vacuum warranty
  • Ultra-low evapouration loss
Product Advantages
  • ULT Storage with Extremely Low LN Evapouration Loss
    Freezer racks are in the ultra-low temperature environment with extremely low LN2 evapouration. Even stored in vapour phase, the temperature will be below -190Β°C for a long time.
  • Advanced Vacuum Technologyand Superinsulation Technology
    Advanced vacuum and insulation technologies ensure cryopreser-vation for up to four months
  • Compatible for Blood Bag Storage
    Suitable for blood bag applications, the racks can be adapted to provide temporary blood bag storage before transferring bags to larger LN2 storage tanks.
Product Features
  • Durable Aluminum Construction
  • Compatible with All Major Cryogenic Box Brands
  • Large Opening Diameter and Large Capacity
  • Ultra-Low Evaporation Loss
  • 65 Litre to 175 Litre Capacity
  • 5 Year Vacuum Warranty
Technical Specifications
Model YR053296-7 YR053296-8 YR053296-9 YR053297 YR053298 YR053299
Maximum Storage Volume
2ml Storage Vials (100/box) 4800 6000
Layers in Rack 8 10
5ml Storage Vials (81/box) 1944 2430
Layers in Rack 4 5
Function
Liquid Nitrogen Volume (L) 145 175
Static Evapouration Rate* (%/d) 0.94 0.94
Static Holding Time** (Day) 154 186
Dimensions
Neck Opening (mm) 216 216 216
Overall Height (mm) 946 1060 1060
Overall Diameter (mm) 681 681 681
Empty Weight (kg) 49.9 48.9 54.8 53.8
Full Weight (kg) 158.9 157.3 199.5 198.5
Shipping Weight (kg) 82.1 80.1 91.3 89.2
Aditional Features Includes 6 racks for 5ml,
4 layers in total, 24pcs of 5ml 9*9
cryo boxes and lockable cap included,
no PU bag, roller base is optional
Includes 6 racks (8 layers),
9*9 cryoboxes, lockable cap,
no protective jacket,
roller base is optional
Includes lockable cap,
no rack,
no protective jacket
Includes 6 racks for 5ml,
5 layers in total,
30pcs of 5ml 9*9 cryo boxes and
lockable cap included,
no protective jacket,
roller base is optional
Includes 6 racks (10 layers),
9*9 cryoboxes,
lockable cap,
no protective jacket,
roller base is optional
Includes lockable cap,
no rack,
no protective jacket

Additional Information

Model

YR053296-7, YR053296-8, YR053296-9, YR053297, YR053298, YR053299
