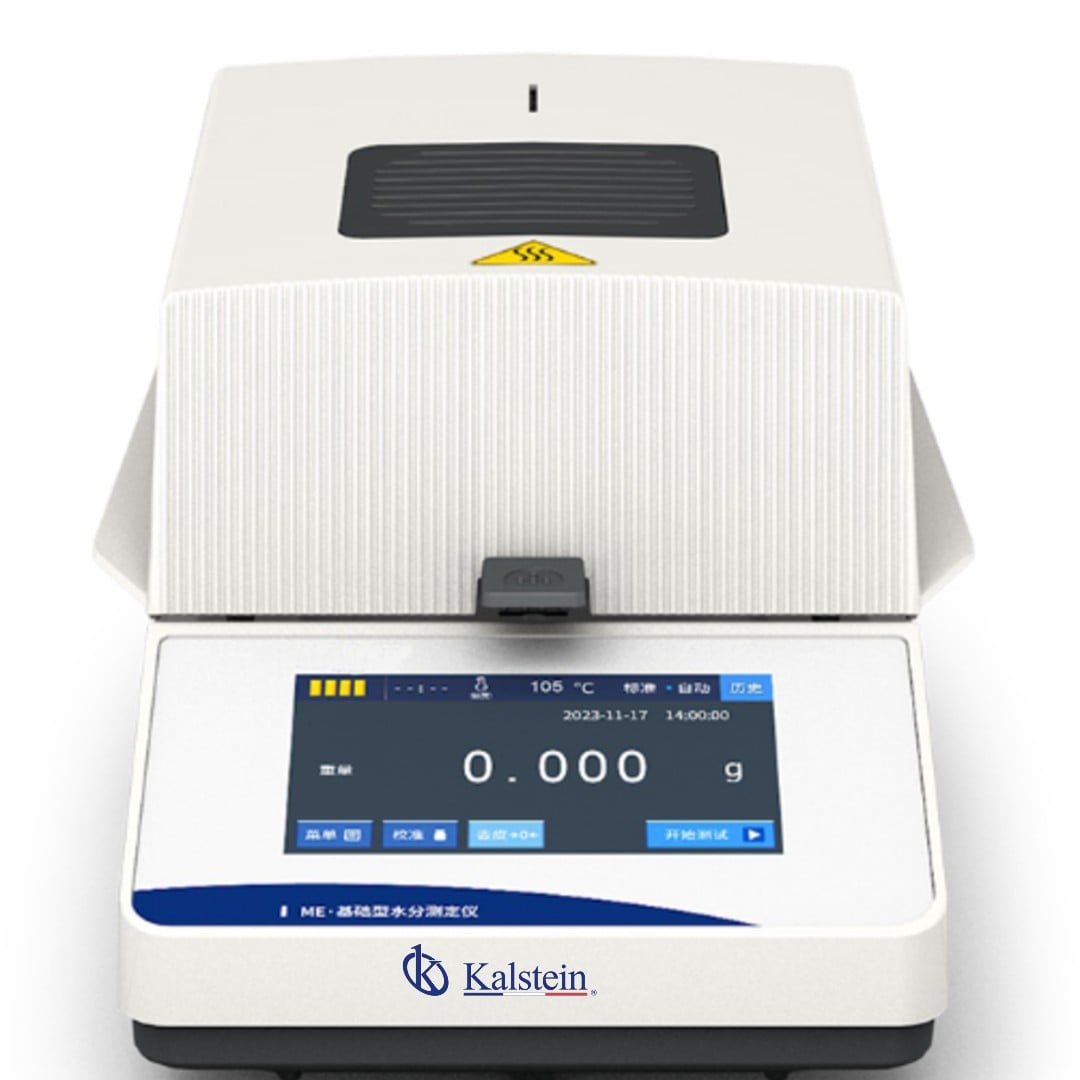

The YR06696 is a precision instrument specifically engineered for laboratories and industrial facilities that require fast and reliable moisture content determination. Featuring a state-of-the-art halogen lamp as its heating source, this equipment delivers uniform drying and reproducible results in just minutes.
Ideal for the food, pharmaceutical, chemical, and agricultural sectors, the YR06696 stands out due to its
5-inch touchscreen interface, which simplifies operation and allows users to visualize the drying process through real-time analysis curves. It is the perfect solution for quality control environments where a 0.1% moisture readability is essential.
Design and Technology (or Functionality)
The YR06696 integrates high-end technology to optimize thermogravimetric analysis:
- 5-Inch Touchscreen: An intuitive interface that allows for quick configuration and clear data visualization.
- Halogen Heat Source: Uses a high-efficiency halogen lamp for rapid heating and constant thermal distribution across the sample.
- Real-Time Test Curve: Enables monitoring of the weight loss and moisture dynamics throughout the entire drying process.
- Versatile Testing Modes: Includes Standard, Fast, and Gentle drying modes, along with Automatic, Manual, or Timed stop options.
- Data Management: Internal storage for up to 20 groups of test methods and a historical test report function for easy tracking.
- Silent Fast Cooling: Features a high-speed, silent cooling fan to reduce downtime between measurements.
Frequently Asked Questions (FAQ)
- What is the maximum sample capacity for this model? The YR06696 model supports samples weighing up to 110 grams.
- Can the drying temperature be customized? Yes, the temperature range is 40°C to 160°C, adjustable in 1°C increments to accommodate different material requirements.
- How are test results stored? The device stores up to 20 different testing methods in its memory and maintains a historical report log that can be viewed directly on the touchscreen.
Advantages and Disadvantages
Advantages:
- Modern Interface: The touchscreen simplifies navigation and reduces the risk of operational errors.
- Visual Monitoring: The real-time dynamic curve provides immediate insight into the sample's behavior.
- Quiet Operation: The ventilation system is designed to operate silently, maintaining a quiet laboratory environment.
- Global Compatibility: Adaptable input voltage (110V or 220V) allows for easy installation worldwide.
Disadvantages:
- Environmental Sensitivity: As a precision instrument, it requires a stable surface free from vibrations and air drafts for accurate results.
- Precision Level: This specific model has a moisture readability of 0.1%; for applications requiring ultra-high precision.
Field Use and Recommendations
This equipment is highly recommended for
veterinary clinics (feed analysis), food processing plants, plastic quality control labs, and compounding pharmacies.
Practical Tip: For maximum accuracy, spread the sample evenly across the 96 mm pan. Ensure the PT-100-2 temperature sensor remains clean to prevent inaccurate readings, and always perform a calibration before critical testing sessions.
Technical Specifications
| Parameter |
characteristics |
| Model |
YR06696 |
| Max Capacity |
110 g |
| Readability (Weight) |
0.01 g |
| Weight Sensor |
Load Cell (HBM) |
| Heat Source |
Halogen Lamp |
| Temperature Range |
40°C - 160°C (1°C increments) |
| Moisture Range |
90.00% - 10.00% |
| Moisture Readability |
0.1% |
| Display |
5-inch Touchscreen |
| Pan Size |
96 mm |
| Storage |
20 Memory Groups |
| Analysis Curve |
Real-time dynamic curve |
| Testing Height |
30 mm |
| Power Supply |
220V 50Hz / 110V 60Hz |
| Instrument Dimension |
33,6 x 21,4 x 16,6 cm |
| Packaging Size |
41,5 x 31,0 x 25,5 cm |
| Net Weight |
3.5 kg |
| Gross Weight |
4.0 kg |
