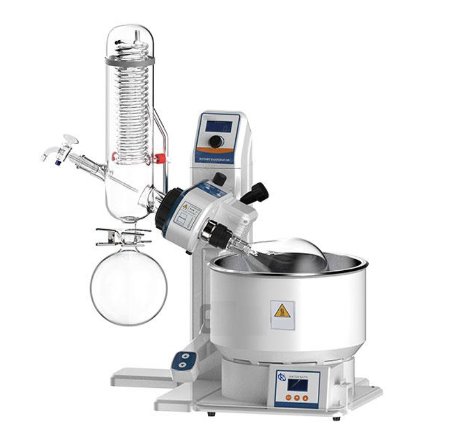

Product Description
It is suitable for experiment of evaporation, distillation or separation of chemicals. It usually works with water circulating vacuum pump and recirculating chiller as a whole system to meet the production and experimental requirements.
Advantages
- Patented technology of double sealing of Teflon(PTFE) AND FV rubber can ensure the negative pressure level.
- Wide power supply range of main machine from 100V to 240V～，50/60Hz.
- PID controller ensures precise temperature control.
- Patented designed structure, the tilt angle of the evaporating flask is adjustable.
- Quick lock button on rotation axis makes it easier to be installed or removed.
- Motorized lift keeps lifting more smoothly.
- Synchronous belt drive mechanism can running smoothly, ultra-low noise during rotation process.
- Individual main machine and water bath design for easy future upgrades.
Technical Specifications
| Model | YR02306 | |
| Rotaion Speed | 10~280 rpm | |
| Pressure rise rate of vacuum system | <=0.33kPa/min | |
| Temperature Range | RT+5~95℃ | |
| Temperature Stability | ±1℃ | |
| Temperature Control | Keypad input, digital display | |
| Speed Control | Knob setting, digital display | |
| Lifting | Motorized lift | |
| Lifting Distance | 150mm | |
| Lifting Speed | 10mm/s | |
| Rotary Motor Power | 40W | |
| Heating Power | 1300W | |
| Condensing Area | 0.126m2 | |
| Evaporating Flask | 500ml, 1000ml | |
| Receiving Flask | 1000ml | |
| Vacuum Sealing | Double sealing rings made of Teflon+ Viton materials | |
| Water Bath size ·Capacity | 250×130mm·6.5L | |
|
Evaporating Speed
|
Water | 23ml/min |
| Ethanol | 26ml/min | |
|
Power Supply
|
Main Machine | 100V~240V, 50/60Hz |
| Water Bath | 110V~, 60Hz or 220-240V~, 50/60Hz | |
| Ambient temperature | 5~35℃ | |
| Environment Relative Humidity | <=70 | |
| Protection Class of Shell | IP20 | |
| Pollution Prevention Grade | Grade 2 | |
| Dimensions | 595W*390D*680Hmm | |
|
Net Weight
|
Main Machine | 10KG |
| Water Bath | 3.9KG | |
| The Rotary Evaporator model YR02306 does not include vacuum pump or recirculator, these can be included as required, the models would be YR02301 (Recirculator) + YR05158 (Vacuum Pump), for the complete set. | ||
Additional Information
| Weight | 31 kg |
|---|---|
| Dimensions | 58 × 72 × 61 cm |
