Manufacturer: Kalstein
Equipped with a 2.5 inches LCD screen to give a clear display of standard curves and groups of results.
Can set up various standard curves according to customer ‘s solutions and find the concentration of unknown solutions.
UV-5100 is equipped with imported deuterium lamp which ensures low stray light,photometericaccuracy and is easy to be replaced.
Equipped with USB port to connected with a PC to display spectrum scanning,kinetics and Multi wavelength testing results on the screen.The software is optional
Can display wavelength,absorption and transmittance with 5 results per screen.It also has a memory store of up to 200 results.
Users set wavelength automatically through arrow keys to avoid operation errors.

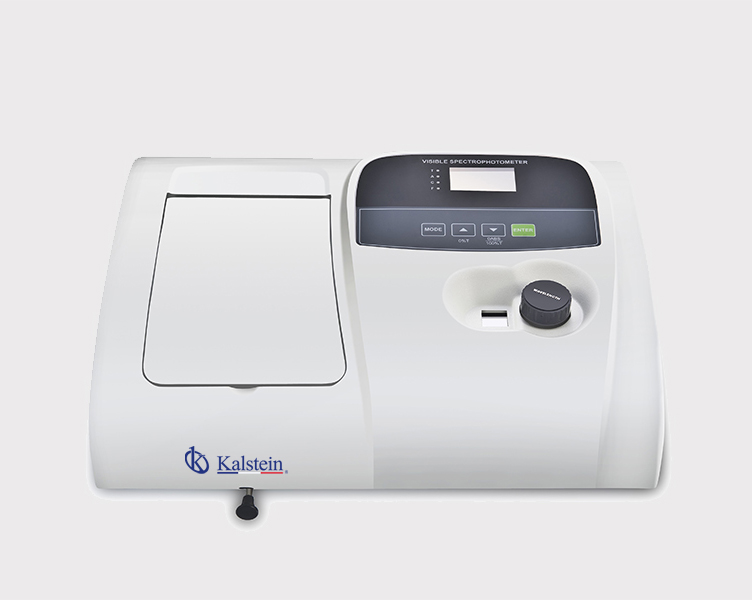

Model | YR01850 |
Optical System | Single beam, Grating 1200 lines/mm |
Wavelength Range | 190-1000nm |
Bandwidth | 2nm |
Wavelength Accuracy | ±2nm |
Wavelength Repeatability | 0.5nm |
Wavelength Setting | Auto |
Photometric Accuracy | ±0.5%T |
Photometric Repeatability | ≤0.2%T |
Photometric Range | -0.3-3A, 0-200%T, 0-9999C |
Photometric Mode | T, A, C, F |
Stray Light | ≤0.1%T |
Stability | ± 0.002A/h @ 500nm |
Display | 128*64 LCD |
Detector | Silicon Photodiode |
Light Source | Tungsten Lamp & Deuterium Lamp |
Output | USB & Parallel Port (Printer) |
Power Requirements | AC 85~250V |
Dimension | 420*280*180mm |
Weight | 11kg |
Item | Description | Quantity | Unit |
1 | Spectrophotometer | 1 | set |
2 | 1cm Glass cuvette | 4 | pcs |
3 | Power cord | 1 | pcs |
4 | User’s Manual | 1 | pcs |
5 | 1cm quartz cuvette | 2 | pcs |
6 | Dust Cover | 1 | pcs |
Weight | 14 kg |
---|
