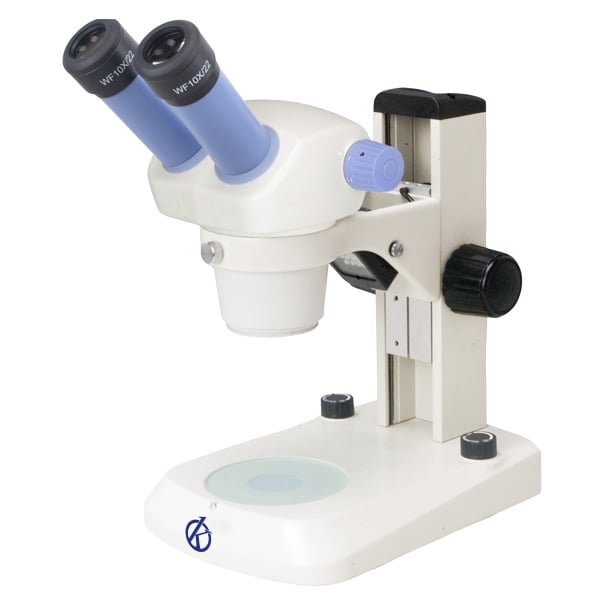

Stereoscopic microscope with zoom, 0.8~5x YR06654

The 0.8x–5.0x YR06654 stereo zoom microscope is a versatile and precise solution for inspection, quality control, education, and technical tasks where high-clarity three-dimensional observation is required. Thanks to its continuous stereo zoom system, it delivers a standard magnification range of 8x to 50x, expandable up to 200x using auxiliary lenses and optional eyepieces, adapting easily to diverse professional needs. Its green optical system, combined with super-widefield WF10x/22 mm eyepieces with adjustable diopter, ensures clear images, visual comfort, and excellent depth perception during extended work sessions. The ergonomic design of the Seidentopf binocular head, featuring 45° inclination and 360° rotation, improves operator posture and facilitates collaborative work. The microscope includes a large rail stand with top and bottom LED illumination, available in square or fan-shaped configurations, providing uniform lighting across the specimen. Additionally, it can be equipped with an optional A56.1522 60-LED ring light, ideal for enhancing illumination on reflective surfaces or fine details. In the market, this type of stereo zoom microscope is positioned within a competitive price range compared to similar models, offering an excellent balance between optical performance, durability, and cost.

Frequently Asked Questions

What applications is this stereo microscope suitable for?

It is ideal for industrial inspection, electronics, jewelry, entomology, educational laboratories, and quality control, where accurate three-dimensional observation is essential.

Can the magnification range be expanded?

Yes, by using 0.5x, 0.7x, and 2.0x auxiliary lenses and optional WF15x or WF20x eyepieces, both magnification and working distance can be increased.

Does it include integrated illumination?

It includes top and bottom LED illumination; additionally, a 60-LED ring light can be integrated for higher lighting intensity.

Advantages and Disadvantages

Advantages:

• Wide continuous zoom range from 0.8x to 5.0x.
• Clear and stable stereoscopic image with excellent depth of field.
• Ergonomic design with tilting head and full rotation.
• Multiple lighting and accessory options for enhanced versatility.

Possible Disadvantages:

• Coarse focus only, which may not be ideal for applications requiring extremely fine focus adjustment.
• Advanced accessories (auxiliary lenses and LED ring light) are optional.

Field Use of the Product

In real-world environments, the YR06654 is widely used at workbenches for inspection of electronic boards, verification of mechanical components, classification of biological samples, and fine assembly tasks. Its Ø 125 mm glass stage plate facilitates specimen handling, while the adjustable focus tension provides stable control during continuous use, even in production lines or teaching laboratories.

Recommendations

To maximize the performance of the stereo zoom microscope, it is recommended to select the appropriate auxiliary lens according to the required working distance and to complement the system with a ring LED light when working on dark or highly detailed surfaces. Keeping the optics clean, properly adjusting the diopter, and storing the equipment in a dust-free environment will extend its service life and ensure optimal results.

Technical Specifications
