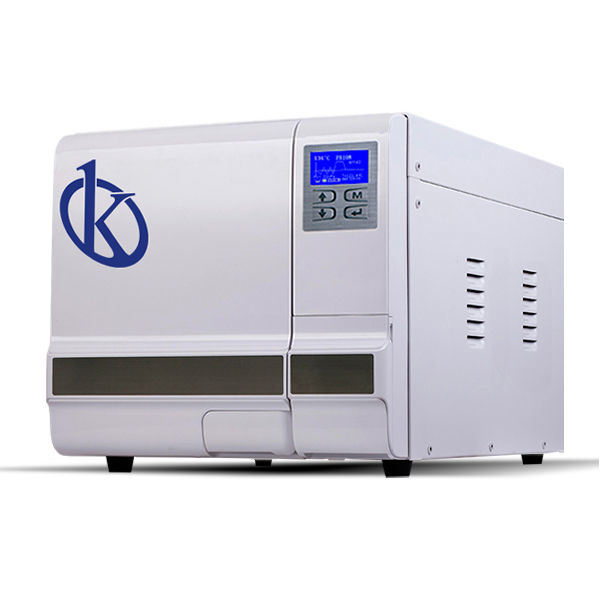

Tabletop Autoclave Class B YR03387 // YR03390

Manufacturer:聽Kalstein

Product Description

Fully automatic tabletop autoclave, triple fractionated pre-vacuum, works with a precision method controlling pressure and temperature. 8 Liter, 12 Liter, 18 Liter and 23 Liter tabletop autoclaves with class B pre-vacuum, complies with the European standard EN13060. These autoclaves require minimal space, being an ideal solution for small businesses such as tattoo, podiatric consultations, beauty salons, veterinarians and laboratories.

Excellent Performance
  • Fully automatic tabletop autoclaves with pre-programmed sterilization cycles.
  • Chamber and door in stainless steel, with electro-polished finish.
  • High precision control system for perfect sterilization results.
  • Independent steam generator, provides enough steam for faster cycles.
  • Friendly interface for the user, it can be easily operated by the user.
  • LCD screen, continuously displays information about the cycle process.
  • Open type water tank, this feature makes it easier to fill water and clean the tank.
Monitoring and Security
  • The cycle will not start unless the door is properly closed.
  • Automated system with double safety locking device, prevents the door from opening while the chamber is pressurized (optional).
  • Safety valves prevent generator and chamber overpressure.
  • A safety thermostat prevents overheating in the chamber and the generator.
  • An automatic safety lock prevents accidental opening of the door during the sterilization process.
  • An electricity protector automatically cuts the power if somewhere you have a short circuit or the power supplier is not very stable.
  • Failure alarm, indicates a cycle failure and details the error code.
  • Door alarm, indicates that the door is not secured.
  • Low water alarm, indicates when the water tank is empty or too full.
Model Number YR03387 YR03388 YR03389 YR03390
Chamber Dimension 脴170×320 mm 脴200×360 mm 脴247×350 mm 脴247×450 mm
Chamber Volume 8 L 12 L 18 L 23 L
Number of Trays 2/ Max. 3 2/ Max. 3 3/ Max. 5 3/ Max. 5
Material of Trays Aluminum Stainless Steel Aluminum Aluminum
Size of Trays. 130x265mm 156x295mm 192x285mm 192x380mm
Voltage Freq. 220/110V 220/110V 220/110V 220/110V
50/60Hz 50/60Hz 50/60Hz 50/60Hz
POWER.r 2000W 2000W 2000W 2200W
Overall Dimension (WxHxD) 420x370x525 mm 420x370x595 mm 490x455x600 mm 490x455x690 mm
Weight 37 kgs 40 kgs 47 kgs 53 kgs
Program Temp. [路C] Pressure [Mpa]
Sterilization time [min.]
SOLID 134 210 4
121 110 20
LIQUID 134 210 10
121 110 30
WRAPPED 134 210 10
121 110 30
TEXTILE 134 210 10
121 110 30
PRION 134 210 18
DRYING 1-20
B&D TEST 134 210 3.5
HELIX TEST 134 210 3.5
VACUUM TEST 15-20

Additional Information

Weight N/A
Dimensions N/A
Model

YR03387, YR03388, YR03389, YR03390
