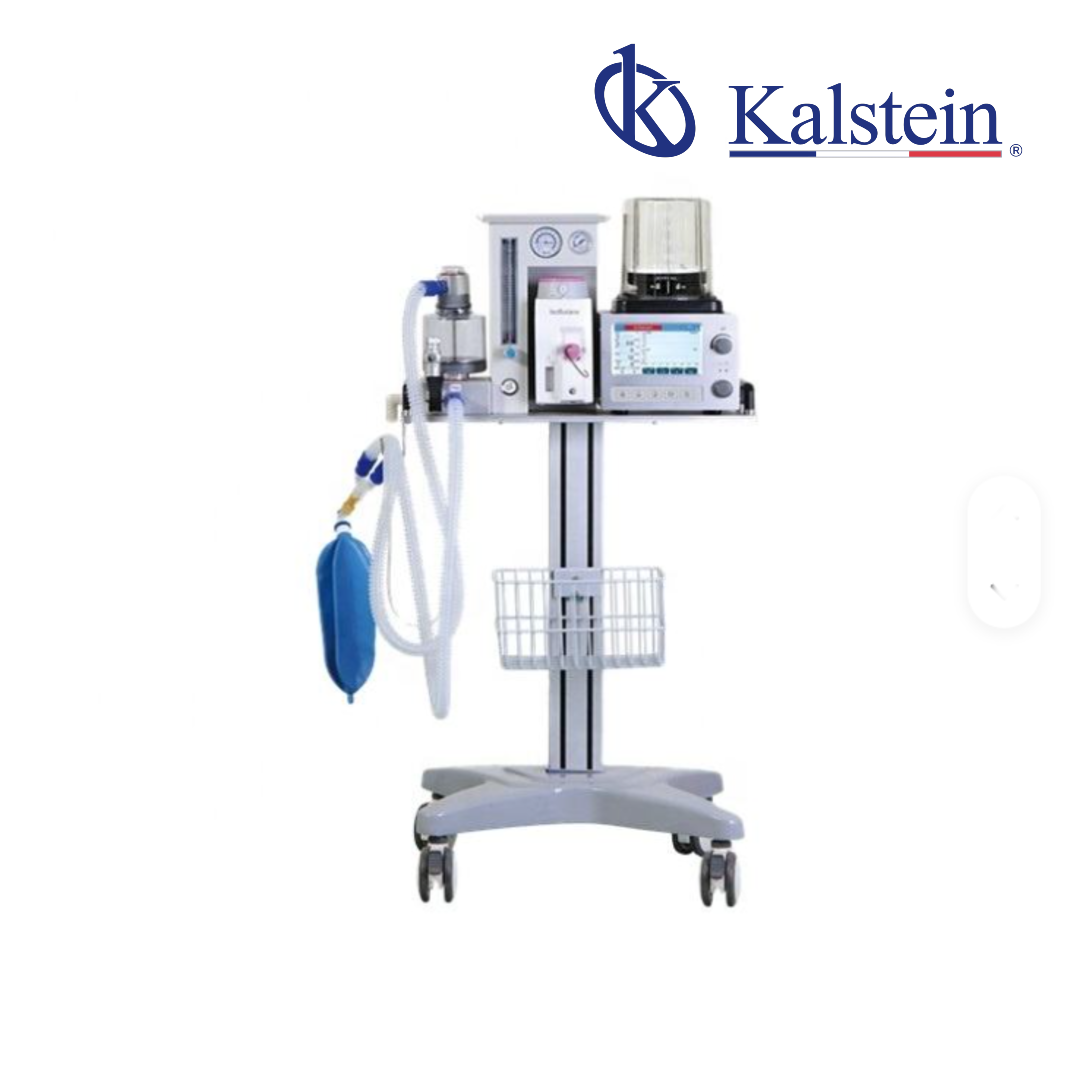

Veterinary Anesthesia System YR06687

The YR06687 Veterinary Anesthesia Machine is an advanced life-support system specifically designed to meet the demands of modern veterinary clinics and hospitals. This equipment stands out for its extreme versatility, allowing safe anesthesia administration to a wide range of species, from small animals to patients weighing up to 200 kg. Featuring a 7-inch TFT LCD screen and an ergonomic design, the YR06687 model provides veterinarians with total control over ventilation parameters and real-time monitoring. It is the ideal solution for surgical centers seeking reliability, gas flow precision, and an organized workspace through its integrated breathing circuit.

Design and Technology (or Functionality)

The YR06687 incorporates technological innovations that prioritize patient stability and ease of use for the operator:

• Advanced Visual Monitoring: 7-inch TFT LCD screen displaying ventilation parameters, alarm information, and waveforms (including Pressure-Time and Flow-Time loops).
• High-Security Vaporization System: Vaporizer with temperature, flow, and pressure compensation, featuring a self-locking function to prevent accidental activation.
• Precision Flow Management: High-precision flowmeter for O2 (0-4L/min) that allows for instant monitoring of fresh gas flow.
• Integrated Circuit Design: A compact breathing circuit design ensures easy operation, maintains order in the operating room, and simplifies cleaning.
• Power Management Technology: Integrated backup power supply that automatically starts working if the external power source fails, ensuring surgical continuity.

Frequently Asked Questions (FAQ)

• What is the weight range for animals using this machine? YR06687 is designed for a broad range of use, including small animals and larger species weighing up to 200 kg.
• Which anesthetic agents can be used? The machine is compatible with high-quality vaporizers for either Isoflurane or Enflurane.
• Does the system include safety alarms? Yes, it features a three-level alarm system with both visual and audible alerts, covering multiple monitoring and protection functions.

Advantages and Disadvantages

Advantages:

• Intuitive Interface: The large 7" screen makes every parameter clear and easy to read at a glance.
• Surgical Versatility: Multiple working modes, such as volume control and pressure limiting, to suit different clinical needs.
• Safety Features: Includes an easily adjustable APL (Pop-off) valve and an O2 Flush port (20L/min - 75L/min) for emergencies.
• Reliability: Built with advanced power management and backed by a 2-year warranty.

Disadvantages:

• Total Weight: The unit has a gross weight of 68 kg, which may require a dedicated cart for transport within the clinic.
• Setup Complexity: While intuitive, the advanced looping and ventilation modes require proper training for optimal use.

Field Use and Recommendations

This machine is highly recommended for high-complexity veterinary hospitals, university research clinics, and specialized surgery centers. Its capacity to handle animals up to 200 kg makes it suitable not only for common pets but also for medium-sized exotic species or young livestock. Pro Tip: Always perform a leak test on the integrated breathing circuit before starting a procedure. Use the real-time pressure-time and flow-time graphs to adjust ventilation precisely to the lung compliance of the specific animal being treated.
