Rotary Evaporator YR02306

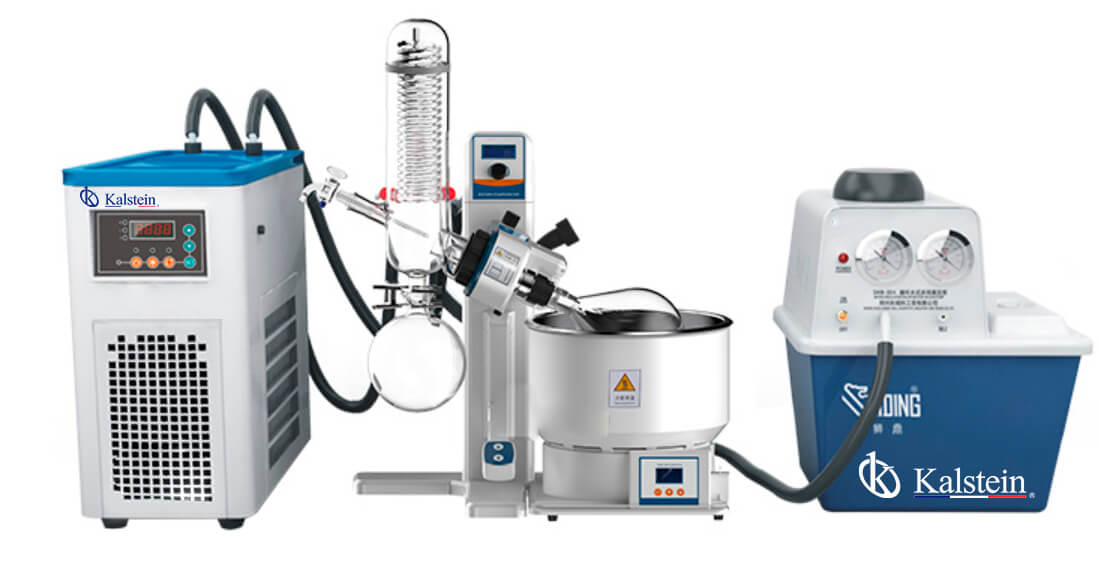

The Rotary Evaporator YR02306 is an indispensable tool for laboratories focusing on the evaporation, distillation, and separation of chemicals. This sophisticated equipment is typically part of a larger system, including a water circulating vacuum pump and a recirculating chiller, to fulfill diverse experimental and production needs. Equipped with cutting-edge technology, it ensures precise temperature control through a PID controller and offers adjustable tilt angles for the evaporating flask, ensuring versatility and efficiency in various applications.
This page provides an overview of the Rotary Evaporator YR02306, including selection criteria, investment factors, operational advantages and maintenance recommendations. The aim is to support an informed decision before requesting a quotation.
This Kalstein model is available for laboratories in United States, with selection criteria adapted to local purchasing, installation and support conditions.
Key factors to consider
Before selecting the Rotary Evaporator YR02306, confirm workflow, available space, required accessories and installation conditions. This prevents oversizing the purchase and helps prepare a more accurate quotation.
The Rotary Evaporator YR02306 is widely used in pharmaceutical and chemical laboratories for concentrated extract formulations. Its adjustable rotation speed of 10 to 280 rpm allows for diverse applications across different industries, while its efficient design makes it suitable for both small-scale laboratory settings and larger industrial productions.
For the market in United States, evaluation should consider local context such as FDA regulation, large hospital networks, biotech hubs and match the product to the real workload of the laboratory.
Market price range
The rotary evaporator market is competitive, with prices ranging based on features and brand reputation. Typically, advanced models like the YR02306 can be found in a price range between 3,300 USD and 4,100 USD. It is advisable to request a quote to explore pricing options tailored to your specific requirements and receive potential discounts.
The final price may vary according to configuration, accessories, logistics, warranty and territorial availability. Compare the technical sheet with the real laboratory workload before confirming the investment.
In United States, budget comparison should include FDA references, 120V/60Hz power conditions, accessories, logistics and after-sales support.
Value for money
One of the main advantages of the Rotary Evaporator YR02306 is its patented technology of double sealing made from Teflon and FV rubber, which guarantees a stable negative pressure level. Additionally, its motorized lift offers smoother lifting operations. On the other hand, a potential disadvantage is the need for additional components like the vacuum pump and recirculator, which are not included by default.
Value for money should be reviewed together with equipment stability, after-sales support, technical documentation and expected service life. A well-matched selection reduces downtime and improves return on investment.
Advantages and disadvantages
The Rotary Evaporator YR02306 is widely used in pharmaceutical and chemical laboratories for concentrated extract formulations. Its adjustable rotation speed of 10 to 280 rpm allows for diverse applications across different industries, while its efficient design makes it suitable for both small-scale laboratory settings and larger industrial productions.
Main advantages include specialized application, integration with laboratory routines and accessory configuration. Limitations may include installation requirements, user training and preventive maintenance to preserve performance.
Expected lifespan based on use and maintenance
To achieve the best performance from the YR02306, it's recommended to regularly check the seals and ensure that the connecting components are properly maintained. Also, utilizing the Kalstein Plus Platform for an automatic quote can assist in securing the components needed for a complete setup, thus enhancing operational efficiency.
Service life depends on usage frequency, cleaning, storage, calibration when applicable and adherence to technical recommendations. A structured maintenance plan helps preserve accuracy, safety and operational continuity.
Support and spare-parts availability oriented to United States helps preserve service continuity and plan preventive maintenance without extended downtime.
Specifications table for the Rotary Evaporator YR02306
Rotary Evaporator YR02306
Es adecuado para experimentos de evaporación, destilación o separación de productos químicos. Suele funcionar con una bomba de vacío de circulación de agua y un refrigerador de recirculación como sistema completo para satisfacer los requisitos de producción y experimentación.
Ventajas
- La tecnología patentada de doble sellado de teflón (PTFE) y caucho FV puede garantizar el nivel de presión negativa.
- Amplio rango de alimentación de la máquina principal de 100V a 240V～，50/60Hz.
- El controlador PID garantiza un control preciso de la temperatura.
- Estructura de diseño patentado, el ángulo de inclinación del matraz de evaporación es ajustable.
- El botón de bloqueo rápido del eje de rotación facilita su instalación o desmontaje.
- El elevador motorizado permite una elevación más suave.
- El mecanismo de transmisión por correa síncrona puede funcionar sin problemas, con muy poco ruido durante el proceso de rotación.
- Diseño individual de la máquina principal y del baño de agua para facilitar futuras actualizaciones.
Especificaciones técnicas
| Model | YR02306 (current) | |
| Rotation Speed | 10~280 rpm | |
| Vacuum System Pressure Rise Rate | <=0.33kPa/min | |
| Temperature | RT+5~95℃ | |
| Thermal Stability | ±1℃ | |
| Temperature Control | Keyboard input, digital display | |
| Speed Control | Button adjustment, digital display | |
| Elevation | Motorized lift | |
| Lift Distance | 150 mm | |
| Lift Speed | 10 mm/s | |
| Rotary Motor Power | 40W | |
| Heating Power | 1300W | |
| Condensation Area | 0.126m2 | |
| Evaporating Flask | 500 ml, 1000 ml | |
| Receiving Flask | 1000 ml | |
| Vacuum Sealing | Double sealing rings made of Teflon+Viton materials | |
| Water Bath Size - Capacity | 250×130mm-6.5L | |
Evaporation Rate | Water | 23 ml/min |
| Ethanol | 26 ml/min | |
Power Supply | Main Machine | 100 V~240 V, 50/60 Hz |
| Water Bath | 110 V~, 60 Hz or 220-240 V~, 50/60 Hz | |
| Ambient Temperature | 5~35℃ | |
| Relative Humidity Environment | <=70 | |
| Enclosure Protection Class | IP20 | |
| Pollution Prevention Degree | Degree 2 | |
| Dimensions | 595W*390D*680Hmm | |
Net Weight | Main Machine | 10KG |
| Water Bath | 3.9KG | |
| The Rotary Evaporator model YR02306 does not include a vacuum pump or recirculator; these can be included as needed, the models would be YR02301 (Recirculator) + YR05158 (Vacuum Pump), for the complete set. | ||
Products related to model YR02306
Frequently Asked Questions about the Rotary Evaporator YR02306
What accessories are required for optimal operation?
The YR02306 does not include a vacuum pump or recirculator. However, these can be added as needed, using the YR02301 (Recirculator) and YR05158 (Vacuum Pump) models.
Is the evaporator energy-efficient?
Yes, it operates with a wide voltage range of 100V to 240V and features a motorized lift and a synchronous belt drive mechanism that ensures ultra-low noise and smooth operation.
How do I choose the right rotary evaporator yr02306 for my laboratory?
Selection should start from workload, critical technical parameters, available space and frequency of use. Kalstein can support the comparison between operational needs, budget and maintenance requirements to avoid choosing equipment that is oversized or insufficient.
What should I review before requesting a quotation?
Review the model, technical specifications, required accessories, electrical conditions, consumables, delivery timing and installation needs. With this information, the quotation can be prepared more accurately and aligned with the laboratory workflow.
Does Kalstein provide guidance for this type of equipment?
Yes. The commercial and technical team can support product evaluation, explain differences between models, answer application questions and advise on preventive maintenance, spare parts and documentation required for a secure purchase.
What maintenance helps extend the equipment lifespan?
Follow the manufacturer manual, perform regular cleaning, verify calibrations or controls when applicable, avoid workload abuse and keep maintenance records. Stable use and preventive routines reduce failures and improve operational continuity.
