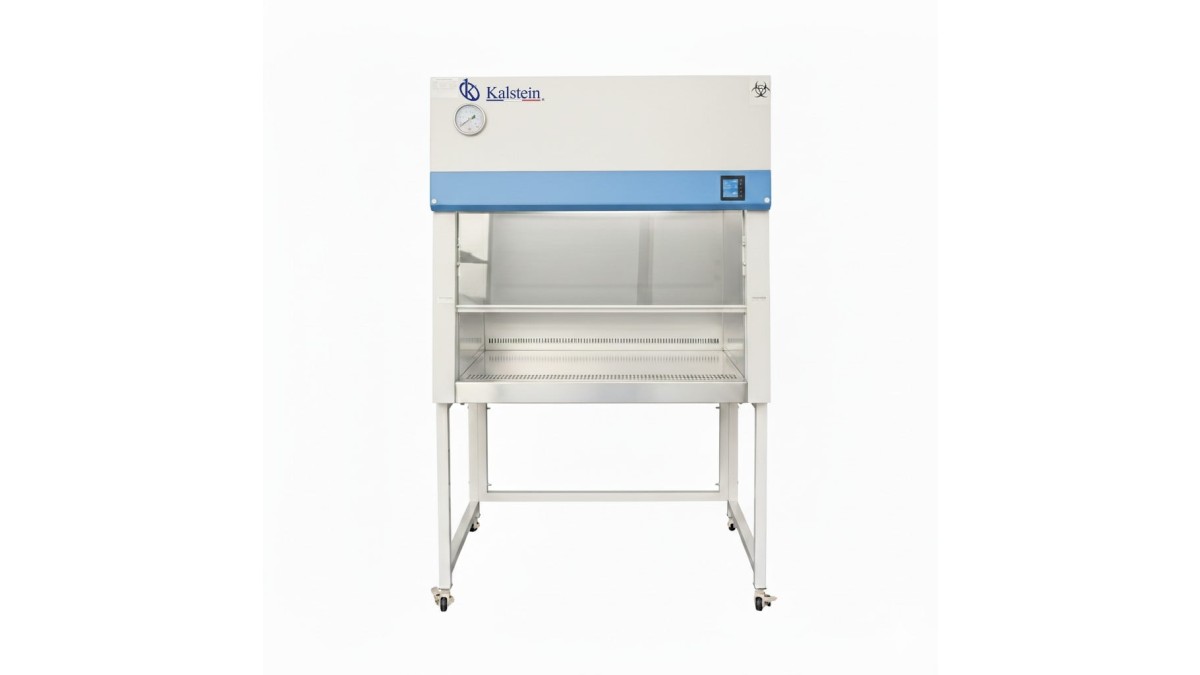

Biological Safety Cabinet YR06539: Quality Control Solution
The Biological Safety Cabinet YR06539 is an advanced solution designed to protect personnel, products, and the environment in laboratory settings. With a negative pressure system, it effectively prevents leaks, ensuring maximum safety during laboratory operations. This cabinet is equipped with a unique air circulation system, utilizing 70% internal recirculation and 30% external discharge, making it highly efficient for various laboratory procedures.
Product Description
The YR06539 model is constructed with high-quality cold-rolled steel, providing excellent durability and resistance to corrosion. The work surface is made of chemical-resistant materials to ensure longevity and reliability in the lab environment. The precision CNC laser cutting and electrostatic epoxy resin coating further enhance the cabinet's robustness and aesthetic appeal.
Featuring an intelligent control system with an LCD touch panel, the YR06539 allows for intuitive monitoring of operational status. The cabinet complies with international standards, specifically ISO14644.1 Class 5 (equivalent to US Federal 209E, Class 100), ensuring a sterile working environment.
| Specification | YR06539 | YR06538 |
|---|---|---|
| Model | YR06539 | YR06538 |
| External Size (mm) | 1100 x 760 x 2250 | 900 x 760 x 2250 |
| Internal Size (mm) | 940 x 600 x 600 | 740 x 600 x 600 |
| Airflow Control Accuracy (m/s) | 0.015 | 0.015 |
| Weight (kg) | 198 | 138 |
| Filtration System | HEPA + ULPA | HEPA |
| Noise Level (dB) | 58 | 60 |
Market Price
The YR06539 Biological Safety Cabinet is competitively priced at USD 1520.00. This pricing reflects the advanced technological features and high-quality materials used in its manufacture. Compared to other models, the YR06539 offers exceptional value, particularly in terms of safety, efficiency, and durability.
Frequently Asked Questions
What is the difference between ULPA and HEPA filters?
The YR06539 model employs ULPA filters, which offer ultra-high efficiency (99.999%), while standard HEPA filters provide high efficiency (99.995%). Both filter types are excellent, but ULPA filters deliver a marginally higher level of purity, making them more suitable for sensitive laboratory applications.
What is the airflow control accuracy of the cabinet?
The airflow control accuracy for the YR06539 cabinet is 0.015 m/s, which ensures stability and uniformity of airflow, maintaining sterility within the working area. This precision is critical for experiments requiring controlled environments.
What sizes are available for the YR06539 model?
The YR06539 model is available in various sizes to fit different laboratory needs. The external dimensions are 1100 x 760 x 2250 mm, and the internal dimensions are 940 x 600 x 600 mm, providing adequate workspace for handling biological materials safely.
What cleaning level does this cabinet guarantee?
The YR06539 guarantees a cleanliness level of ISO14644.1 Class 5 (equivalent to US Federal 209E Class 100), which is a stringent requirement for sensitive environments where contamination control is critical.
What are the environmental requirements for operating the cabinet?
The operating environment for the YR06539 should be maintained between 10-30°C and a relative humidity of less than 70%. These conditions are necessary to ensure optimal performance and reliability of the cabinet.
How does the filtration system work in the YR06539 model?
The YR06539 features a double filtration system that includes external HEPA filters and downflow ULPA/HEPA filters, ensuring up to 99.999% efficiency. This dual system enhances the safety of the user and the environment by effectively capturing airborne contaminants.
Pros and Cons
Advantages:
- Double Filtration: The cabinet utilizes external HEPA filters and ULPA/HEPA downflow filters, guaranteeing up to 99.999% efficiency.
- Superior Safety (Negative Pressure): The negative pressure design prevents leaks, protecting operators and the environment.
- Optimized Design: The air duct design is reasonable, and the negative pressure box is optimized for airflow uniformity.
- High-Performance German Motor: The EBM motor is energy-efficient and optimized for low turbulence, ensuring uniform airflow.
- Durable Construction: Made of corrosion-resistant cold-rolled steel with an epoxy resin surface treatment.
Disadvantages:
- Environmental Requirements: The workspace must be maintained between 10-30°C with relative humidity below 70%.
- Shipping Weight: The shipping weight ranges from 138 kg to 198 kg, which may complicate transportation and installation.
- Flow Limitations: Although it is recirculating (70% internal), the 30% external discharge requires consideration of an exhaust ventilation system.
Field Usage
The Biological Safety Cabinet Class II Type A2 is essential for handling low to moderate risk biological agents, such as viruses, bacteria, and cell cultures that require biosecurity. It is the standard choice in microbiology laboratories, hospitals, and biotechnological and pharmaceutical research centers where product, personnel, and environmental protection is critical. The cabinet's vibration control capacity (average amplitude: 3μm) and stable airflow are vital for sensitive experiments, ensuring reliable results.
Recommendations
To ensure the longevity and maximum safety of the YR06539 Biological Safety Cabinet, it is recommended to:
- Conduct regular maintenance on the filters and check the calibration of the imported sensors.
- Confirm that the working environment meets temperature (10-30°C) and humidity (less than 70%) requirements.
- Periodically verify the inflow velocity (average 0.53 m/s to 0.56 m/s) and the downward airflow velocity (average 0.35 m/s) to maintain effective negative pressure protection.
- Utilize heavy-duty mobile wheels for initial positioning and ensure stability before operation.
