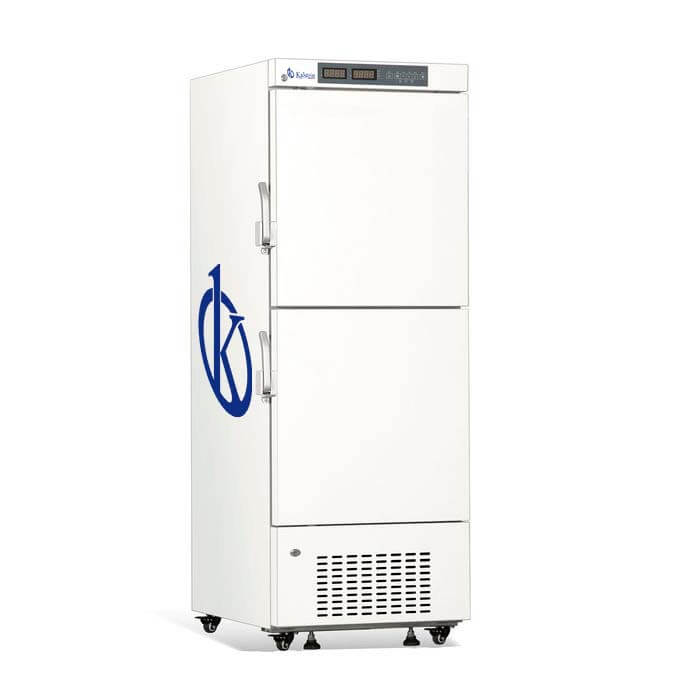

Common Errors and Troubleshooting for the YR05309 Freezer
The YR05309 Medical Supplies Vertical Freezer is a reliable solution for preserving sensitive materials at ultra-low temperatures. However, like any equipment, it may encounter issues that can interrupt its functionality. Understanding the common errors and their troubleshooting methods is essential for maintaining performance and ensuring longevity. This article will guide you through the symptoms, probable causes, and solutions for common errors associated with the YR05309.
Technical Specifications of YR05309
| Specification | Details |
|---|---|
| Model | YR05309 |
| Brand | Kalstein |
| Category | Refrigerator and Freezer |
| Subcategory | Low Temperature Freezer |
| Price (USD) | 1620.00 |
| Net Weight (kg) | 138 |
| Gross Weight (kg) | 178 |
| Dimensions (mm) | 720 x 830 x 1870 |
| Power Consumption (kWh/24h) | 5.5 |
| Noise Level (dB) | 49 |
| Temperature Range (°C) | -20 to -40 |
Troubleshooting by Symptom
When working with the YR05309 freezer, it is crucial to address any errors promptly. Below is a systematic approach to troubleshooting based on common symptoms:
1. High Temperature Alarm
When the freezer triggers a high-temperature alarm, it may be due to several reasons:
- Power failure: Check if there is a power outage or if the unit is properly plugged in.
- Door open: Ensure the door is closed properly to maintain internal temperature.
- Sensor malfunction: Inspect the temperature sensor for damage or disconnection.
To resolve this issue, ensure the door is sealed, check the power supply, and verify the sensor's functionality.
2. Low Temperature Alarm
If the low-temperature alarm is activated, consider the following:
- Faulty thermostat: Inspect and calibrate the thermostat to ensure it is set correctly.
- Insulation failure: Check the integrity of the insulation materials.
Adjust the thermostat settings and inspect insulation for secure sealing to resolve the low-temperature alarm.
3. Error Code Display
Should an error code be displayed on the LED panel, refer to the following table for troubleshooting:
| Error Code | Probable Cause | Solution |
|---|---|---|
| E-01 | Sensor failure | Replace or reconnect the sensor. |
| E-02 | Temperature controller issue | Inspect and replace the controller if necessary. |
| E-03 | Compressor failure | Consult a technician for compressor servicing. |
4. Door Ajar Alarm
An alarm indicating the door is ajar can lead to temperature fluctuations. To fix this issue, check for obstructions preventing the door from closing completely. Also, confirm that the door seal is intact.
5. Power Outage
In the occurrence of a power outage:
- Backup system: Ensure the backup power system is functioning properly.
- Delayed start feature: This feature protects the compressor; wait for it to restart after power restoration.
Monitor the freezer closely after a power outage to ensure normal operation resumes.
Site Requirements for the YR05309
It is essential to consider environmental factors when operating the YR05309 freezer. Here is a checklist for optimal conditions:
| Requirement | Details |
|---|---|
| Temperature Range | 10 to 32 °C ambient |
| Humidity | Maintain low humidity levels to prevent condensation. |
| Voltage/Frequency | 220V/50Hz |
| Ventilation | Adequate space for airflow around the unit. |
Frequently Asked Questions
What should I do if the YR05309 freezer does not power on?
If the YR05309 freezer does not power on, check the power supply, including the outlet and plug. Ensure that the unit is connected to a power source and that there are no tripped breakers. If power supply is confirmed, inspect internal fuses and circuit connections.
How can I reset the error codes on the YR05309?
To reset error codes, first address the underlying issue causing the alarm. Once resolved, power down the unit for a few minutes and then restart it. The error code should clear if the issue has been fixed.
Are there any specific maintenance tips for the YR05309 freezer?
Regular maintenance includes cleaning the condenser coils, inspecting door seals, and checking the temperature sensor calibration. It's recommended to log temperature readings and perform a thorough inspection monthly.
Can I replace the internal components of the YR05309 myself?
While some components can be replaced, it is advisable to consult a technician for replacing major parts such as the compressor or control board to ensure safety and proper functioning.
What accessories can I use with the YR05309 freezer?
The YR05309 freezer is compatible with various accessories such as temperature data loggers, USB recording devices, and internal drawer organizers to enhance functionality and usability.
Conclusion
Understanding and troubleshooting common issues with the YR05309 Medical Supplies Vertical Freezer is vital for maintaining its functionality. By systematically addressing symptoms and employing proper site requirements, operators can ensure efficient use of this critical medical equipment.
