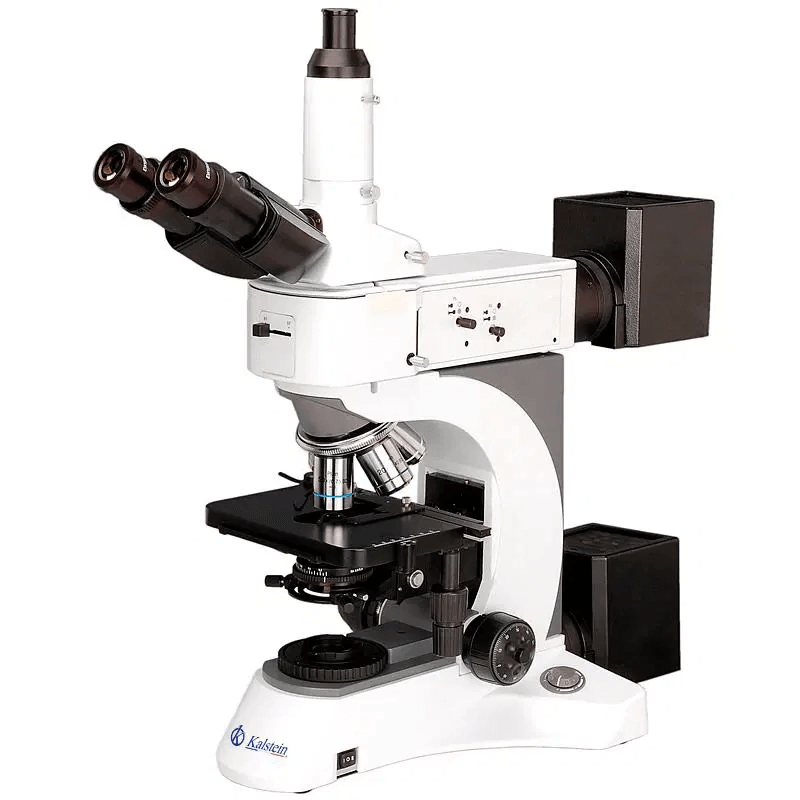

Consumables, Spare Parts, and Compatible Accessories for the YR0251 Microscope
The YR0251 microscope, celebrated for its robust design and high performance, requires specific consumables and accessories to maintain its functionality and extend its lifespan. This article delves deep into the various consumables, spare parts, and accessories compatible with the YR0251, providing vital information to operators and laboratory managers alike.
Technical Specifications of the YR0251 Microscope
| Model | YR0251 (current) | YR0252 | |
| Optical System | Infinite optical system, brightfield/darkfield, polarization | ||
| Head | Trinocular Seidentopf head, 30° inclined, interpupillary distance 48-75 mm | ||
| Eyepiece | Extra wide field eyepiece EW10x/22 mm, eyepiece tube 30 mm diameter | ||
| Objective | Acromatic Infinity Plan objectives 5x/0.12/∞/ – (BF), 10x/0.25/∞/ – (BF/DF), 20x/0.4/∞/0 (BF/DF), 50x/0.75/∞/0 (BF), 100x/0.90/∞/0 (BF) | ||
| Focus | Coaxial coarse and fine adjustment, fine focus precision <1 um, with safety stop and tension adjustment | ||
| Work Stage | Maximum sample height 30 mm, double-layer mechanical stage 186*138 mm, movement range 74*50 mm | ||
| Illumination | 24 V 100 W halogen light, adjustable brightness, Kohler illumination with aspheric condenser | ||
| Accessories | Various compatible objectives, filters, polarizers, and adapters | ||
Essential Consumables for the YR0251 Microscope
To ensure the YR0251 operates at peak performance, using the appropriate consumables is essential. Here is a list of consumables that are compatible with the YR0251:
- Halogen Bulbs: Replacement intervals are typically every 200 hours of use.
- Filter Sets: Include neutral density filters and color filters, recommended replacement every 6-12 months depending on usage.
- Cleaning Supplies: Lens cleaning solution and microfiber cloths to maintain optical clarity.
- Sample Preparation Materials: Coverslips, slides, and mounting media tailored for microscopy.
Spare Parts for the YR0251 Microscope
Regular maintenance of the YR0251 includes replacing worn-out parts. Here are key spare parts that are commonly needed:
- Eyepiece tubes: Replacement may be necessary if eyepiece alignment is compromised.
- Focus knobs: Ensure smooth movement; replacements are necessary if they become loose or damaged.
- Mechanical stage components: Springs, clips, and plate replacements to keep the stage functional.
- Condenser units: Depending on usage, they may require replacement for optimal illumination.
Compatible Accessories for the YR0251 Microscope
The YR0251 microscope can be enhanced with various accessories to maximize its capabilities. Some notable accessories include:
- Camera Adapters: Compatible with Nikon and Canon SLR cameras for imaging.
- Polarizers: Essential for specimens requiring polarized light for better contrast.
- Objective Lenses: Acromatic Infinity Plan 40x/0.6 and 50x/0.75 for enhanced magnification.
- Sample Holders: Various types of sample holders for specific specimen types.
Choosing the Right Consumables and Accessories for Optimal Performance
Operators must assess their needs based on the specific applications and frequency of use of the YR0251. Understanding how different accessories and consumables affect microscope performance is crucial.
For instance, using high-quality filters can significantly enhance image clarity, while ensuring lamp replacements occur on schedule can prevent downtime in laboratory settings. An inventory management system for consumables can help track usage and replacement schedules effectively.
FAQs
What are the replacement intervals for bulbs in the YR0251 microscope?
The halogen bulbs in the YR0251 microscope typically have a replacement interval of around 200 hours of use. Regular checks can help ensure optimal illumination.
What types of filters are compatible with the YR0251?
The YR0251 microscope is compatible with various filters including neutral density filters and color filters, designed for microscopy applications.
How do I maintain the optical components of the YR0251?
Maintaining the optical components involves using appropriate lens cleaning solutions and microfiber cloths to avoid scratches and maintain clarity.
Can I use other objective lenses with the YR0251?
Yes, the YR0251 is compatible with various acromatic Infinity Plan objectives which can be purchased separately for enhanced magnification.
What should I do if the focus knobs on my YR0251 become loose?
If the focus knobs are loose, it is advisable to check for alignment issues and tighten or replace them as necessary to maintain precise adjustments.
Are there specific accessories for different applications of the YR0251?
Yes, the YR0251 supports various accessories tailored to specific applications, such as polarizers for enhanced contrast in biological specimens.
How can I track my consumable usage for the YR0251?
Implementing an inventory management system can help scientifically track usage and schedule replacements for consumables and spare parts, ensuring optimal microscope performance.
