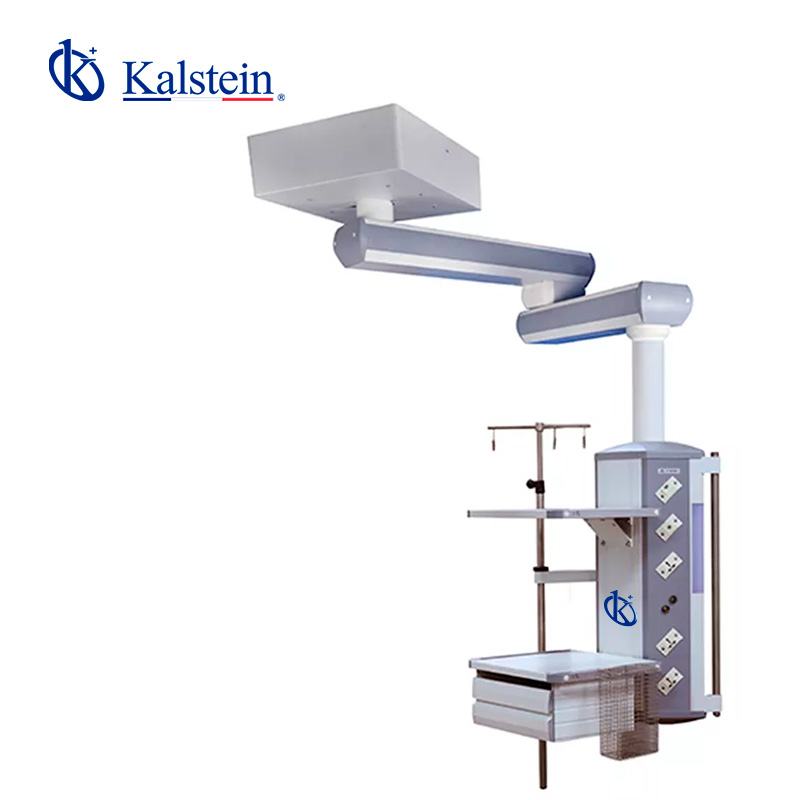

Environmental Conditions and Installation Requirements for the YR02078 Single Arm Endoscopy Pendant
The YR02078 Single Arm Endoscopy Pendant is a cutting-edge piece of equipment designed for use in operating rooms, emergency rooms, intensive care units, and recovery rooms. Its installation demands specific environmental conditions and adherence to precise requirements to ensure optimal performance and safety. This article provides an in-depth look at the conditions necessary for the successful installation and operation of the YR02078, along with detailed technical specifications and commonly asked questions.
Understanding the YR02078: An Overview
The YR02078 is designed with functionality and efficiency in mind. Its ceiling-mounted installation allows for a rotation radius of 1000 mm and a rotation angle of 340°, providing flexibility in positioning for medical staff. Additionally, the pendant includes essential utilities such as oxygen (O2), air, and vacuum suction, all necessary for effective medical procedures.
Technical Data Table for YR02078
| Specification | Details |
|---|---|
| Model | YR02078 |
| Arm Rotating Radius | 1000 mm |
| Arm Rotating Angle | 340° |
| Braking System | Friction brake |
| Maximum Load Capacity | 160 kg |
| Electrical Socket | 2 earth studs |
| Standard Configuration | 1 oxygen (O2), 1 air, 1 vacuum suction (VAC), 10*10A power outlets, 1 network socket, 1 grounding terminal, 1 column length (L=1000 mm), 1 guideway extension arm |
| Accessories | 2 equipment shelves, 1 IV pole & infusion pump rack |
Environmental Conditions for Installation
The environmental conditions in which the YR02078 is installed are critical for its functionality. To maintain optimal performance, consider the following aspects:
- Temperature: The installation area should maintain a temperature range between 18°C to 24°C (65°F to 75°F).
- Humidity: Relative humidity levels should be kept between 40% to 60% to prevent condensation.
- Ventilation: Proper ventilation is essential to maintain air quality and temperature.
- Vibration: The installation site should be free from excessive vibrations that can affect the pendant's performance.
- Electromagnetic Interference (EMI): Avoid areas with high levels of EMI, which can disrupt the pendant's electronic systems.
Installation Requirements for the YR02078
Installing the YR02078 requires careful planning and adherence to specific requirements to ensure safety and functionality:
- Ceiling Structure: The ceiling must be capable of supporting the weight of the pendant, ideally constructed from reinforced materials.
- Power Supply: Ensure that a suitable power supply, compliant with local electrical standards, is available.
- Clearance Space: Maintain adequate clearance around the pendant to allow for rotation and access to utilities.
- Mounting Hardware: Use the provided mounting hardware and ensure that it is installed securely according to the manufacturer's guidelines.
- Testing: Conduct functionality tests post-installation to verify proper operation and safety of the unit.
Common Installation Mistakes
Several common mistakes can occur during the installation of the YR02078, which may hinder its performance:
- Inadequate ceiling support leading to potential hazards.
- Improper alignment of the pendant, affecting operation and access.
- Neglecting to check electrical connections, leading to failures.
- Insufficient clearance space causing difficulties in maneuvering the pendant.
Sector Adaptations for the YR02078
The YR02078 is versatile and can be adapted for various sectors:
Clinical Settings
In clinical environments, the YR02078 is equipped to support various medical devices, enhancing the efficiency of procedures.
Emergency Rooms
Emergency rooms benefit from the quick accessibility of medical gases and electrical outlets offered by the YR02078.
Intensive Care Units
In ICUs, the pendant ensures that critical devices are within reach, aiding in patient care.
Recovery Rooms
In recovery areas, the YR02078 provides essential utilities for post-operative care.
Frequently Asked Questions
What is the maximum load capacity of the YR02078?
The maximum load capacity of the YR02078 is 160 kg, allowing it to support a wide range of medical devices effectively.
How do I ensure proper installation of the YR02078?
To ensure proper installation, verify that the ceiling can support the pendant's weight, ensure all electrical connections are secure, and maintain adequate clearance space around the unit.
What are the optimal environmental conditions for using the YR02078?
The optimal environmental conditions include a temperature range of 18°C to 24°C and humidity levels between 40% to 60%.
Can the YR02078 be used in various clinical settings?
Yes, the YR02078 is designed for use in operating rooms, emergency rooms, intensive care units, and recovery rooms, making it highly versatile.
What maintenance is required for the YR02078?
Regular maintenance checks should include verifying electrical connections, ensuring the ceiling mounts are secure, and checking for any wear on the pendant components.
Are there optional accessories available for the YR02078?
Yes, there are various optional accessories available, including additional equipment shelves and infusion pump racks to enhance the unit's functionality.
