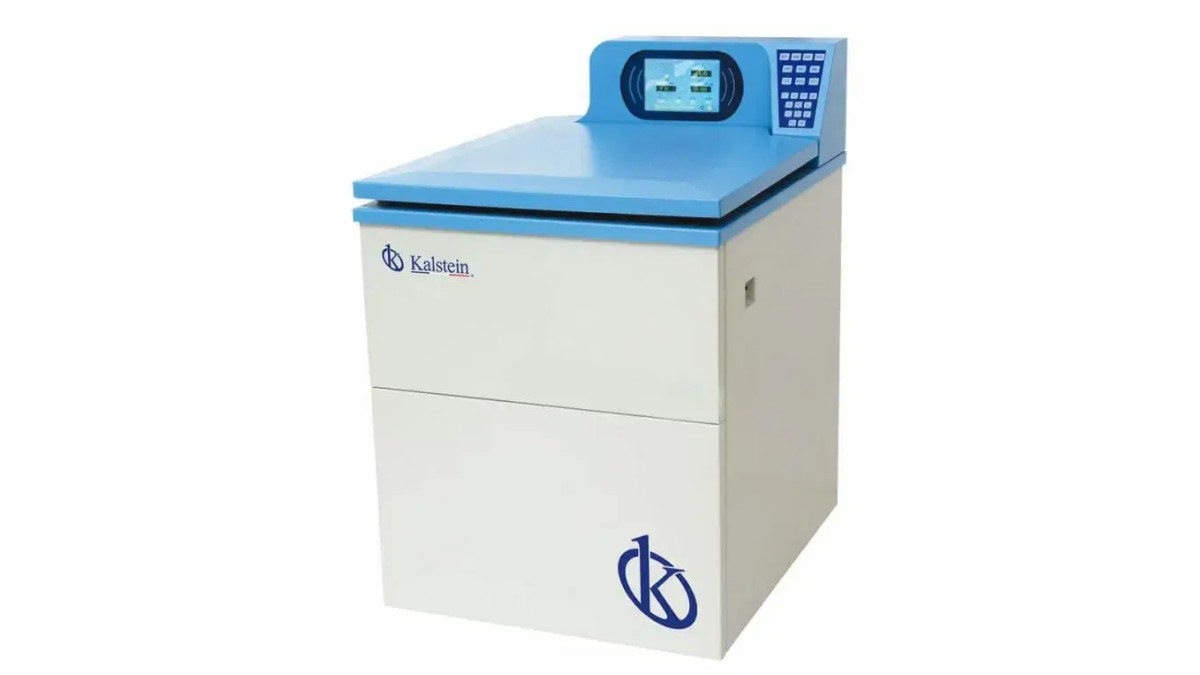

High-Speed Refrigerated Floor-standing Centrifuge YR0111-3: A Technical Overview
The High-Speed Refrigerated Floor-standing Centrifuge YR0111-3 is a high-precision tool designed for laboratories requiring effective particle separation in complex samples. With a maximum speed of 22,000 rpm and a relative centrifugal force (RCF) of up to 52,000 x g, this centrifuge enables detailed analysis in fields such as biotechnology, clinical research, and advanced chemistry.
Product Description
The YR0111-3 features a microcomputer control system combined with a high-torque variable frequency AC motor, ensuring powerful and stable operation. Its imported CFC-free compressor provides adjustable temperature control between -20 °C and +40 °C, safeguarding sensitive samples throughout the process. The LCD or LED display and the touch panel offer an intuitive interface, allowing real-time adjustments of RPM and RCF to optimize each analysis.
| Feature | Specification |
|---|---|
| Model | YR0111-3 |
| Maximum Speed | 22,000 rpm |
| Maximum RCF | 52,000 x g |
| Maximum Capacity | 500 ml x 6 |
| Speed Control Accuracy | ± 50 rpm |
| Temperature Range | -20 ~ +40°C |
| Temperature Accuracy | ±1°C |
| Compressor Unit | French Tecumseh Compressor, R404a |
| Noise Level | <65db (A) |
| Power Supply | 110V / 60Hz, 220V/50 Hz |
| Dimensions (L x W x H) | 710 x 840 x 1,140 mm |
| Net Weight | 280 Kg |
Market Price
The YR0111-3 centrifuge is available in a price range from $19,070 to $20,630 USD, varying according to the supplier and additional configurations. This equipment represents an excellent investment for laboratories seeking precision, safety, and efficiency in their sample separation processes.
Frequently Asked Questions
Is it easy to operate for users without advanced experience?
Yes, the intuitive design of the YR0111-3, featuring a touch screen and programming options, makes it easy to use for users of all levels.
Can I adjust the centrifugation temperature?
Absolutely, the cooling system allows for precise temperature control from -20 °C to +40 °C, ideal for preserving delicate samples.
What are the safety features of this centrifuge?
The YR0111-3 is equipped with advanced safety systems, including autolock, overspeed protection, over-temperature protection, and imbalance detection.
What is the maximum capacity of the centrifuge?
The YR0111-3 has a maximum capacity of 500 ml per each of its six rotors, enabling efficient processing of large sample volumes.
What type of maintenance does it require?
Regular maintenance on the refrigeration and safety systems is recommended to maximize performance and extend the lifetime of the YR0111-3.
Is the centrifuge suitable for various laboratory applications?
Yes, the YR0111-3 is versatile and can be used in biomedical labs, biotechnology, and advanced research for high-precision separations and bulk analysis.
Pros and Cons
Among its most notable advantages, the YR0111-3 offers a maximum capacity of 500 ml x 6, speed precision with ± 50 rpm, and advanced safety systems. Its ten acceleration and deceleration levels make it versatile for different types of samples and laboratory requirements. However, its weight of 280 kg requires a fixed space in the laboratory, which could limit its mobility.
Field Usage
In biomedical laboratories, biotechnology, and advanced research, the YR0111-3 is a preferred option for high-precision separations and high-volume analysis. Its robust structure and stainless steel chamber ensure exceptional durability, while the CFC-free Tecumseh compressor meets environmental standards, providing optimal temperature control for a wide range of applications.
Recommendations
To maximize the performance and prolong the lifespan of the YR0111-3, regular maintenance of the refrigeration and safety systems is recommended. If you want more information or are interested in acquiring the High-Speed Refrigerated Floor-standing Centrifuge YR0111-3, we invite you to request a quote.
