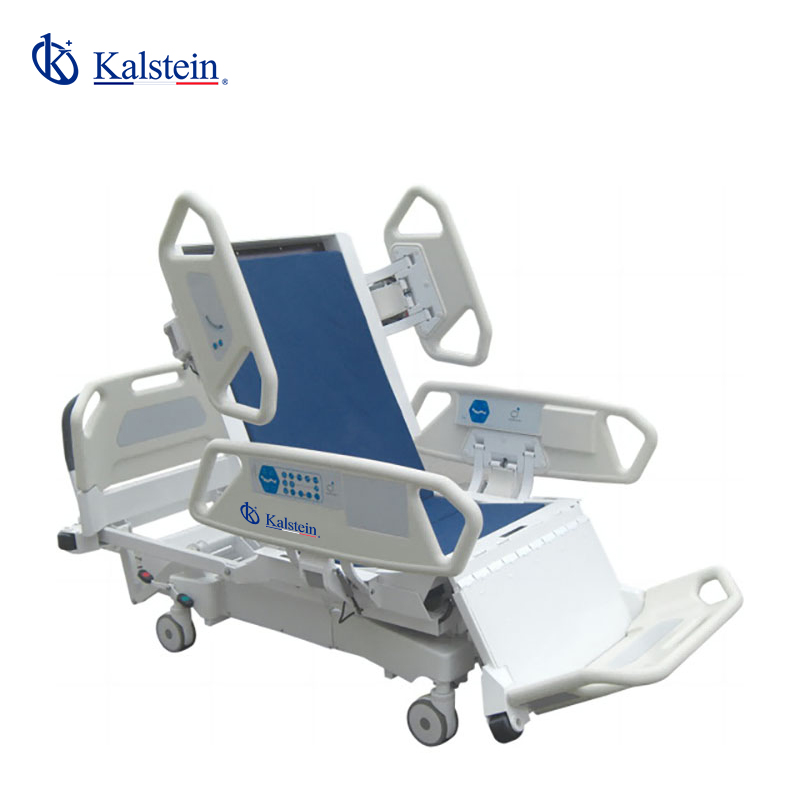

Installation and Commissioning Guide for 7-Function Electric ICU Bed YR06263
The 7-Function Electric ICU Bed YR06263 is an advanced medical bed designed for critical care environments. This guide aims to provide a detailed approach to the installation and commissioning process, ensuring that operators can efficiently set up the bed for optimal use.
Understanding the YR06263 Electric ICU Bed
The YR06263 model is equipped with multiple functions that enhance patient care and operational efficiency in medical facilities. Its features include a remote control, nurse control panel, instant release CPR function, auto-regression system, cardiac chair position, and a translucent X-ray mattress. This section provides an overview of these key functionalities.
Technical Specifications of YR06263
| Model | YR06263 |
|---|---|
| Dimensions (L*W*H) | 2020-2230mm x 1050-990mm x 500-1000mm |
| Weight Capacity | 300 Kg |
| Back Section Up/Down | 75°±5° |
| Knee Section Up/Down | 40°±5° |
| Hi-Low Function | 500-1000mm |
| Trendelenburg Angle | 0°~10° |
| Reverse Trendelenburg Angle | 0°~10° |
Unboxing and Initial Setup
Before installation, ensure that you have a complete checklist of all components included with the YR06263. Upon unboxing, verify the presence of the following items:
- Electric ICU Bed YR06263
- Remote control
- Nurse control panel
- Power cord
- User manual
Once confirmed, follow these steps for initial setup:
- Position the bed in the desired location, ensuring sufficient space for adjustments.
- Level the bed using adjustable feet to keep it stable.
- Connect the power cord to the appropriate electrical outlet.
- Power up the bed and test the remote control functionality.
First-Run Calibration
After setting up the bed, calibration is essential to ensure that all functions operate correctly. Follow these steps:
- Set the bed to the flat position using the remote control.
- Check the auto-regression feature by moving the back section up and down.
- Verify the knee section adjustment and its angle range.
- Test the CPR function to ensure instant release works efficiently.
Common Setup Mistakes and Troubleshooting
During installation and setup, operators may encounter several common issues. Here are some probable causes and solutions:
| Symptom | Cause | Solution |
|---|---|---|
| Bed does not power on | Power cord not connected | Check and plug in the power cord |
| Remote control unresponsive | Low battery | Replace remote control battery |
| CPR function fails | Improper configuration | Revisit calibration steps |
Environmental and Site Requirements
Ensure that the area where the YR06263 will be used meets the following requirements:
- Temperature Range: 0°C to 40°C
- Humidity: 30% to 75% relative humidity
- Power Supply: 110V to 240V, 50/60Hz
Before installation, confirm the site conditions with a checklist:
- Check electrical outlet compatibility.
- Ensure adequate ventilation.
- Verify sufficient space for bed adjustments.
Frequently Asked Questions
What are the key features of the YR06263 Electric ICU Bed?
The YR06263 Electric ICU Bed includes a remote control, nurse control panel, instant CPR release function, auto-regression, cardiac chair position, translucent X-ray mattress, and a weight capacity of 300 Kg.
How do I perform maintenance on the YR06263 Electric ICU Bed?
Regular inspections of the motors, control panels, and structural integrity of the bed are essential. Cleaning should be done using non-abrasive materials, and components should be checked for wear and tear regularly.
Can the YR06263 be used in a home care environment?
While primarily designed for clinical settings, the YR06263 can be adapted for home care use, provided that the environment meets the specified electrical and structural requirements.
What should I do if the bed is not responding to controls?
If the bed does not respond, check the power connection, replace the remote control battery, and ensure that the bed is correctly calibrated. If issues persist, consult the troubleshooting section of the user manual.
What are the dimensions of the YR06263 Electric ICU Bed?
The dimensions of the YR06263 are adjustable between 2020mm to 2230mm in length, 1050mm to 990mm in width, and a height range of 500mm to 1000mm.
How often should the YR06263 be serviced?
It is recommended to perform a comprehensive service check every 6 to 12 months, focusing on the mechanical and electronic components to ensure optimal performance.
Where can I request a quote for the YR06263 Electric ICU Bed?
You can request a quote for the YR06263 Electric ICU Bed through our dedicated sales team.
