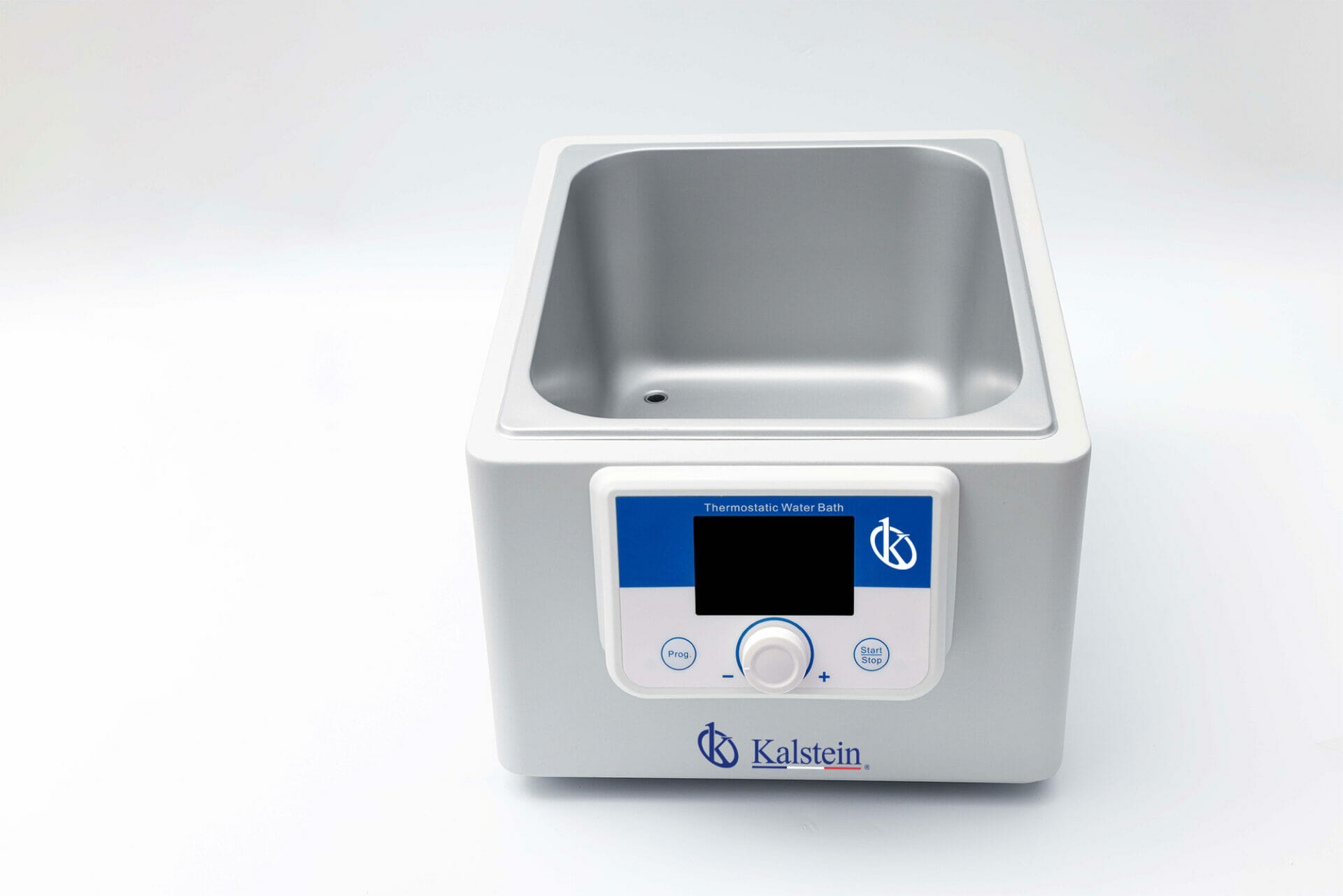

Installation and Commissioning Guide for the YR05903 Water Bath Incubator
The YR05903 Water Bath Incubator is a multifunctional, PID-controlled thermostat water tank essential for various applications in pharmaceutical, biochemical, scientific research, and environmental protection fields. This guide will help you with the installation and commissioning processes to ensure optimal performance and reliability of your unit.
Unboxing and Initial Setup
Before starting the installation, ensure you have a suitable workspace with ample ventilation, stable flooring, and access to power outlets. Unbox the YR05903 carefully, checking for any visible damage. Included in the package should be:
- YR05903 Water Bath Incubator
- User Manual
- Power Cord
- Calibration Tools
Once unboxed, place the incubator on a stable, level surface to facilitate efficient operation and prevent any spills or accidents.
Anchoring and Leveling the Unit
For optimal performance, it is crucial to level the YR05903 Water Bath Incubator. Use a leveling tool to ensure that the unit is perfectly horizontal. If there are adjustable feet, use them to achieve the correct position. This step is essential to ensure even distribution of heat and prevent liquid from pooling in one area.
Power-Up Sequence
Connect the power cord to the YR05903 and plug it into a suitable power outlet. Ensure that the voltage aligns with the specifications of the unit (AC100~120V/AC200~240V 50~60Hz). Follow these steps to power up the unit:
- Check the power source is working and can supply the required voltage.
- Turn on the main power switch located at the rear of the unit.
- Observe the TFT display for startup prompts and ensure there are no error codes.
First-Run Calibration
Calibrating the YR05903 ensures that the temperature readings are accurate. After powering up, allow the unit to warm up to the desired temperature setting. Use a calibrated thermometer to verify the temperature inside the bath. If discrepancies are noted, adjust the temperature settings accordingly:
- Set the target temperature on the TFT display.
- Wait for a few minutes.
- Measure the actual temperature with an external thermometer.
- If necessary, adjust the PID settings as detailed in the user manual.
Common Setup Mistakes
When setting up the YR05903, it is essential to avoid common mistakes that can hinder performance. Here are some key points to watch for:
- Incorrect power voltage can lead to malfunction.
- Failure to level the unit may cause uneven heating.
- Not calibrating the incubator can lead to inaccurate temperature readings.
- Neglecting to secure the drainage valve can cause leaks.
Technical Specifications of YR05903
| Specification | Details |
|---|---|
| Model | YR05903 |
| Voltage | AC100~120V/AC200~240V 50~60Hz |
| Temperature Control Range | RT +5~100℃ |
| Timer | 1m~99h59m |
| Temperature Accuracy | ±0.3℃ |
| Uniformity | ±0.3℃ (at 37℃) |
| Capacity | 10L |
| Power | 1000W |
| Drainage Method | Drain Outlet |
| Built-in Liquid Level Sensor Alarm | Yes |
Frequently Asked Questions
What is the best way to maintain the YR05903 Water Bath Incubator?
Regularly check the unit for cleanliness, especially in the water tank. Ensure the drainage system is functioning properly, and perform routine calibration checks to maintain accuracy. Following the user manual for periodic maintenance will extend the incubator's lifespan.
How do I troubleshoot if the YR05903 does not power on?
If the unit does not power on, check the power source and the power cord for any visible damage. Ensure that the power outlet is functioning and that the voltage matches the specifications required by the YR05903. If the issue persists, consult the user manual for further troubleshooting steps.
What temperature range does the YR05903 incubator support?
The YR05903 incubator supports a temperature control range from room temperature (RT) +5℃ to 100℃, allowing for a versatile range of experimental conditions.
Can I use the YR05903 for different laboratory applications?
Yes, the YR05903 is suitable for various applications including biochemical assays, pharmaceutical testing, and environmental research due to its multifunctional design.
What should I do if I encounter an error code on the YR05903?
Refer to the user manual to identify the specific error code. Common issues may include temperature fluctuations, sensor malfunctions, or power supply problems. The manual provides guidance on troubleshooting each specific error.
How do I ensure proper drainage in the YR05903?
Ensure that the drainage valve is correctly secured and free from obstructions. Regularly inspect and clean the drainage system to prevent blockages that might cause overflow or spillage.
