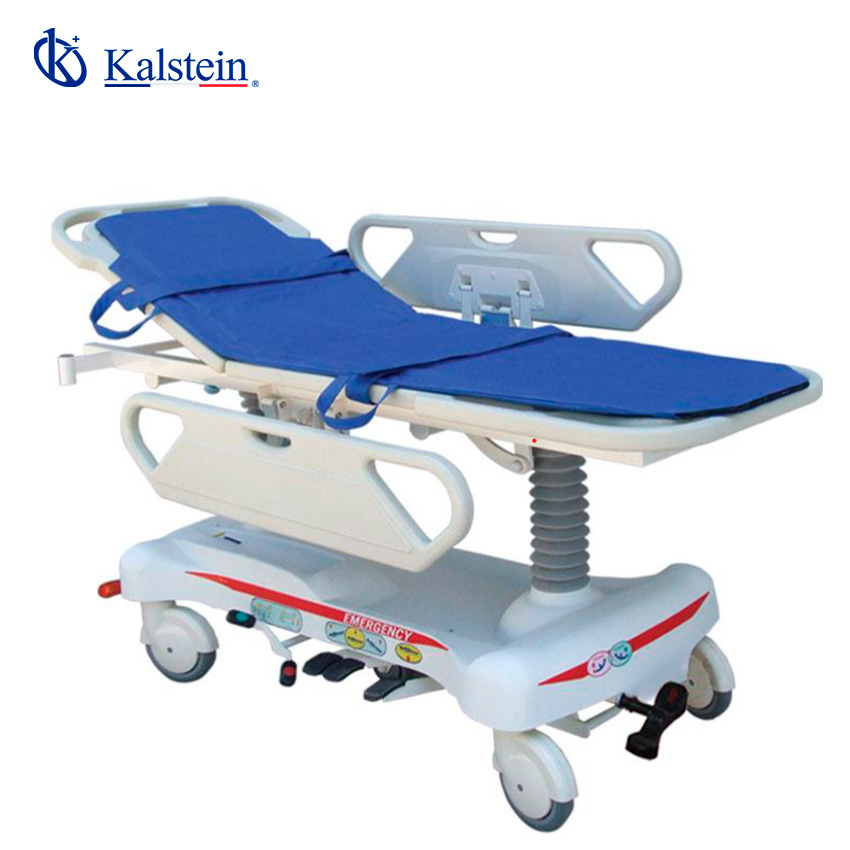

Installation and Commissioning Guide for the YR06288 Hydraulic Four Function Transfer Stretcher
The YR06288 Hydraulic Four Function Transfer Stretcher is an essential piece of medical equipment designed for safe and efficient patient transfer. This guide provides a detailed approach to its installation and initial setup, enabling operators to maximize its functionality.
Understanding the YR06288: Key Features
The YR06288 is engineered with several features aimed at enhancing patient care and operational efficiency:
- Imported PP material for the lower platform, ensuring durability.
- Central control braking system for improved safety.
- IV post included for versatility in patient treatment.
- Gas spring-assisted adjustable and foldable backrest for comfort.
- Equipped with a fifth wheel for guidance in lifting and lowering functions.
Technical Data Table for YR06288
| Specification | Details |
|---|---|
| Model | YR06288 |
| Size (L*W*H) | 1930*700*630/930mm |
| Frame Materials | PP |
| Side Rail Materials | PP |
| Bed Base Materials | PP |
| Pump | American Powerpacker Hydraulic |
| Backrest Max Upward Angle | 75° |
| Height Adjustment | 630-930 mm |
| Trendelenburg Angle | 15° |
| Anti-Trendelenburg Angle | 15° |
Unboxing and Initial Setup
Upon receiving the YR06288, it is important to perform a thorough unboxing to ensure all components are present and undamaged:
- Check the package contents against the included checklist.
- Inspect for any visible signs of damage.
- Ensure all accessories, including the IV post and tools for assembly, are included.
Installation Steps for the YR06288
The installation process for the YR06288 includes several key steps:
- Positioning: Place the stretcher on a flat, stable surface to ensure safe operation.
- Assembly: Attach the side rails and IV post securely according to the instructions provided.
- Leveling: Use leveling feet to adjust the stretcher to ensure it is even and stable.
- Power-Up Sequence: Connect the hydraulic pump to the power source and ensure it is properly functioning.
First-Run Calibration and Validation
Before putting the YR06288 into service, it is crucial to perform calibration:
- Test the hydraulic system by raising and lowering the stretcher to confirm responsiveness.
- Check that the backrest adjusts smoothly and holds its position securely.
- Conduct a load test to ensure the stretcher can handle the maximum weight capacity safely.
Common Setup Mistakes to Avoid
To ensure a smooth setup process, be mindful of these common mistakes:
- Failing to secure all components properly, which may lead to instability.
- Not conducting the initial power-up checks, risking equipment malfunction.
- Overlooking the importance of leveling, which can affect usability.
Frequently Asked Questions
What should I do if the YR06288 does not power on?
Check if the hydraulic pump is connected to the power supply and ensure the power source is active. Inspect the power switch and fuses for any damage or disconnections.
How can I adjust the height of the YR06288?
The stretcher features a hydraulic height adjustment mechanism. Engage the control to raise or lower to the desired height between 630mm and 930mm.
Is there a specific maintenance schedule for the YR06288?
Regular inspections should be performed every six months, focusing on hydraulic fluid levels, brake functionality, and structural integrity.
Can I use the YR06288 with additional accessories?
Yes, the stretcher is designed to accommodate various accessories including IV poles and additional safety straps, enhancing its functionality.
What materials are the YR06288 made from?
The stretcher is primarily constructed from imported PP material, making it both lightweight and durable for frequent use.
How do I troubleshoot the backrest if it fails to adjust?
Inspect the gas spring mechanism for any signs of damage or wear. Ensure that the adjustment lever is functioning properly and that there are no obstructions.
Conclusion
Successfully installing and commissioning the YR06288 Hydraulic Four Function Transfer Stretcher involves careful attention to detail throughout the setup process. Following this guide will ensure a seamless transition into operational use.
