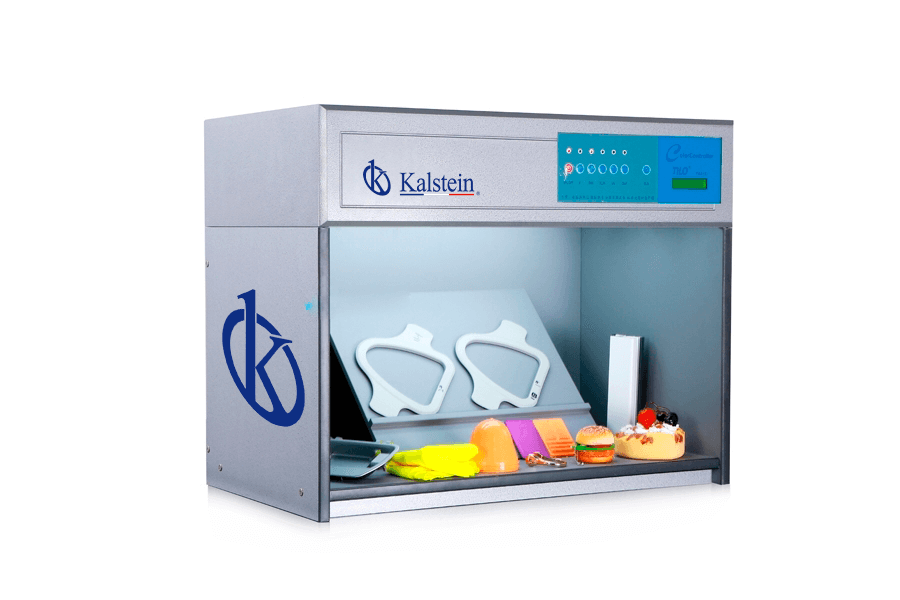

Installation and Setup Guide for the YR05524 Color Light Box

The YR05524 Color Light Box is an advanced tool designed for precise color evaluation across multiple industries, including textiles, printing, and packaging. This guide provides a step-by-step approach to installing and setting up the YR05524, ensuring it operates at peak efficiency.

Understanding the Importance of Proper Setup

Setting up the YR05524 correctly is crucial for achieving accurate color assessments. The accurate representation of colors can significantly affect quality control processes in various applications. Hence, understanding the installation requirements and procedures is key to maximizing the device's performance.

Technical Specifications of the YR05524

Model	Brand	Category	Price USD	Weight	Dimensions
YR05524	Kalstein	Color Light Box	$212.00	32 kg	710 x 405 x 570 mm

Unboxing and Initial Inspection

Upon receiving the YR05524, begin by carefully unboxing the unit. Ensure all components are present and undamaged. The package should include:

• YR05524 Color Light Box
• Power cable
• User manual
• Calibration tools

Perform a visual inspection and check for any shipping damages. Contact the supplier immediately if any items are missing or damaged.

Installation Location Requirements

Select an appropriate location for the installation of the YR05524. Consider the following factors:

• Stable surface: The light box must be placed on a stable table or workbench.
• Power access: Ensure the location has access to a suitable power source (220V).
• Environmental conditions: Choose a spot with controlled temperature and humidity to avoid fluctuations that could affect color evaluation.

Use a leveling tool to ensure the unit is perfectly horizontal, minimizing risks of operational inaccuracies.

Connecting Power and First-Time Startup

Connect the power cable to the YR05524 and plug it into the wall outlet. Ensure the cable is securely fastened to avoid accidental disconnection. Follow these steps for the first-time startup:

1. Turn on the main power switch.
2. Press the individual light source switches to power them up.
3. Allow the system to warm up for at least 15 minutes for optimal performance.

This warm-up period allows the light sources to stabilize, providing consistent lighting conditions for accurate color evaluation.

Calibration and Validation of Measurements

Calibration is essential for ensuring that the YR05524 provides accurate color assessments. Follow the steps below to calibrate the unit:

• Use the provided calibration tools to adjust light intensity.
• Perform a validation check using standard color samples.
• Document the calibration results for future reference.

Regular calibration, based on the usage frequency, ensures compliance with international standards for color evaluation.

Common Setup Mistakes to Avoid

While setting up the YR05524, be mindful of common mistakes that can hinder performance:

• Improper leveling: An unlevel surface can lead to inconsistent readings.
• Incorrect power supply: Ensure the power voltage matches the specifications (220V).
• Ignoring warm-up time: Failing to allow adequate warm-up can result in inaccurate color readings.

By taking these precautions, users can maximize the reliability of the YR05524 in their color evaluation processes.

Frequently Asked Questions

What are the key features of the YR05524 Color Light Box?

The YR05524 features four light sources (D65, TL84, F, UV), automatic switching, and no warm-up time, ensuring quick and reliable color evaluation.

How do I perform calibration on the YR05524?

Calibration involves using the supplied calibration tools to adjust the light intensity and validating with standard color samples to ensure accurate readings.

What industries benefit from using the YR05524?

Industries such as textiles, printing, automotive, and packaging benefit from the YR05524 for color consistency and quality control.

How often should the YR05524 be calibrated?

Calibration frequency depends on usage; however, it is recommended to calibrate the YR05524 at least once a month for optimal accuracy.

Can I customize the dimensions of the YR05524 Color Light Box?

Yes, the dimensions of the YR05524 can be customized to meet specific needs, ensuring it fits seamlessly into your operational workflow.

What should I do if the YR05524 fails to power on?

Check the power connection, ensure the outlet is functional, and verify that the power switch is turned on. If the problem persists, consult the user manual for troubleshooting steps.

How do I request a quote for the YR05524 Color Light Box?

You can easily request a quote on our platform by providing the details of your requirements, and our team will assist you with pricing and availability.
