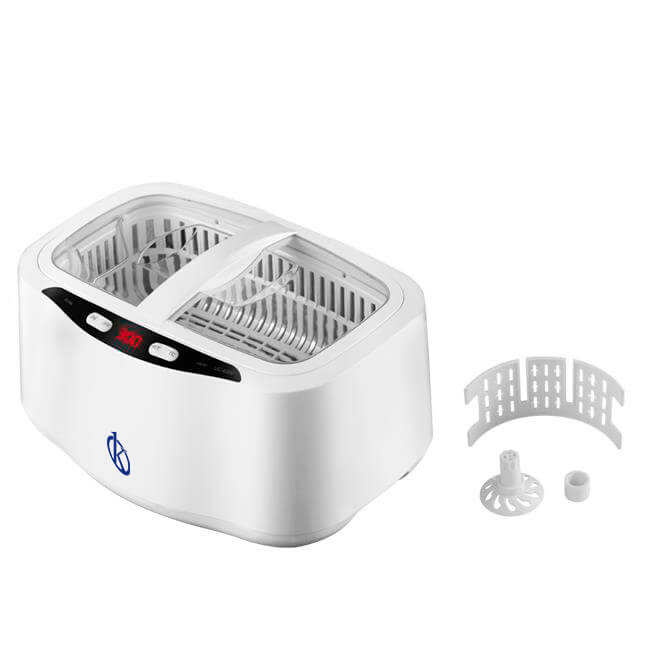

Installation and Setup Guide for the YR05230 Ultrasonic Cleaner
The YR05230 Ultrasonic Cleaner is renowned for its effectiveness in dental and jewelry cleaning applications. This guide will provide you with detailed steps for installation and initial setup to ensure optimal performance right from the start.
Understanding the YR05230 Ultrasonic Cleaner
The YR05230 is an advanced ultrasonic cleaning device designed with a robust ABS exterior and an internal SUS304 stainless steel tank. Its high-frequency operation effectively removes dirt and contaminants from delicate items within minutes. Understanding its components is crucial for efficient installation and operations.
Unboxing and Initial Checks
Upon receiving your YR05230 Ultrasonic Cleaner, perform the following checks:
- Inspect the packaging for any damage during transit.
- Ensure all components are included: ultrasonic cleaner unit, power cord, instruction manual.
- Check for visible defects on the unit.
Required Installation Space and Conditions
Before powering the YR05230, ensure you have a suitable installation environment:
- Temperature: Operate between 10°C to 40°C.
- Humidity: Ideal relative humidity of 30% to 85%.
- Ventilation: Ensure proper airflow to prevent overheating.
- Clearances: Maintain 15 cm around the unit for safety and airflow.
Power Connection and Setup
Connecting the YR05230 to a power supply involves the following steps:
- Locate the AC power cord provided.
- Connect the cord to the back of the unit securely.
- Plug the other end into a suitable power outlet (AC110-120V or AC220-240V based on your region).
- Turn on the unit using the main switch located on the front panel.
Initial Calibration and First Run
To ensure the YR05230 operates effectively, perform the initial calibration:
- Fill the tank with clean water up to the maximum fill line.
- Add a suitable cleaning solution as per the manufacturer’s recommendations.
- Set the timer between 1-5 minutes based on the cleaning requirements.
- Press the start button and monitor the operation for any irregularities.
Technical Specifications of the YR05230
| Specification | Details |
|---|---|
| Model | YR05230 |
| Packaging Size | 325 x 245 x 210 mm |
| Internal Slot Size | 247 x 150 x 78 mm |
| Tank Capacity | 2.5 L |
| Voltage | AC110-120V 60Hz / AC220-240V 50Hz |
| Power | 60 W |
| Ultrasonic Frequency | 42KHz |
| Timer Setting | 1-5 min (adjustable) |
| Net Weight | 1.2 Kg |
Troubleshooting Common Setup Issues
To ensure smooth operation, familiarize yourself with potential issues that may arise during setup:
- Unit does not power on: Check the power connection and ensure the outlet is functioning.
- Water spills out: Ensure the tank is not overfilled and that the unit is placed on a stable surface.
- Unusual noise during operation: Check for any loose components or debris in the tank.
Frequently Asked Questions
What are the key features of the YR05230 Ultrasonic Cleaner?
The YR05230 Ultrasonic Cleaner features a stainless steel tank, adjustable timer, and high-frequency operation for effective cleaning of various items, especially in dental and jewelry applications.
How long does it take to clean items with the YR05230?
The cleaning time can vary based on the degree of contamination and the items being cleaned, but the adjustable timer allows for effective cleaning within a range of 1 to 5 minutes.
Can the YR05230 be used for different applications?
Yes, the YR05230 is versatile and can be used for cleaning jewelry, dental instruments, and other delicate items, making it suitable for various industries.
How do I maintain the YR05230 Ultrasonic Cleaner?
Regular maintenance includes cleaning the tank after use, checking for any wear or damage, and ensuring the power connections are secure. It is also advisable to replace cleaning solutions regularly.
What types of cleaning solutions can be used with the YR05230?
Compatible cleaning solutions include water-based detergents specifically designed for ultrasonic cleaners. Avoid using flammable or corrosive substances.
Is there a warranty for the YR05230 Ultrasonic Cleaner?
Yes, the YR05230 typically comes with a warranty that covers defects in materials and workmanship. Check the manufacturer's specific warranty terms for details.
How do I request a quote for the YR05230 Ultrasonic Cleaner?
You can request a quote by contacting our sales team or visiting our dedicated quote request page for pricing and availability details.
