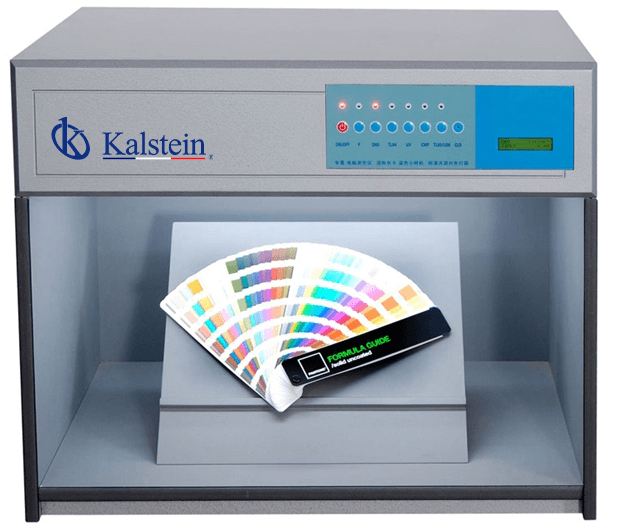

Installation and Startup Guide for the YR05530 Standard Color Evaluation Box
The YR05530 Standard Color Evaluation Box is a critical tool for accurate color assessment in diverse industries including textiles, plastics, inks, and food products. Understanding how to properly install and start up this equipment is vital for ensuring the accuracy and reliability of your color evaluations.
Overview of the YR05530
The YR05530 features six standard light sources (D65, TL84, UV, CWF, F, A) that facilitate the verification of color fidelity under different conditions. Equipped with automatic switching technology and touch controls, it simplifies the transition between light sources and tracks usage time, making it a robust choice for any operational environment.
Technical Specifications of the YR05530
| Model | YR05530 |
|---|---|
| Project | Configurations |
| Configuration | F, D65, TL84, UV, CWF/TL83, A with a total of six light sources |
| Weight | 28 Kg |
| Dimensions (L x W x H) | 710 x 530 x 570 mm |
| Optional Accessory | Light source diffuser, standard 45-degree holder |
Unboxing Checklist for the YR05530
Upon receiving your YR05530, follow these steps to ensure that all components are intact and ready for installation:
- Check for the main unit and all accessories.
- Verify that the power cable and user manual are included.
- Inspect the unit for any physical damage during shipping.
- Ensure the diffuser and other optional accessories are present.
Installation Procedure
Proper installation of the YR05530 is crucial for achieving accurate color assessments. Here’s a step-by-step guide:
Location Setup
Choose a stable, flat surface to place the YR05530, ensuring it is away from direct sunlight and strong light sources that can interfere with its readings.
Power Connection
Connect the power cable to the YR05530 and plug it into a suitable electrical outlet. The device should operate on a stable voltage and frequency to prevent any malfunction.
Initial Calibration
After powering up the unit, perform the initial calibration according to the instructions in the user manual. This typically involves selecting a light source and allowing the device to warm up for accurate readings.
Common Setup Mistakes
To avoid issues during installation, here are common mistakes to watch out for:
- Improper placement near windows or bright artificial lights.
- Failure to check the power supply specifications.
- Neglecting to verify the unit's functionality post-calibration.
Operating the YR05530
With the installation complete, operating the YR05530 becomes straightforward. Utilize the touch control panel to switch between light sources and start your color evaluations:
Using Light Sources
To access different light sources, simply tap on the corresponding icon on the touch panel. Each source is tailored for specific evaluations, such as D65 for daylight simulation or UV for detecting optical brighteners.
Recording Measurements
As you perform evaluations, keep track of the measurements displayed on the unit. This ensures that color fidelity is maintained and any necessary adjustments can be made promptly.
Maintenance Recommendations
To prolong the life of your YR05530, regular maintenance is essential:
- Clean light sources regularly to prevent dirt accumulation.
- Check the usage time counter to anticipate lamp replacements.
- Use the optional diffuser to enhance light uniformity during assessments.
Frequently Asked Questions
What light sources does the YR05530 model include?
The YR05530 comes with six standard light sources: D65, TL84, UV, CWF, F, and A, each designed for various color evaluation needs.
Is the YR05530 durable?
Yes, the YR05530 is built to last, featuring a time counter for each light source, which simplifies maintenance and bulb replacement.
Can the YR05530 be used in industrial settings?
Absolutely. Its user-friendly design, without the need for preheating, makes it suitable for high-demand environments.
How can I ensure accurate results with the YR05530?
Regular calibration and proper light source selection are key to obtaining accurate color measurement results. Always follow the guidelines in the user manual.
What are the dimensions of the YR05530?
The YR05530 has dimensions of 710 x 530 x 570 mm, making it a compact solution for color evaluation.
How do I clean the YR05530?
Use a soft, lint-free cloth to clean the exterior and light sources. Avoid harsh chemicals that could damage the device.
