How to Interpret Measurements and Results with the YR03391 Autoclave?
The YR03391 Autoclave is a state-of-the-art Class N device designed to provide effective sterilization in various laboratory environments. Understanding how to interpret measurements and results from this autoclave is essential for ensuring compliance with sterilization standards, optimizing laboratory processes, and enhancing overall operational efficiency. This article delves into the aspects of measurements taken by the YR03391, including how to read and interpret them accurately.

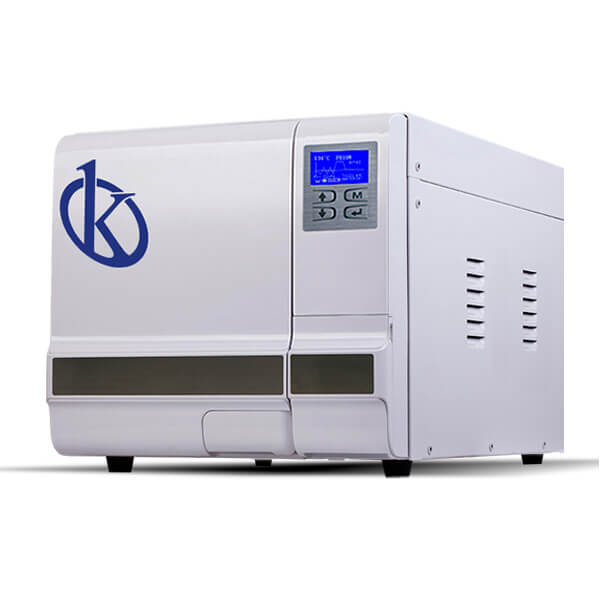

Overview of the YR03391 Autoclave
The YR03391 model stands out due to its fully automatic operation, pre-set programs, and a powerful independent steam generator that ensures uniform temperature distribution and quick steam cycles. With features such as a dynamic air extraction system and quick drying post-sterilization, this autoclave exemplifies reliability and efficiency.
Technical Specifications of YR03391
| Order Code | YR03391 | YR03392 | YR03393 | YR03394 |
|---|---|---|---|---|
| Chamber Dimension | Ø170×320mm | Ø200×360mm | Ø247×350mm | Ø247×450mm |
| Chamber Volume | 8L | 12L | 18L | 23L |
| Number of Trays | 2 / max. 3 | 2 / max. 3 | 3 / max. 4 | 3 / max. 4 |
| Tray Size | 130×265mm | 156×295mm | 192×285mm | 192×380mm |
| Voltage, Frequency | 220/110 V, 50/60 Hz | 220/110 V, 50/60 Hz | 220/110V, 50/60Hz | 220/110V, 50/60Hz |
| Power | 1900W | 1900W | 1900W | 2100W |
| Total Dimension (W x H x D) | 420x370x525mm | 420x370x595mm | 490x455x600mm | 490x455x690mm |
| Weight | 35 kg | 38 kg | 45 kg | 50 kg |
Understanding the Display Readouts
The YR03391 autoclave features an LCD screen that displays crucial information including time, temperature, and pressure during the sterilization cycle. Familiarity with these readouts is vital:
- Temperature: Typically ranges between 121°C and 134°C, depending on the selected program. Accurate temperature measurement is essential for effective sterilization.
- Pressure: The autoclave operates under high pressure to facilitate steam penetration. Normal readings may go up to 2.1 MPa.
- Cycle Time: The duration of the cycle varies based on the load and the selected program. Understanding this helps in planning and resource allocation.
Common Misinterpretations of Results
Interpreting results from the YR03391 can sometimes lead to confusion. Here are common errors to avoid:
- Assuming temperature guarantees sterilization: It's crucial to understand that proper time and pressure must also be achieved and maintained.
- Ignoring error codes: The autoclave can display error codes related to issues such as temperature deviations or pressure failures. Addressing these promptly is essential.
- Overlooking maintenance alerts: The autoclave will notify users when it requires maintenance. Ignoring these alerts can lead to compromised sterilization.
Interpreting Error Codes
The YR03391 is equipped with a diagnostic system that helps troubleshoot various problems through error codes. Here’s a quick reference:
| Error Code | Description | Recommended Action |
|---|---|---|
| E-01 | Pressure sensor malfunction | Check sensor connections, replace if necessary. |
| E-02 | Temperature not reaching set point | Inspect heating element and door seal for leakage. |
| E-03 | Water level too low | Refill the water tank to the required level. |
Best Practices for Accurate Measurements
To ensure the best results with the YR03391, consider the following:
- Regularly calibrate the autoclave to maintain precision.
- Ensure that all items being sterilized are compatible and properly placed within the chamber to avoid interference with steam flow.
- Record all sterilization cycles, noting temperature, pressure, and time, to track performance over time.
Frequently Asked Questions
What are the ideal temperature and pressure settings for the YR03391 autoclave?
The ideal temperature settings for the YR03391 often range between 121°C and 134°C, with pressure typically maintained at 110 to 210 kPa for effective sterilization cycles.
How can I tell if the sterilization cycle was successful?
A successful sterilization cycle is indicated by reaching the designated temperature and pressure for the required duration, as well as no error codes being displayed on the autoclave's screen.
What maintenance is required for the YR03391 autoclave?
Routine maintenance includes checking the water levels, cleaning the chamber, verifying sensor functionality, and addressing any error codes promptly.
Can I operate the YR03391 at different altitudes?
Yes, the YR03391 autoclave can automatically self-initialize when operating at different altitudes, ensuring proper functionality across various environmental conditions.
What should I do if I see an error code E-02 on my autoclave?
Error code E-02 indicates that the temperature is not reaching the set point. It is important to inspect the heating element and ensure that the door seal is intact to prevent steam loss.
Are there specific protocols for sterilization in a clinical setting?
Yes, in a clinical setting, it is essential to follow standard protocols for sterilization which include proper loading techniques, monitoring cycles, and keeping detailed records of all procedures.
How do error codes affect the operation of the YR03391 autoclave?
Error codes serve as diagnostic indicators that alert the user to potential issues that could compromise the sterilization process, allowing for timely intervention to maintain effectiveness.
