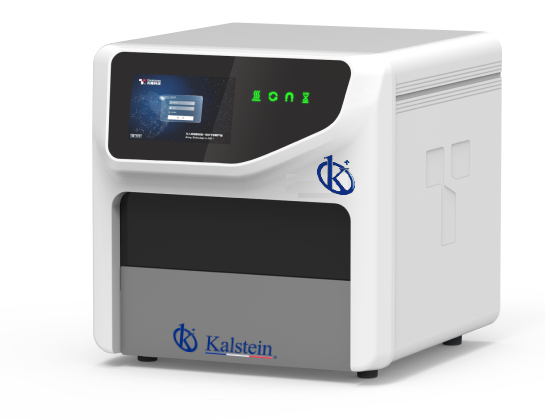

Interpreting Results and Measurement Readings with the YR01871 Automatic Nucleic Acid Extractor
The YR01871 Automatic Nucleic Acid Extractor is a sophisticated system designed for accurate and efficient nucleic acid extraction. Understanding how to interpret results and measurement readings from this device is critical for maximizing its capabilities in various scientific applications.
Technical Overview of the YR01871
| Specification | Details |
|---|---|
| Model | YR01871 |
| Performance | Ene-96 |
| Reaction Volume | 30-1000uL |
| Sample Volume | 200uL |
| Compatible Consumables | 96-well plates; custom 6-strip tubes |
| Extraction Variance | CV ≤3% |
| Rotation Speed | ≤3000rpm |
| Heating Method | Heating from ambient to 120°C |
| Mixing Method | Rotary mixing |
| Control Method | 7-inch full-color LCD touchscreen |
| Program Storage | Up to 1,000 programs |
| Contamination Control | HEPA filter module; integrated UV disinfection |
| Weight | 45 kg (net) |
| Dimensions | 510mm x 490mm x 480mm (W x L x H) |
| Power Source | AC 100V-240V, 50/60HZ; 600VA |
Understanding Nucleic Acid Extraction Results
When working with the YR01871, results interpretation revolves around understanding nucleic acid concentrations, purity ratios, and potential contaminants. This section will cover how each of these metrics is measured and what the numbers signify for laboratory operations.
Nucleic Acid Concentration
The concentration of nucleic acids is typically measured in ng/µL. The YR01871 provides reliable readings thanks to its precision in extraction techniques. It is essential to cross-verify these readings with spectrophotometric data, ensuring that the results align with expected values based on sample inputs.
Purity Ratios
The A260/A280 ratio is an important indicator of nucleic acid purity. A ratio of around 1.8 is generally acceptable for DNA, while RNA should ideally be around 2.0. The YR01871 minimizes the presence of proteins and other contaminants through its advanced filtration and purification processes, making it easier to obtain high-quality nucleic acids.
Common Misinterpretations of Results
Even with advanced technology, misinterpretations can occur. Here we dissect some common pitfalls in reading results from the YR01871.
Overconfidence in High Concentration Readings
While high concentration values seem promising, they could indicate contamination. It is crucial to compare concentration results with the expected outcomes based on sample types.
Ignoring Variance
Results may fluctuate due to variances in sample handling or extraction methods. Regular calibration and consistent protocols should be enforced to maintain accuracy.
Interpreting Measurement Readings: A Step-by-Step Guide
Accurate interpretation of measurement readings from the YR01871 is essential for effective laboratory practices. Follow these steps for best practices:
- Review the Calibration: Ensure that the device is calibrated correctly before running samples.
- Check Sample Preparation: Confirm that sample handling protocols are followed to minimize contamination.
- Analyze Results: Document results comprehensively, including concentration and purity ratios.
- Cross-Reference: Use secondary methods (like spectrophotometry) to verify nucleic acid quality.
Troubleshooting Common Issues with the YR01871
Even with automated systems like the YR01871, issues can arise. Below are common symptoms, their possible causes, and solutions.
| Symptom | Possible Cause | Solution |
|---|---|---|
| Device does not power on | Power supply issue | Check power connections and fuses. |
| Error code E-03 | Sample preparation error | Verify sample volumes and reagents. |
| Inconsistent readings | Calibration drift | Recalibrate the device and repeat tests. |
Recommendations for Optimal Performance
For the YR01871 to yield the best results, follow these recommendations:
- Regularly clean and maintain the unit to avoid contamination.
- Ensure you are using compatible consumables to minimize extraction variance.
- Document all experimental conditions and results for reproducibility.
Frequently Asked Questions
How to interpret the A260/A280 ratio in results from the YR01871?
The A260/A280 ratio indicates the purity of nucleic acids extracted. Ratios near 1.8 for DNA and 2.0 for RNA suggest high purity, whereas significant deviations may indicate contamination.
What steps can be taken to improve extraction efficiency with the YR01871?
Improving extraction efficiency involves calibrating the device regularly, using the correct reagents, and maintaining a clean workspace to avoid sample contamination.
How does the YR01871 ensure minimal contamination during extraction?
The YR01871 utilizes advanced rotary mixing technology and a HEPA filtration system, which significantly limits aerosols and cross-contamination risks.
What troubleshooting steps should be taken for inconsistent nucleic acid readings?
Inconsistent readings may indicate calibration issues. Recalibrate the extractor and ensure that sample volumes and qualities are uniform.
How can I optimize the storage of extracted nucleic acids?
Extracted nucleic acids should be stored at -20°C or lower for long-term storage. For short-term use, keep them at 4°C.
What are the implications of high magnetic bead residue in results?
High magnetic bead residue can lead to inaccurate concentration readings. The YR01871 is designed to maintain bead residue below 1% for optimal results.
Can the YR01871 be adapted for different laboratory settings?
Yes, the YR01871 can be configured for various laboratory environments, including clinical, research, and industrial settings, providing flexibility based on user needs.
