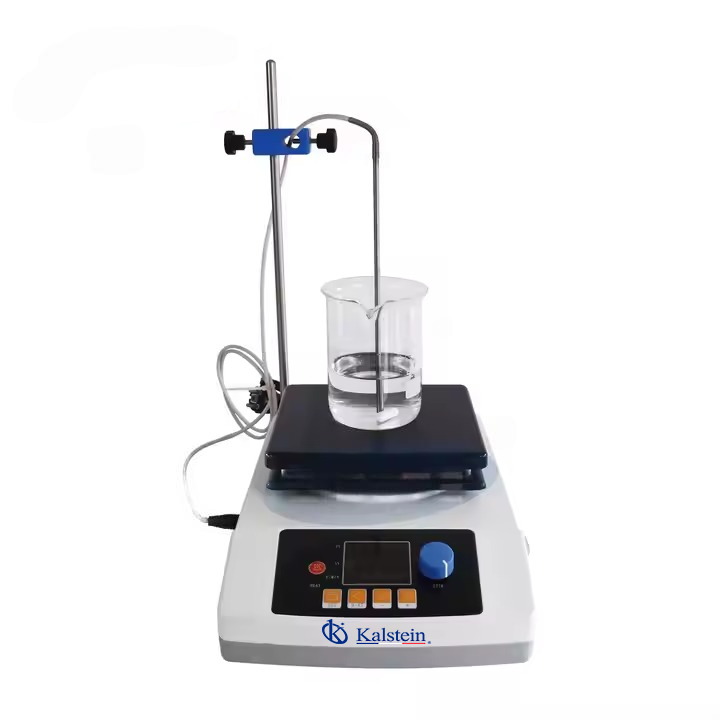

Interpreting Results and Reading Measurements with the YR02940 Hotplate Stirrer
The YR02940 Intelligent Digital Display Ceramic Top Hotplate Stirrer is a versatile tool designed for laboratory setups, offering precision and reliability in sample processing. Understanding how to accurately interpret the results and read the measurements displayed on this device is crucial for obtaining valid experimental outcomes. In this article, we will delve into the operational principles, technical specifications, and practical tips that will enhance your use of the YR02940.
Understanding the Operation Principles of the YR02940
The YR02940 operates on the principle of magnetic stirring, utilizing a rotating magnetic field to induce rotation in a magnetized stir bar placed within the sample. This method is preferred in many laboratories due to its silent operation and efficiency. The design of the YR02940 includes a PID (Proportional-Integral-Derivative) control system that automatically regulates temperature, ensuring precise heating without overshooting the desired set point.
One of the key advantages of the YR02940 is its ceramic top, which provides excellent heat distribution and resistance to corrosion, making it suitable for a variety of chemical reactions. The compact design allows for easy handling and integration into limited space environments, while the digital display provides real-time feedback on temperature and stirring speed, critical for accurate measurements.
Technical Specifications of the YR02940
| Specification | Details |
|---|---|
| Model | YR02940 |
| Top Plate Dimensions (mm) | 280 x 280 |
| Temperature Control | PID Automatic Control |
| Maximum Temperature | 325°C |
| Speed Range | 100 - 1800 RPM |
| Power Supply | 1100W |
| Weight | 8.2 kg |
| Dimensions (mm) | 495 x 382 x 315 |
Accurate Reading of Measurements on the YR02940
Reading the measurements from the YR02940 is straightforward due to its user-friendly digital display. The display shows both temperature and stirring speed in real-time, allowing you to monitor the conditions of your sample effectively. The temperature is displayed in degrees Celsius, and any adjustments can be made via the control panel, which features intuitive buttons for setting the desired parameters.
It is important to remember that the YR02940 has a temperature accuracy of +/- 1 degree, ensuring that your heating is precise. When interpreting results, always account for this variability, especially in sensitive experiments. For stirring speeds, the accuracy is also +/- 1 RPM, which is crucial when maintaining specific conditions for reactions or mixtures.
Common Misinterpretations When Using the YR02940
Users may encounter several common misinterpretations while operating the YR02940. One typical issue is misunderstanding the temperature reading, particularly during rapid changes. The PID controller may momentarily display fluctuations before stabilizing at the set point. Thus, patience is required when anticipating stable readings.
Another common misinterpretation involves the stirring speed. When the display shows a drop in RPM, it may indicate an overload condition or that the stir bar is encountering resistance. It's essential to ensure the stir bar is adequately sized for your flask or container and that there are no obstructions hindering its motion.
Environmental Considerations When Using the YR02940
When setting up the YR02940, certain environmental conditions must be considered to ensure optimal performance. The device is rated to operate in ambient temperatures up to 40°C and requires a stable voltage supply between 110-240V. If operating in high-temperature environments, adequate ventilation is necessary to prevent overheating.
Additionally, the YR02940 is designed to be resistant to dust and moisture, but it still necessitates a clean working area free from excessive vibrations or electromagnetic interference. These factors can affect the device's precision and overall performance.
Frequently Asked Questions
What is the maximum temperature the YR02940 can reach?
The YR02940 can reach a maximum temperature of 325°C, making it suitable for a variety of heating applications in the laboratory.
How accurate are the temperature controls on the YR02940?
The temperature controls on the YR02940 have an accuracy of +/- 1 degree Celsius, ensuring reliable temperature readings for critical experiments.
What types of containers can be used with the YR02940?
The YR02940 is compatible with various laboratory containers, including beakers and flasks, as long as they are designed to fit within the ceramic top plate.
Can the YR02940 be used in an educational setting?
Yes, the YR02940 is suitable for educational purposes, allowing students to conduct experiments that require precise temperature control and stirring capabilities.
What precautions should be taken when using the YR02940?
Users should avoid overloading the stir plate, ensure that the stir bar is properly positioned, and monitor the temperature closely to prevent overheating.
Conclusion
In summary, the YR02940 Intelligent Digital Display Ceramic Top Hotplate Stirrer is a powerful tool that enhances laboratory operations through its precise controls and user-friendly interface. By understanding how to interpret results and read measurements accurately, users can maximize the effectiveness of their experiments. Always ensure that you are familiar with the device's operational principles and environmental requirements to achieve the best results.
