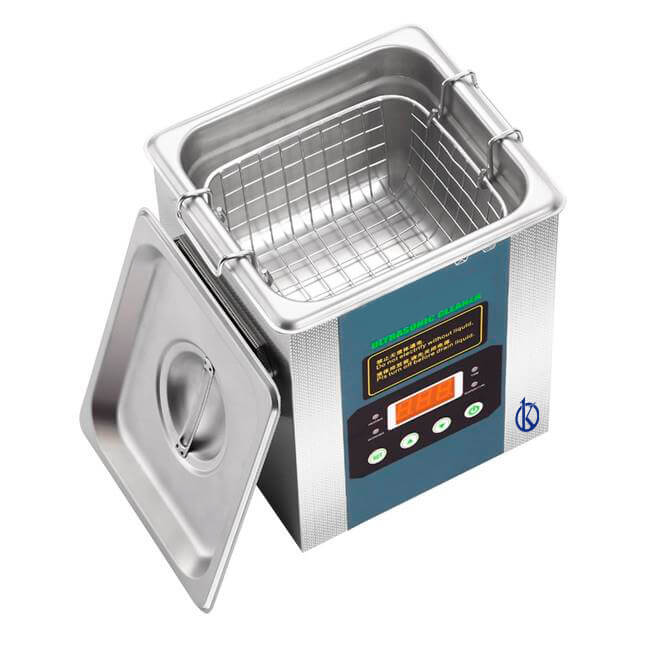

Understanding the Operating Principle and Scientific Foundation of the YR05209 Ultrasonic Cleaner
The YR05209 Ultrasonic Cleaner is a versatile device designed primarily for cleaning jewelry, leveraging advanced ultrasonic technology. This article will delve deeply into the operating principles and scientific foundations that make the YR05209 an exceptional cleaning tool.
Scientific Principles Behind Ultrasonic Cleaning
Ultrasonic cleaning utilizes high-frequency sound waves to generate cavitation bubbles in a liquid cleaning solution. When these bubbles collapse, they create intense pressure and temperature, leading to an effective cleaning action. The mechanism behind this process involves several scientific concepts:
- Cavitation: This is the formation of vapor cavities in a liquid due to the pressure changes created by ultrasonic waves. The YR05209 operates at a frequency of 40 kHz, which is optimal for generating effective cavitation.
- Pressure Dynamics: The rapid formation and collapse of cavitation bubbles generate momentary high-pressure jets that dislodge dirt and contaminants from surfaces.
Key Features of the YR05209 Ultrasonic Cleaner
| Feature | Description |
|---|---|
| Model | YR05209 |
| Tank Capacity | 2 Liters |
| Ultrasonic Frequency | 40 kHz |
| Heating Control | Digital Control |
| Power Consumption | 70W |
| Voltage Options | AC110-120V 60Hz or AC220-240V 50Hz |
How Does the YR05209 Ultrasonic Cleaner Work?
The YR05209 operates by generating high-frequency ultrasonic waves through its transducer. These waves travel through the cleaning solution and create thousands of tiny bubbles through the cavitation process. As these bubbles implode, they produce shock waves that effectively lift dirt, grime, and other contaminants from the surface of the items being cleaned. This process is highly effective for cleaning intricate designs in jewelry that are difficult to reach with traditional methods.
Applications of the YR05209 Ultrasonic Cleaner
The YR05209 is versatile and can be used across various sectors, including:
- Jewelry Cleaning: Particularly effective for detailed and fine jewelry, ensuring a deep clean without damaging delicate surfaces.
- Industrial Applications: Useful in cleaning parts that require precision cleaning, like components in machinery.
- Dental Instruments: Ideal for sterilizing and cleaning dental tools, ensuring hygiene and safety.
Technical Specifications of the YR05209
| Specification | Detail |
|---|---|
| Model | YR05209 |
| Packaging Size | 242 x 227 x 275 mm |
| Internal Slot Size | 150 x 135 x 100 mm |
| Net Weight | 2.7 KG |
Maintenance and Care for the YR05209
Proper maintenance of the YR05209 is crucial to ensure its longevity and effective performance:
- Regular Cleaning: Clean the tank after each use to prevent residue buildup.
- Check Ultrasonic Functionality: Periodically verify that the ultrasonic function operates as expected.
- Inspect Cables and Connections: Regularly check for signs of wear or damage to electrical components.
Frequently Asked Questions
What is the maximum capacity of the YR05209 Ultrasonic Cleaner?
The YR05209 Ultrasonic Cleaner has a maximum tank capacity of 2 liters, which is suitable for cleaning a variety of items, including jewelry and small industrial parts.
How often should the cleaning solution be changed in the YR05209?
It is recommended to change the cleaning solution after each use or when it becomes visibly dirty to maintain optimal cleaning performance.
Can the YR05209 be used for cleaning dental instruments?
Yes, the YR05209 is suitable for cleaning dental instruments, providing a thorough cleaning and sterilization process, which is essential for hygiene.
What should I do if the cavitation effect seems weak?
If you notice a weak cavitation effect, check the cleaning solution level and concentration, as improper solutions can affect performance. Additionally, ensure that the ultrasonic cleaner is operating at the correct frequency.
Is the YR05209 energy efficient?
Yes, the YR05209 operates at a power consumption of 70W, making it energy efficient for both home and professional use.
