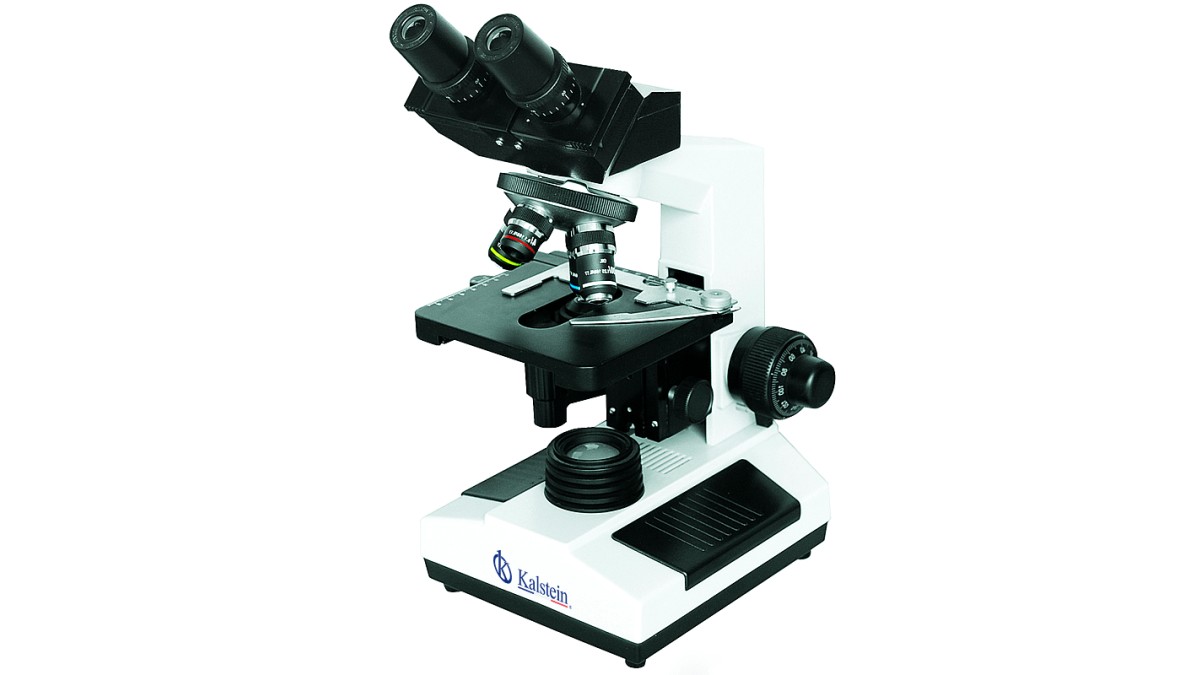

Practical Use of Binocular Student Biological Microscope YR0242 in Laboratories
The Binocular Student Biological Microscope YR0242 is an essential instrument designed for educational and laboratory environments. This microscope is ideal for students and educators who require reliable performance, ease of use, and versatile functionality. In this article, we will explore the practical applications of the YR0242, its market price, frequently asked questions, advantages and disadvantages, field usage, and recommendations for optimal use.
Product Description
The YR0242 microscope embodies a robust design with several notable features:
- Mold-resistant head system available
- Achromatic objectives with a 195 mm focal length and 160 mm mechanical tube length
- Wide field eyepieces of WF10x/18 mm and WF16x/11 mm
- Monocular, binocular, or trinocular head options
- Coaxial fine and coarse focus system with low position
- Double-layer mechanical stage
Technical Specifications
| Model | YR0242 (current) | YR0242-1 | |
| Magnification | 40x~1000x | ||
| Head | Sliding binocular head, inclined at 45° | Optional | |
| Sliding binocular head, inclined at 45°, mold-resistant system | Optional | ||
| Eyelens | Wide field WF10x/18mm | ||
| Revolver | Quadruple revolving nosepiece | ||
| Objective | Achromatic 4x/0.10, 10x/0.25, 40xs/0.65, 100xs/1.25 (oil) | ||
| Stage | Double-layer mechanical stage, 140*140 mm, movement range 50*75 mm | ||
| Focus | Coaxial fine and coarse focus. Fine focus scale 0.002 mm, coarse focus travel 37.7 mm/rotation, with tension adjustment, with upper limit | ||
| Rubber cover on the focus knob | Optional | ||
| Condenser | NA1.25 Abbe condenser, iris diaphragm, with filter holder | ||
| Filters | Blue, Yellow, Green | ||
| Light Source | Concave flat mirror | ||
| Built-in Halogen lamp 6V20W, 100~240V | |||
| Optional Accessories for YR0242 Biological Microscope | |||
| Head | Sliding trinocular head, inclined at 45°, mold-resistant system | YR0242-1-op1 | |
| Seidentopf binocular head, inclined at 30°, mold-resistant system | YR0242-1-op2 | ||
| Seidentopf trinocular head, inclined at 30°, mold-resistant system | YR0242-1-op3 | ||
| Eyelens | Wide field P16x/11 mm eyepiece | YR0242-1-op4 | |
| Revolver | Quintuple nosepiece | YR0242-1-op5 | |
Market Price
The current market price for the Binocular Student Biological Microscope YR0242 is approximately $155.00. This price reflects its exceptional value for educational institutions and laboratories that require quality optical instruments without exceeding budget constraints.
Technical Comparison
| Feature | YR0242 | YR0242-1 |
|---|---|---|
| Magnification | 40x~1000x | 40x~1000x |
| Head Type | Binocular | Trinocular/Seidentopf |
| Eyepiece | WF10x/18mm | P16x/11mm |
| Stage Type | Double-layer mechanical | Quintuple nosepiece |
| Light Source | Halogen 6V20W | Halogen 6V20W |
Frequently Asked Questions
What is the magnification range of the YR0242?
The YR0242 microscope offers a magnification range from 40x to 1000x, making it suitable for observing a variety of specimens.
Is the YR0242 suitable for beginners?
Yes, the YR0242 is designed for educational purposes and is ideal for beginners, as it is user-friendly and provides clear images.
What maintenance does the microscope require?
Regular cleaning of the lenses and proper storage in a dry place help maintain the quality and longevity of the microscope.
Can I use oil immersion with the YR0242?
Yes, the YR0242 supports oil immersion techniques with its 100x objective lens.
What types of specimens can I observe with this microscope?
The YR0242 is suitable for observing biological samples, such as cells, tissues, and microorganisms, as well as non-biological specimens for study.
Are there any optional accessories available for the YR0242?
Yes, there are several optional accessories available, including different head types, eyepieces, and a quintuple nosepiece, allowing customization based on specific needs.
Pros and Cons
Pros
- High-quality optics for clear imaging
- Wide magnification range suitable for various applications
- Robust and durable design
- User-friendly, making it ideal for educational settings
Cons
- Bulky design may not be suitable for portable use
- Limited advanced features compared to higher-end models
Field Usage
The Binocular Student Biological Microscope YR0242 finds extensive applications in various fields, particularly in educational settings. Schools and universities utilize this microscope for biology classes, allowing students to explore specimens directly. Additionally, research laboratories employ it for preliminary analysis of biological samples, ensuring that users can achieve quality results at an affordable price.
This microscope is particularly valuable in fields such as microbiology, histology, and environmental biology, where accurate observations of cellular structures and microorganisms are crucial. The ability to switch between objective lenses quickly further enhances its usability in rapid assessments and extensive studies.
Recommendations
For optimal use of the YR0242, we recommend the following:
- Ensure regular maintenance by cleaning the lenses and mechanical components.
- Utilize a stable and well-lit workspace for best visibility.
- Familiarize yourself with the focusing techniques to enhance observation quality.
- Consider optional accessories to customize the microscope for specific needs.
