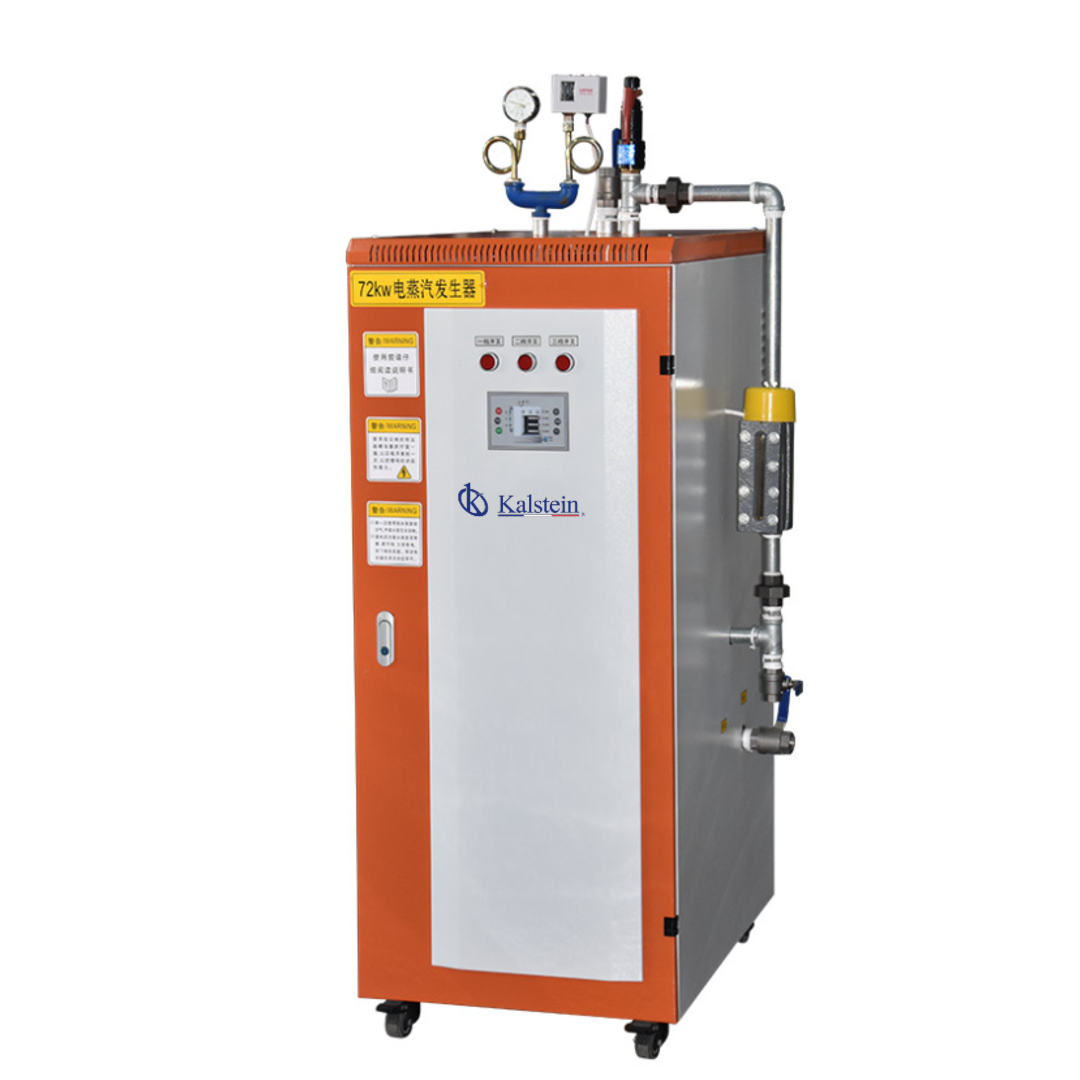

Understanding the Principle of Operation of the YR06672 Automatic Electric Steam Generator
The YR06672 Automatic Electric Steam Generator is engineered for efficient steam generation through electric heating technology. This article delves into the scientific principles and operational mechanisms that make this equipment essential in various industrial and laboratory applications.
Design and Technology of the YR06672
The YR06672 stands out for its advanced engineering focused on energy efficiency and ease of maintenance. Its unique water circulation design allows it to reach desired temperature and pressure in a remarkably short period. Key technological innovations include:
- Integrated Moisture Separator: Features a unique steam and moisture separator that guarantees steam quality with humidity ≤2%, outperforming similar market products.
- Flange Connections: Both the electrical section and the furnace use flange connections, significantly easing replacement, repair, and preventive maintenance tasks.
- Segmented Power Control: The electric heating tubes can be configured in segments, allowing for independent energy regulation to optimize electrical consumption based on process requirements.
Scientific Fundamentals Behind Steam Generation
The YR06672 operates based on the principles of thermodynamics, where water is converted into steam through the application of heat. The key formula governing this operation can be represented by the Clausius-Clapeyron equation. This equation describes the phase transition between the liquid and vapor states, providing insights into the pressure and temperature relationship, essential for the efficient operation of steam generators.
Moreover, the design choices, such as the integrated moisture separator, ensure that the steam produced is of high quality, maintaining minimal fluctuations, which is critical in laboratory processes where precise thermal control is paramount.
Technical Specifications of the YR06672
| Parameter | Characteristics |
|---|---|
| Model | YR06672 |
| Power (KW) | 48 |
| Evaporation Capacity (KG) | 65 |
| Design Temperature (°C) | 150 |
| Voltage (V) | 380 |
| Operating Pressure (Mpa) | 0.4 |
| Water Volume (KG) | 28 |
| Steam Pipe Diameter (mm) | DN15 |
| Dimensions (cm) | 50 x 65 x 105 |
| Gross Weight | 90 kg |
| Manufacturing Standard | GB / T10393-2002 |
| Steam Moisture | ≤ 2% |
| Connection Type | Flange |
Applications of the YR06672 in Industry
This steam generator is ideal for integration with Rotavapors in large-scale chemical and pharmaceutical industries, as well as in sterilization and vapor cleaning processes in hospitals or laboratories. Its capabilities provide a reliable source of high-quality steam essential for these applications.
In clinical labs, the precision of steam generation is crucial for successful outcomes in experiments and processes. The YR06672 ensures that the generated steam maintains a consistent quality, significantly reducing the risk of contamination and variability in experimental results.
Maintenance and Operational Recommendations
Regular maintenance is essential to uphold the performance of the YR06672. Recommended practices include periodic inspections of flange connections to ensure tightness and evaluating the condition of electric heating segments to maintain optimal energy efficiency. This proactive approach not only extends the lifespan of the equipment but also ensures reliable operation under demanding conditions.
Frequently Asked Questions
What is the stability of the pressure during operation of the YR06672?
The circulation system of the YR06672 is designed to prevent significant fluctuations in temperature and pressure, even while the unit is replenishing water, thereby ensuring consistent operation.
Can the output power of the YR06672 be regulated?
Yes, users can independently regulate the power segments to achieve more convenient settings and save energy based on process requirements.
What is the maximum operating temperature of the YR06672?
All models in this series are designed to reach temperatures up to 150°C, making them suitable for a variety of applications.
How does the integrated moisture separator improve steam quality?
The integrated moisture separator minimizes steam humidity to ≤2%, ensuring high-quality steam that meets the precise demands of laboratory and industrial processes.
What maintenance practices are recommended for the YR06672?
Regular inspections of flange connections and electric heating segments are crucial. Ensuring that these components are in good condition will help maintain efficiency and reliability.
How does the segmented power control feature work?
The segmented power control allows the electric heating tubes to be configured in segments, enabling independent regulation of energy use, which optimizes electrical consumption according to the specific needs of the process.
What are the environmental requirements for installing the YR06672?
The YR06672 requires an appropriate industrial electrical setup, with a voltage of 380V, and should be installed in a location that can accommodate its size and weight, ensuring proper ventilation and stability.
