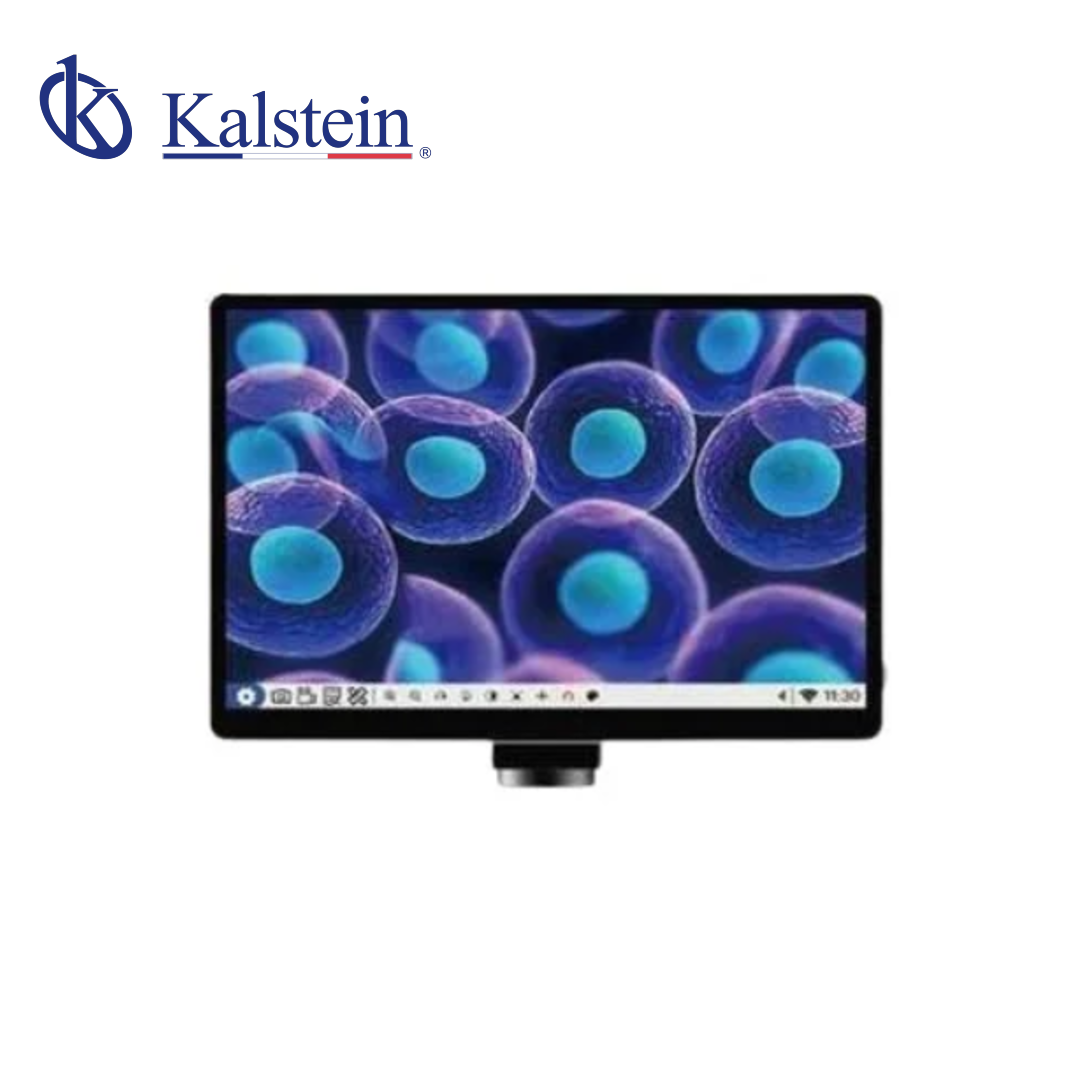

10.5-inch Android touchscreen digital camera YR06678
10.5-inch Android touchscreen digital camera YR06678 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.
The YR06678 is a state-of-the-art digital camera designed to transform conventional microscopes into intelligent, standalone workstations. Featuring a generous 10.5-inch touch screen and an integrated Android operating system, this 8.0 Megapixel camera completely eliminates the need for an external computer. It is targeted at research laboratory professionals, pathologists, and educators seeking an "all-in-one" solution to capture, measure, and share high-resolution microscopic images with an interface as intuitive as a tablet.
Design and Technology (or Functionality)
This equipment combines high-fidelity imaging hardware with the flexibility of a professional mobile device:- Retina High-Definition Display: A 10.5" capacitive touch screen providing sharp visualization and fluid control of the built-in microscopy software.
- Integrated Android System: Allows for app installation, file management, and wireless connectivity (Wi-Fi and Bluetooth) to share results instantly.
- 8.0 MP Sensor: Capable of capturing minute details and recording real-time video with excellent color reproduction.
- Versatile Connectivity: Includes USB ports for peripherals (such as a mouse or keyboard), an SD card slot for up to 128GB, and an HDMI output to project images onto large-format external screens.
Frequently Asked Questions (FAQ)
Can it be connected to any microscope? Yes, as long as the microscope has a trinocular port. It is recommended to use a C-Mount adapter (preferably 0.5x) to achieve the correct field of view.Do I need a PC to use the measurement software? No. The camera comes with pre-installed professional software that allows for measurements, annotations, and image adjustments directly on the touch screen.Can I transfer photos directly to my phone? Yes, thanks to Wi-Fi and Bluetooth connectivity, you can send files via email or file-transfer apps directly from the device.Advantages and Disadvantages (Pros and Cons)
Pros:- Total Autonomy: No PC required, saving significant workbench space.
- User-Friendly: Intuitive touch interface that minimizes the learning curve.
- Updatable: The Android system allows for easy software updates.
- Image Quality: 8.0 MP resolution is ideal for scientific publications.
- Power Dependency: As a tablet-based system, it requires constant power management for long sessions.
- Stability: Due to the large screen size, a stable microscope stand is necessary to prevent vibrations during touch operation.
Field Use and Recommendations
This device is exceptional for diagnostic clinics, university laboratories, and industrial quality control.- Recommendation: For academic presentations, use the HDMI output so students can see exactly what you are manipulating on the touch screen in real time.
- Practical Tip: Use a stylus for precision measurements on the screen and to avoid fingerprints that might cloud the view during analysis.
Technical Specifications
| Model | YR06678 |
| Sensor | 1/2.8 Inch CMOS |
| Resolution | 8.0 Megapixels (3840x2160) |
| Display | 10.5 Inch Retina Touch Screen |
| Operating System | Android 11.0 |
| Processor | Octa-Core 2.0GHz |
| RAM Memory | 4GB |
| Storage | 64GB (Expandable to 128GB via SD) |
| Output Interface | USB / HDMI / SD Card |
| Connectivity | Wi-Fi / Bluetooth |
| Included Software | Professional Capture and Measurement App |
| Mount Adapter | Standard C-Mount |
| Product Weight (kg) | 1.2 |
| Dimensions (mm) | 250x175x45 |
| Power Supply | DC 12V / 2A |
| Certifications | CE / FCC / RoHS |
Technical specifications
| Dimensions | L 250 × W 175 × H 45 cm |
|---|---|
| Weight | 1.2 kg |
| Manufacturer | Kalstein |
