Description

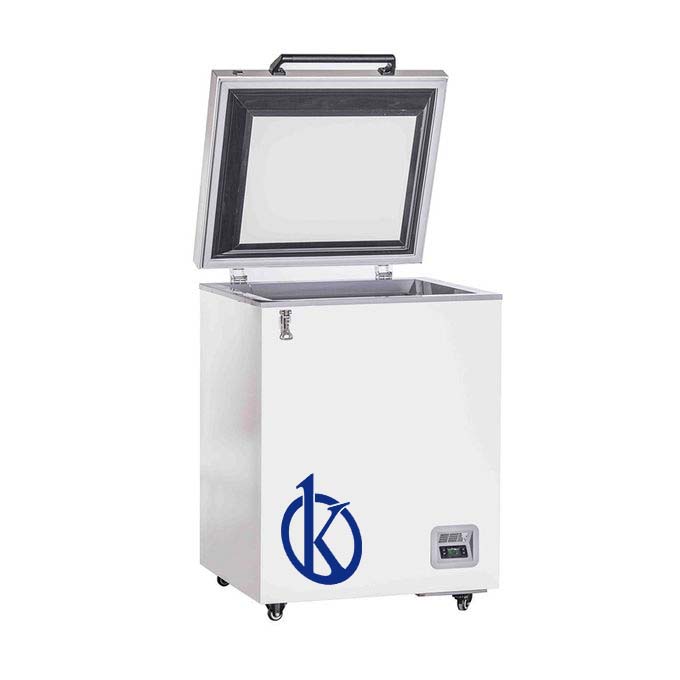

Chest medical freezer top open made of sprayed plate steel used in hospital and laboratory
Promed Deep Freezer are designed to store samples products.
Features
- Wide temperature range :10℃~32℃ambient temperature can reach -10℃～-25℃
- Accurate Temperature control technology to make the temperature maintain-10℃～-25℃and accuracy 0.1 °C.
- SPCC sprayed steel external material and inner chamber for friendly using and easy cleaning.
- High-density polyurethane foam(65mm)
Safety
- Build-in back-up battery to display temperature and to operate audible and visual alarm system for up to 12 hours without AC power.
- Visual and audible alarm system:High/low temperature,Sensor error, Thermostat failure alarm,power failure alarm
- Power failure protection: turn on delay of the cooling system when power failure,restart delay protection.
- Keyboard lock, password protection to avoid set parameter randomly.
- Wide available voltage range: 198V~242V.
Humanized design
- 4 casters,2 casters with stopper for easy moving and fixation.
- 1 Standard test hole(25mm),convenient for temperature monitoring.
Certificate
- ISO14001.ISO9001.ISO13485.ISO45001
- FDA List and CE
Warranty
- 1 year free spare parts and remote technical support.
Special
4 visual and audible alarms. 1 Standard test hole(25mm)
Technical Specifications
| Model | YR05316 |
| Performance | |
| Temperature Range | -10~-25°C |
| Ambient Temperature | +10~+32°C |
| Controller | Microprocessor |
| Display | Digital Display |
| Refrigeration System | |
| Compressor/Brand | 1/ |
| DONPER | |
| Refrigerant | R290 |
| Cooling Type | Direct cooling |
| Defrost Type | Manual |
| Electrical Data | |
| Power Supply(V/Hz) | 220~240V/50~60;115/60 |
| Rated Power(W) | 174 |
| Electrical Current(A) | 1.48 |
| Power Consumption | 1.59 kWh/24h |
| Dimensions | |
| Capacity | 105L |
| Interior Size(W*D*H) | 480*380*665mm |
| Exterior Size(W*D*H) | 615*570*880mm |
| Package Size(W*D*H) | 675*625*1000mm |
| N.t./G.t.(approx) | 41.8/54kg |
| Loading Qty(20’/40’/40’H) | 27/57/57 |
| Alarm | |
| High/Low Temperature | Y |
| Sensor Error | Y |
| Power Failure | Y |
| Accessories | |
| Caster | 4 |
| Remote alarm port | / |
| Test hole | 1/25MM |
