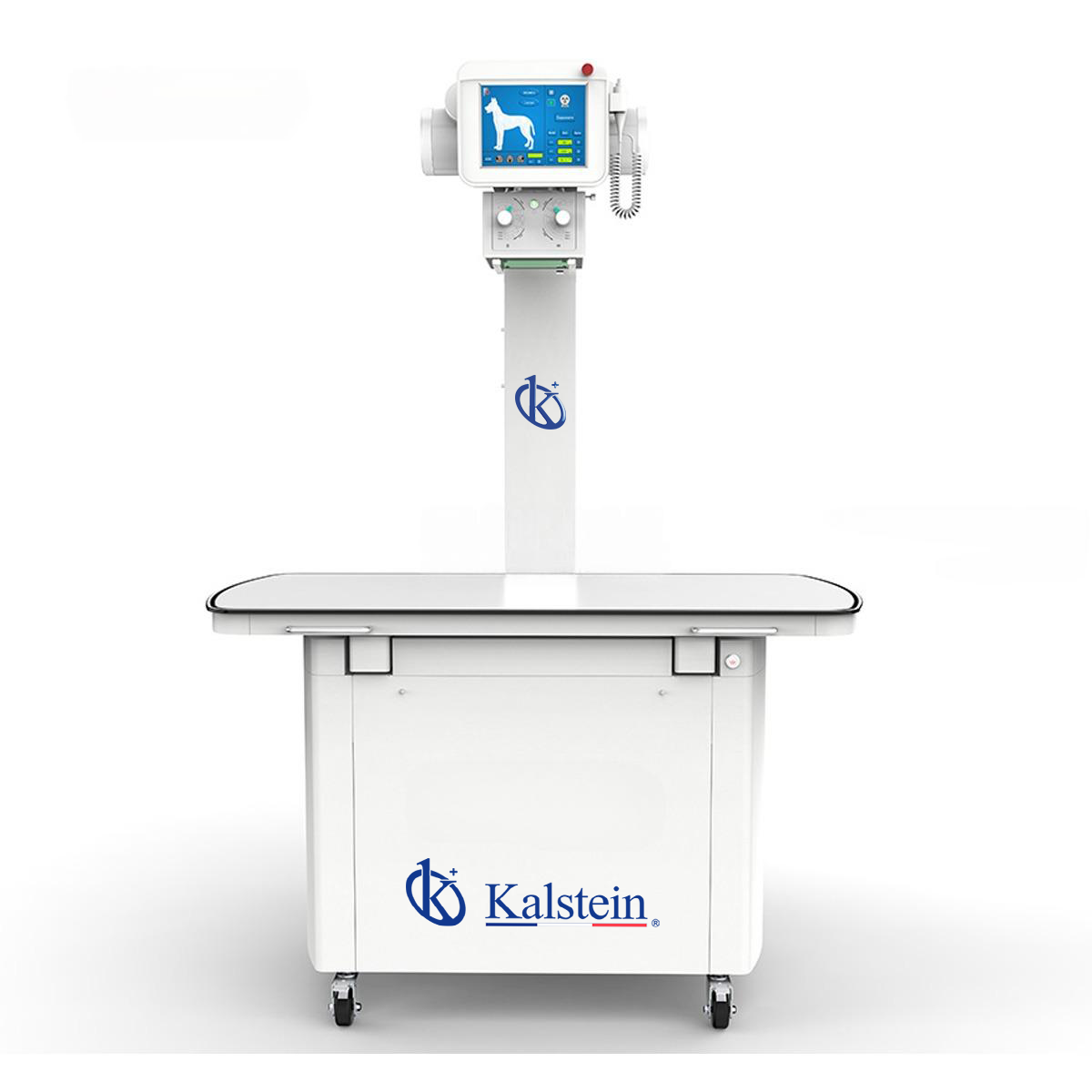

320mA Stationary Veterinary Digital X-Ray (DR) YR06163

The 320mA Stationary Veterinary Digital X-Ray (DR) YR06163 is a state-of-the-art imaging solution designed specifically for veterinary practices. This device features a soft touch user panel for intuitive operation, and its digital displays accurately present kV, mAs, and time settings, allowing for precise adjustments. Powered by a high-frequency inverter generator, the X-ray machine ensures consistent performance and minimal downtime. With built-in overload protection and self-manageable APR functions, this unit represents reliability and efficiency in veterinary radiography.

Market Price

The 320mA Stationary Veterinary Digital X-Ray (DR) YR06163 is positioned within the competitive range of high-end veterinary imaging devices. Prices for similar digital X-ray units typically fall between $35,000 and $36,300 USD in the market. To explore this product further and access exclusive pricing options, you can request a quote directly through Kalstein Plus.

Frequently Asked Questions

What animals can be X-rayed with this machine? This device is suitable for a wide range of animals, from small pets like cats and dogs to larger animals such as horses and cattle, depending on your clinic's specific needs. Is training required to operate the machine? Although it features an intuitive interface, initial training is recommended to fully understand the machine's capabilities and maximize its potential.

Advantages and Disadvantages

Advantages: High precision imaging, user-friendly interface, robust safety features, adaptable for various veterinary environments. Disadvantages: Requires initial setup and calibration by a technician, relatively high upfront investment.

Product Use in the Field

The YR06163 is used in veterinary clinics and hospitals for diagnostic imaging, enabling veterinarians to capture high-quality digital X-rays swiftly and analyze them efficiently. Its reliable performance and precise imaging help in diagnosing a wide range of conditions in animal patients.

Recommendations

To ensure optimal performance, regular maintenance checks and timely software updates are crucial. Invest time in learning the full range of functionalities to make the best use of the machine's capabilities.

Key Features

• Soft touch user panel
• Digital display of kV, mAs, and time
• High-frequency inverter generator
• Overload protection for kV, mA, time, and temperature
• Self-manageable APR function with memory keys

Technical Specifications

Model	YR06163
Maximum output power	20kW
Range of tube current	32~320mA
Tube voltage range of radiography	40kv~120kv
Range of exposure time	10ms~5000ms
mAs range	0.32mAs~320mAs
Input voltage range	AC 220V±22V
Communication interface	RS-232
Other	Capacity lock automatically, fault diagnosis automatically, self-protection
Max. Tube voltage	120kV
Focus	Small focus:1.0mm Large focus:2.0mm
Anode input power	Small focus:20KW Large focus:40KW
Anode speed	2800 R/M
Target angle	17.5°
Anode heat content	100kJ(140kHU)
