Description

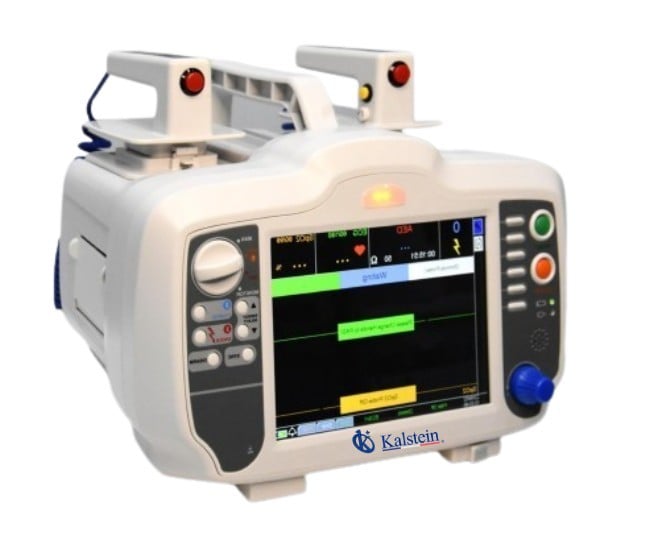

The YR06922 Automated External Defibrillator is an advanced solution for cardiac emergencies, specifically designed for easy and effective use in critical situations. With its high-resolution 8-inch LCD screen , this defibrillator clearly and accurately displays key parameters such as heart rate , SpO2 , alarms , and energy delivered. Furthermore, its 25 mm/sec scan speed ensures a rapid response in urgent situations.

The YR06922 uses biphasic defibrillation technology, allowing an adjustable energy range of 2 to 360 Joules , ensuring appropriate treatment based on the patient’s needs. With a rapid charge time of less than 7 seconds (with a new battery) and manual, AED, and synchronized (R-wave) operating modes , this defibrillator is designed to be versatile and effective in various emergency settings. Furthermore, the SpO2 module, with a measurement range of 30% to 100% and an accuracy of ±2% between 80% and 90%, ensures precise and reliable oxygenation monitoring.

Design and Technology (Functionality)

The YR06922 is a compact and easy-to-use defibrillator that combines advanced technology with an intuitive interface. Its 50 mm wide thermal recorder , with speeds of 12.5, 25, and 50 mm/sec, facilitates the printing of relevant data such as alarms and energy discharges , making it an ideal tool for recording and analyzing each intervention. Furthermore, its 12V rechargeable Ni-MH battery provides up to 60 maximum energy discharges or 3 hours of continuous ECG monitoring , ensuring long-lasting durability for field use.

With flexible ECG connections for 3- or 5-lead cables and reusable paddles , the YR06922 is suitable for both adults and pediatrics. Its heart rate range of 20–300 bpm and adjustable impedance of 0–250 ohms allow for comprehensive and effective monitoring of a wide range of patients.

Frequently Asked Questions:

1. What is the biphasic technology of the YR06922 defibrillator?
   The biphasic technology of the YR06922 allows energy to be delivered more efficiently, improving defibrillation success rates and reducing the risk of damage to the patient’s heart.
2. How long does the YR06922 battery last?
   The YR06922 has a battery life of up to 60 maximum energy discharges or 3 hours of continuous ECG monitoring. This makes it ideal for extended emergency situations.
3. Can I use it on children?
   Yes, the YR06922 is suitable for both adults and children, thanks to the external reusable blades available in pediatric and adult sizes.

Advantages and Disadvantages:

Advantages:

• Easy to use thanks to its high-resolution LCD screen and intuitive interface.
• Versatile operating modes : Manual, AED and synchronized (R wave) to suit different needs.
• Fast charging : Less than 7 seconds with a new battery, ensuring quick intervention.
• Extended autonomy : Up to 60 shocks or 3 hours of continuous ECG.

Disadvantages:

• Although the defibrillator is compact, its size may be a bit large for certain emergency environments with limited space.
• The thermal recorder may need paper replacement in situations of heavy use.

Product Use in the Field:

The YR06922 Automated External Defibrillator is ideal for use in hospitals , ambulances , pre-hospital settings , or emergency situations where a rapid and accurate response is required. Thanks to its synchronized operating modes and advanced technology , this defibrillator can be used in situations where a patient is in cardiac arrest, whether in a clinical or first aid setting , providing high-quality interventions . Furthermore, its long-lasting battery ensures it is always ready when needed, making it a reliable choice for rescue teams and emergency medical personnel .

Recommendations:

To maximize the performance of the YR06922 , it is important to ensure the device is always charged and in optimal condition before use. Replace the reusable paddles as needed, especially after each use, to maintain proper hygiene . Additionally, be sure to perform regular equipment tests to verify that all parameters are functioning correctly, such as heart rate , ECG , and alarms .

Technical Specifications
