Description

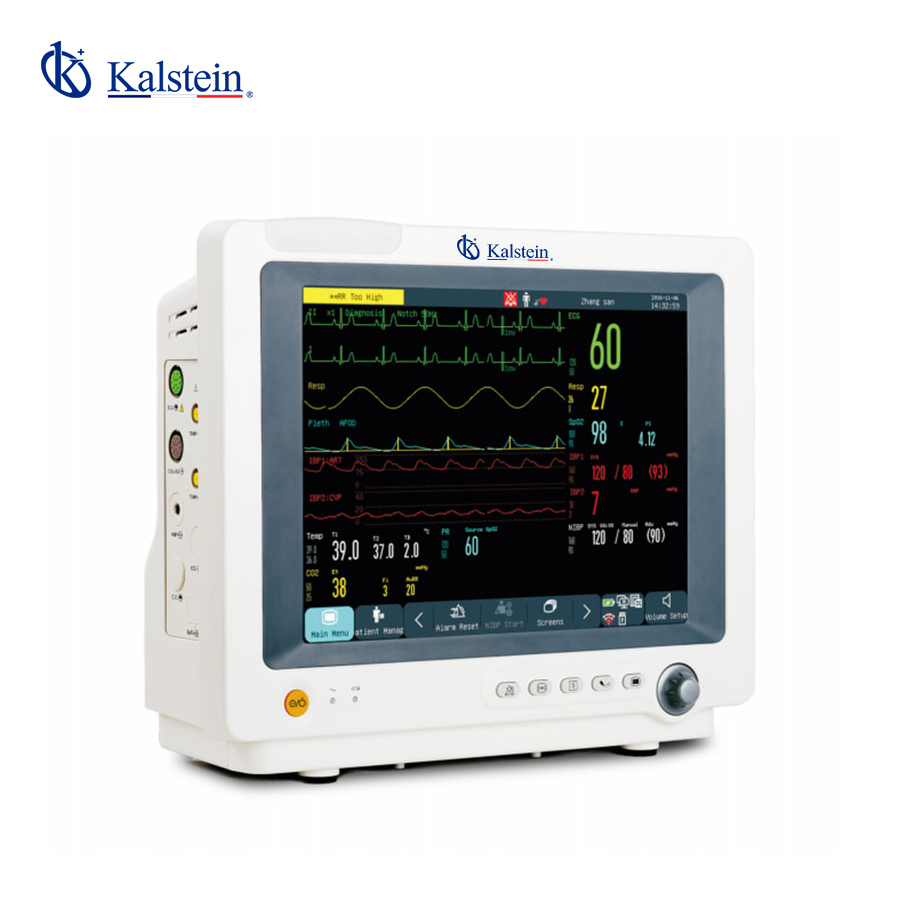

The Bedside Monitor YR02173 is a state-of-the-art monitoring device featuring a 12.1-inch touch screen designed to deliver precise and customizable patient monitoring. With its extensive suite of functionalities including 5-lead ECG, RESP, temperature measurements, and COMEN SpO2, this monitor stands as an essential tool in medical settings. It offers versatile compatibility with additional modules such as Dual-IBP, EtCO2, and various SpO2 configurations, ensuring adaptability and reliability for healthcare professionals.
Market Price Range
The market for premium bedside monitors offers a broad range of prices depending on the features and brand reputation. You can typically find high-quality monitors like the Bedside Monitor YR02173 priced between 2000 USD and 2800 USD. Despite the investment, the advanced functionalities and robust design make it a valuable acquisition for any medical facility. To explore flexible pricing options or to understand how this monitor fits your budget, don’t hesitate to request a quote through Kalstein Plus.
Frequently Asked Questions
What is the display size of the Bedside Monitor YR02173? The monitor features a 12.1-inch touch screen.
Is the device portable? Yes, the monitor can be mounted on a trolley or a wall, making it adaptable to various clinical settings.
Does it support advanced monitoring modules? Yes, it does. It supports modules like Dual-IBP, EtCO2, AG, ICG, and more.
Advantages and Disadvantages
The Bedside Monitor YR02173 provides numerous advantages such as precise monitoring, versatility in settings, and an intuitive interface. However, the main consideration is ensuring that all compatible modules and accessories are correctly integrated, which may require additional investment and setup time.
Usage in the Field
The monitor is especially useful in intensive care units where continuous and comprehensive monitoring is crucial. Its ability to support multiple monitoring channels and its flexible mounting options make it ideal for both large hospitals and smaller clinics. By keeping clinicians informed in real-time, it facilitates prompt and effective patient care.
Recommendations
For optimal performance, regularly update the device software and perform periodic maintenance checks. When integrating additional modules, consult with technical support to ensure proper installation and functionality. Regular training workshops for staff can maximize the effective use of the monitor.
Features
– 12.1-inch touch screen
– 5-lead ECG, RESP, Single Channel Temp, COMEN SpO2, NIBP, HR
– Support for Dual-IBP, EtCO2, AG, ICG, C.O., BIS
– Optional Nellcor/Masimo SpO2, 3/12-lead ECG, Thermal Recorder
– Dual-Temp, Suntech NIBP, Trolley, Wall mount options
Technical Specifications
| Model | YR02173 | |
|
ECG
|
Lead mode | 5 Leads(RA,LA,LL,RL,V) |
| Connection method | I, II, III,AVR,AVL,AVF,V | |
| Lead Mode | 3 Leads (RA,LA,LL) | |
| Connection method | I, II,III | |
| Waveform | 1ch | |
| Gain | 1.25, 2.5, 5.0, 10, 20, 40mm/mV, Auto. | |
| HR Range | Adult: 15~300bpm | |
| Neo/Ped | 15~350bpm | |
| Accuracy | ±1% or ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200(uVp-p) | |
| Differential input impedance | ≥5MΩ | |
| ST segment Monitoring Range | ||
| Measure Range | -2.0~+2.0mV | |
| Measure Accuracy | -0.8mV~+0.8mV | |
|
Heart Rate
|
Measuring range | 15~300bpm |
| Accuracy | ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200UVp-p | |
|
Respiration
|
Method | Impedance between R-F(RA-LL) |
| Differential Input Impedance | >2.5MΩ | |
| Measuring Impedance Range | 0.3~3.0 MΩ | |
| Base line Impedance Range | 200~4000Ω | |
| Bandwidth | 0.1~2.5Hz | |
| Respiration Rate | Adult: 2~120BrPM | |
| Neo/Ped | 0~150BrPM | |
| Resolution | 1 BrPM | |
| Accuracy | ±2 BrPM | |
| Alarm | 10~40S | |
|
NIBP
|
Method | Oscillometric |
| Mode | Manual/Auto/STAT | |
| Measuring Interval in AUTO Mode | 1,2,3,4,5,10,15,30,60,90,120,180,240,480(Min) | |
| Measuring Period in STAT Mode | 5 Min | |
| Pulse Rate Range | 40~240bpm | |
| Alarm Type | SYS, DIA, MEAN | |
| Resolution | ||
| Pressure | 1mmHg | |
| Accuracy | Maximum Mean error: 5mmHg | |
| Maximum Standard deviation | 8mmHg | |
|
SPO2
|
Display | Number of SPO2,waveform of capacity,Pulse |
| Measuring range | 0~100% | |
| Resolution | 1% | |
| Accuracy | 60~100% (±2%) | |
| Alarm system | Audio-video alarm | |
| Pulse rate range | 0~300bpm | |
|
TEMP
|
Channel | 2 |
| Measuring and Alarm Range | 0~50ºC | |
| Resolution | 0.1ºC | |
| Accuracy | 0.1ºC | |
| Actualization interval | About 1 Second. | |
| Average Time Constant | <10 Second. | |
