Description

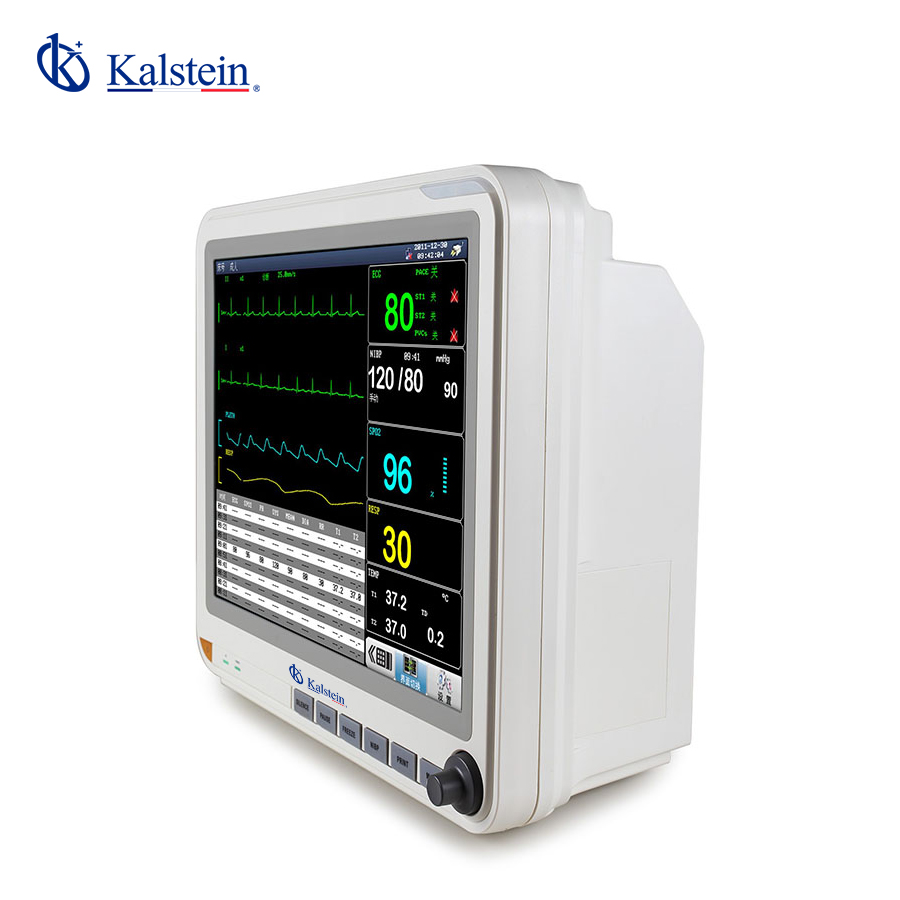

The Bedside Monitor YR02174 is an advanced 15-inch multi-parameter patient monitor designed to deliver comprehensive and accurate patient data. With its standard configuration including SpO2, RESP, NIBP, PR/HR, ECG, and two temperature channels, this monitor ensures reliable patient monitoring. Additionally, it offers optional features such as a 12-lead ECG, IBP, ETCO2, and more, making it a versatile choice for various medical needs.
Market Pricing
In the competitive market of bedside monitors, the Bedside Monitor YR02174 is attractively priced within a range of approximately 900 USD to 1,500 USD. This range offers a balance between cost and the extensive features provided, catering to both budget-conscious facilities and those seeking advanced monitoring capabilities.
Frequently Asked Questions
Is the monitor compatible with a wall mount or trolley? Yes, the Bedside Monitor YR02174 can be equipped with a wall mount or trolley for ease of use.
Does it include a printer? A printer is available as an optional feature.
Advantages and Disadvantages
The Bedside Monitor YR02174 offers significant advantages, such as comprehensive monitoring capabilities, customizable options, and clear display. However, one potential drawback could be the learning curve associated with its advanced features.
Product Use in the Field
This monitor is ideal for use in hospital settings, providing critical patient data in real-time. Its versatility allows healthcare professionals to tailor monitoring to specific patient needs, ensuring optimal care.
Recommendations
To maximize the use of the Bedside Monitor YR02174, it is recommended to regularly update its software and perform routine maintenance checks. Users should also familiarize themselves with its features to fully capitalize on its capabilities.
Features
- 15-inch multi-parameter display
- Standard configuration with SpO2, RESP, NIBP, PR/HR, ECG, 2-TEMP
- Options include 12-lead ECG, IBP, ETCO2, printer, wall mount, trolley, and touch screen
Technical Specifications
| Model | YR02174 | |
|
ECG
|
Lead mode | 5 Leads(RA,LA,LL,RL,V) |
| Connection method | I, II, III,AVR,AVL,AVF,V | |
| Lead Mode | 3 Leads (RA,LA,LL) | |
| Connection method | I, II,III | |
| Waveform | 1ch | |
| Gain | 1.25, 2.5, 5.0, 10, 20, 40mm/mV, Auto. | |
| HR Range | Adult: 15~300bpm | |
| Neo/Ped | 15~350bpm | |
| Accuracy | ±1% or ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200(uVp-p) | |
| Differential input impedance | ≥5MΩ | |
| ST segment Monitoring Range | ||
| Measure Range | -2.0~+2.0mV | |
| Measure Accuracy | -0.8mV~+0.8mV | |
|
Heart Rate
|
Measuring range | 20~300bpm |
| Accuracy | ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200UVp-p | |
|
Respiration
|
Method | Impedance between R-F(RA-LL) |
| Differential Input Impedance | >2.5MΩ | |
| Measuring Impedance Range | 0.3~3.0 MΩ | |
| Base line Impedance Range | 200~4000Ω | |
| Bandwidth | 0.1~2.5Hz | |
| Respiration Rate | Adult: 2~120BrPM | |
| Neo/Ped | 0~150BrPM | |
| Resolution | 1 BrPM | |
| Accuracy | ±2 BrPM | |
| Alarm | 10~40S | |
|
NIBP
|
Method | Oscillometric |
| Mode | Manual/Auto/STAT | |
| Measuring Interval in AUTO Mode | 1,2,3,4,5,10,15,30,60,90,120,180,240,480(Min) | |
| Measuring Period in STAT Mode | 5 Min | |
| Pulse Rate Range | 40~240bpm | |
| Alarm Type | SYS, DIA, MEAN | |
| Resolution | ||
| Pressure | 1mmHg | |
| Accuracy | Maximum Mean error: 5mmHg | |
| Maximum Standard deviation | 8mmHg | |
|
SPO2
|
Display | Number of SPO2,waveform of capacity,Pulse |
| Measuring range | 0~100% | |
| Resolution | 1% | |
| Accuracy | 70~100% (±2%) | |
| Alarm system | Audio-video alarm | |
| Pulse rate range | 0~300bpm | |
|
TEMP
|
Channel | 2 |
| Measuring and Alarm Range | 0~50ºC | |
| Resolution | 0.1ºC | |
| Accuracy | 0.1ºC | |
| Actualization interval | about 1 Second. | |
| Average Time Constant | <10 Second. | |
