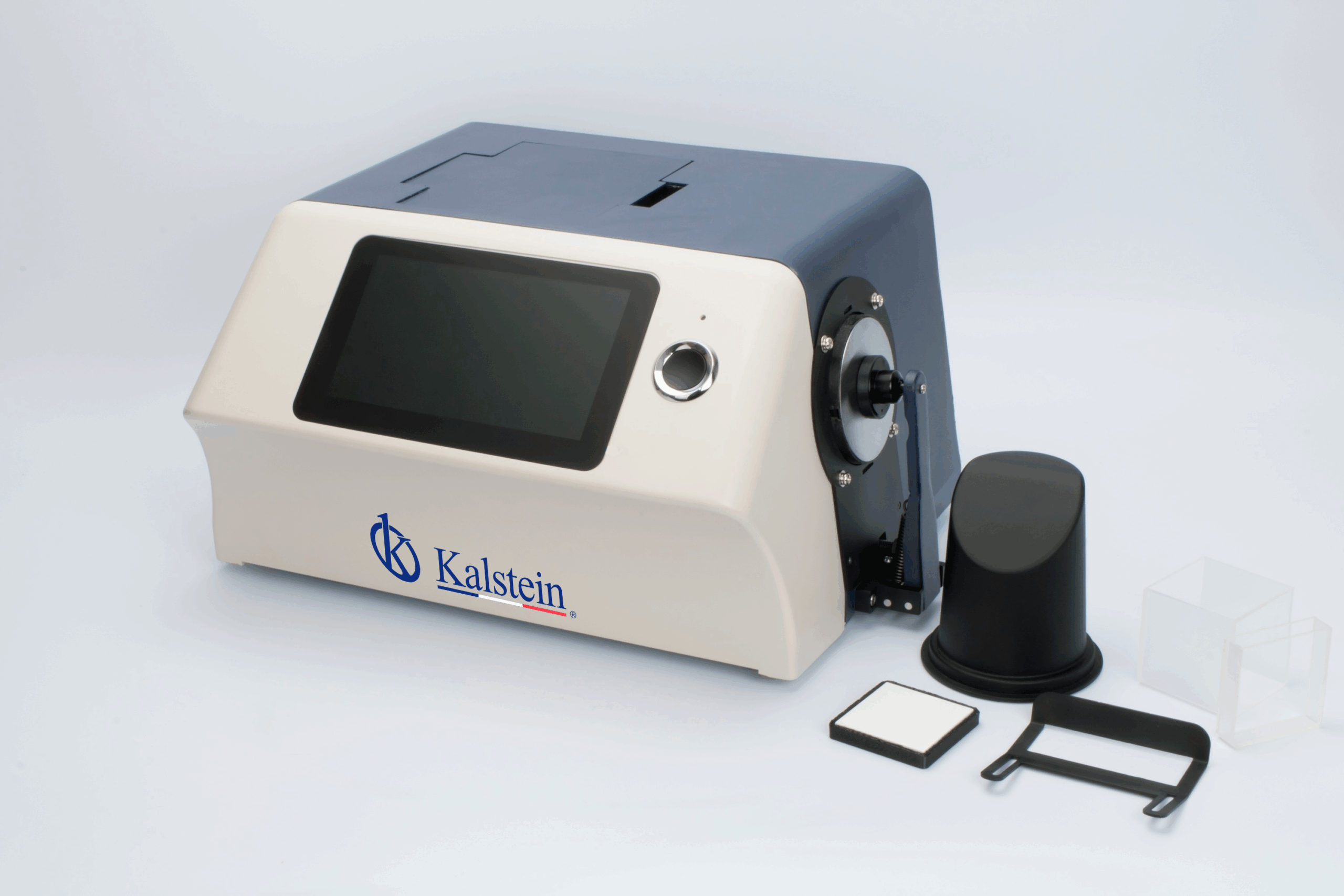

Benchtop Color Haze Meter YR05479

Manufacturer: Kalstein

Description

The Benchtop Color Haze Meter YR05479 by Kalstein is a cutting-edge instrument designed to measure haze, transmittance, and chromaticity across various materials. Engineered with patented technology, this meter features d/0 transmittance optical geometry and complies with international standards CIE 15 and ASTM D1003/1044, ensuring the utmost precision. The advanced full-spectrum LED light source (360-780 nm) and 256-element CMOS sensor deliver detailed, consistent results for materials such as glass, plastics, and films. Its user-friendly 7-inch capacitive touchscreen enhances interaction and real-time data display, making it an indispensable tool for laboratories and industrial applications.

Market Price

The YR05479 haze meter is strategically priced, offering excellent value between $8,000 and $8,800 USD. This competitive pricing makes it a highly attractive choice for laboratories and production lines focused on maintaining quality control precision and stability. For a tailored quote based on your specific requirements, we invite you to utilize our Kalstein Plus platform, where you can request a detailed proposal.

Frequently Asked Questions

  • Is this meter suitable for industrial applications?
    Yes, it is designed for use in both industrial and laboratory environments, particularly for processing plastics, glass, and packaging.
  • How much data storage capacity does it have?
    The YR05479 can store up to 25,000 records, with 5,000 in standard mode and 20,000 in sample mode.
  • What indices can the YR05479 measure?
    It measures haze, transmittance, Pt-Co index, Gardner index, and more, ensuring precise and stable readings.

Advantages and Disadvantages

The YR05479 color haze meter boasts several advantages, including high precision, adjustable settings for various light sources (A, C, D65), and the ability to continuously monitor light and temperature conditions, enhancing result reliability. However, given its advanced technology, regular calibration in high-use environments may be necessary to maintain optimal accuracy.

Field Use

This instrument is ideal for industrial scenarios like display screen manufacturing, plastic material processing, and analyzing liquid pharmaceutical products, where precision in measuring haze and transmittance is crucial. Its LED lighting system and CMOS sensor guarantee consistent and accurate results, making it a vital component in quality control for visually demanding products.

Recommendations

To maximize the YR05479 meter’s accuracy, periodic calibrations are recommended, along with storage in controlled environments. This ensures the longevity of the LED light source and sensor. Its configuration accommodates measurement adaptations according to sample type and required color space, thus extending its applicability to diverse scenarios. We encourage you to request a personalized quote via Kalstein Plus today and see how the YR05479 desktop color haze meter can improve your quality control processes in both laboratory and production settings.

Features

Key features include transmittance optical geometry, advanced full-spectrum LED light source, 256-element CMOS sensor, and a 7-inch capacitive touchscreen. These make the YR05479 perfect for a wide range of applications, delivering exceptional precision and value.

Technical Specifications

YR05479 Benchtop Color Haze Meter
Model YR05479
Optical Geometry Transmittance:d/0 (diffused illumination, 0-degree viewing angle);

similar to CIE15 standard 0/0(parallel illumination, 0-degree viewing angle);

Confirms to the standard of ASTM D1003/1044, CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ASTM E308, DIN5033 Teil7

Application wildly used in the field of glass processing, plastic processing, film manufacturing, display screen processing and packaging industry, liquid pharmaceutical analysis, laboratory etc.
Integrating Sphere Size Φ154mm
Light Source 360~780nm Combined LED Lamp
Spectral Separation Device Concave-Grating
Detector 256 Image Element Double Array CMOS Image Sensor
Wavelength Range 360~780nm
Wavelength Pitch 10nm
Half Bandwidth 10nm
Reflectance Range 0~200%
Measurement Aperture Transmittance: Φ25.4mm
Color Spaces CIE LAB,XYZ,Yxy,LCh,CIE LUV,Musell,s-RGB,HunterLab,βxy,DIN Lab99
Color Difference Formulas ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter)
Other Colorimetric Data Haze (ASTM D1003/1044),transmittance rate T,

WI(ASTM E313,CIE/ISO,AATCC,Hunter),

YI(ASTM D1925,ASTM 313),

MI(Metamersim Index ),

Color Strength, Staining fastness,Color Strength, Opacity,

Pt-Co index and Gardner index

Observer Angle 2°/10°
Illuminant D65,A,C,D50,D55,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12
Display Data Spectral/Values, Chromaticity Values, Color Difference Values/Graph,Color Diagram, Color Simulation, Pass/ Fall Result, Color Offset
Measurement Time About 1.5s
Repeatability Spectral transmittance: for test transmission reference white within ΔE*ab 0.05% (400~700nm: within 0.04%);

Chromaticity Data: Φ25.4mm,within ΔE*ab 0.03 (after do warm-up and calibration, it is the average value to measure transmission reference white plate for 30 times at 5 second intervals)

Inter-instrument Agreement Φ25.4mm,within ΔE*ab 0.15 (average value for 5 pcs standard transmittance color plates measurement )
Size 370X300X200mm(L*W*H)
Weight About 9.6kg
Power DC 24V,3A Power Adapter
Illuminant Life Span 5 years, more than 3,000,000 times measurement
Screen 7-inch TFT Capacity Touch Screen Display
Interface USB,Printing Port
Storage Standard:5000; Sample:20000
Language Simplified Chinese, Traditional Chinese, English
Working Temperature 0~40℃(32~104°F)
Storage Temperature -20~50℃(-4~122°F)
Standard Accessory Power Adapter, User Manual, QC software(please download from website), USB cable, reflectance white and black board, transmittance black board, 25.4mm aperture, transmissive test component
Optional Accessory Miniature- printer
Note The specifications are subject to change without notice.

Additional information

Weight 12,5 kg
Dimensions 51 × 45 × 33 cm
