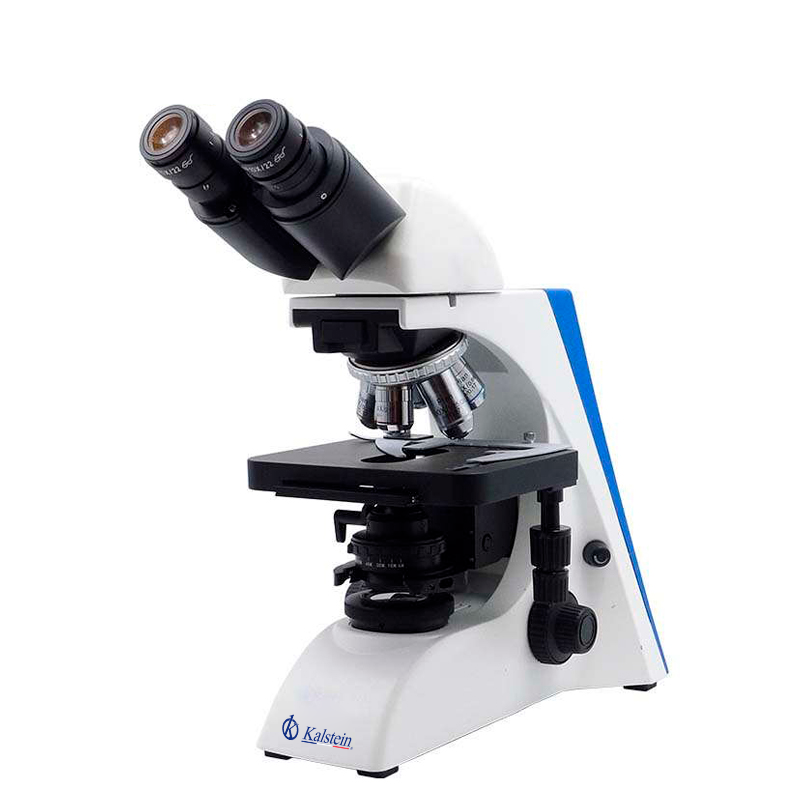

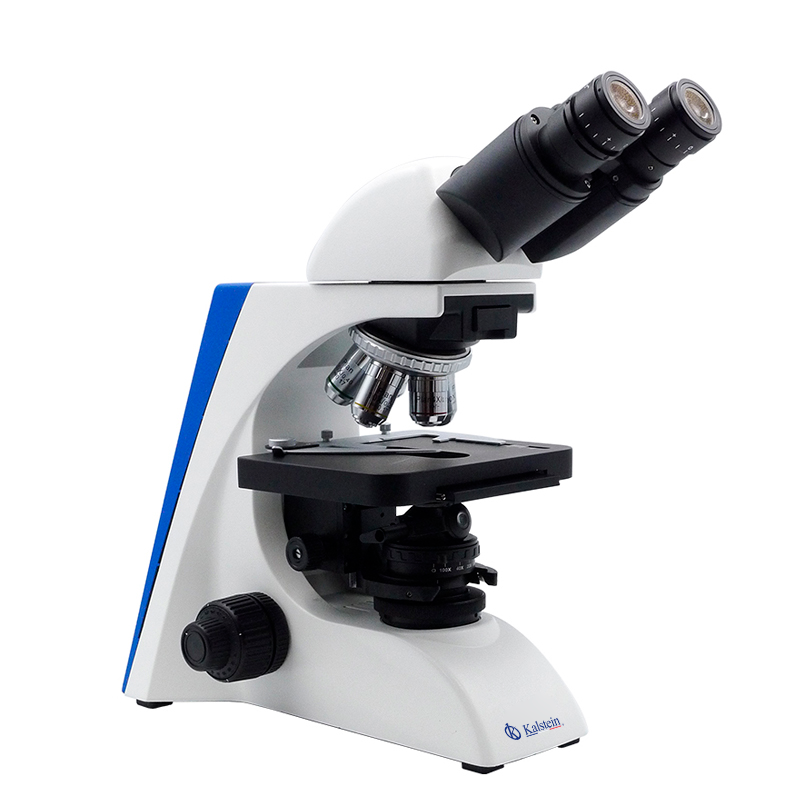

Binocular Biological Laboratory Microscope YR05789 - YR05790

• Head Upgrade to large size with eyepiece tube dia.30.30mm
• Eyepiece upgrade to dia.30mm Diopter adjustable
• Standard objectives upgrade to 5 pcs with 20x
• Working stage upgrade to large size reckless 182x140mm
• Condenser upgrade to swing out condenser N.A.0.9/0.13
• Light Source Upgrade to 6V30W High brightness + Blue filter

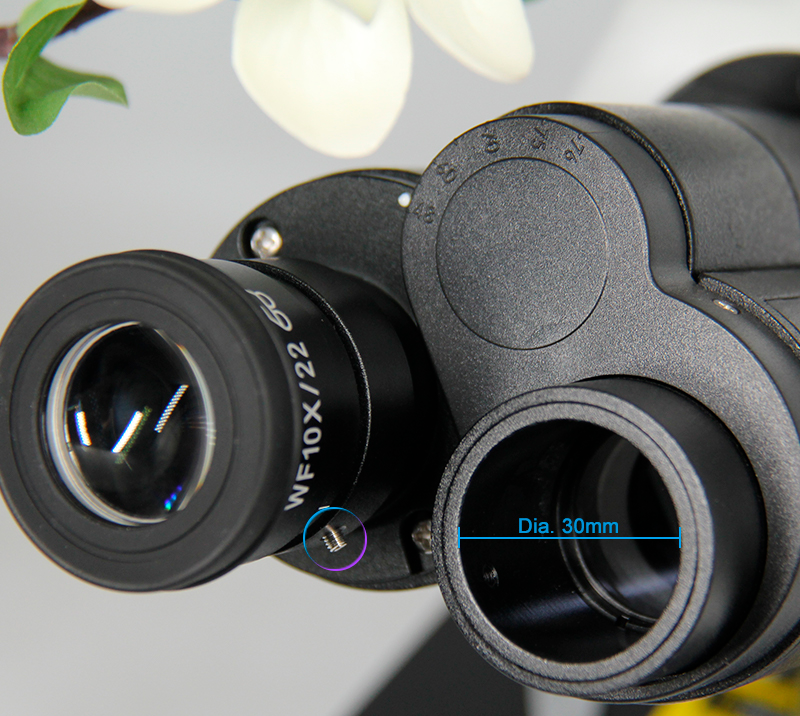

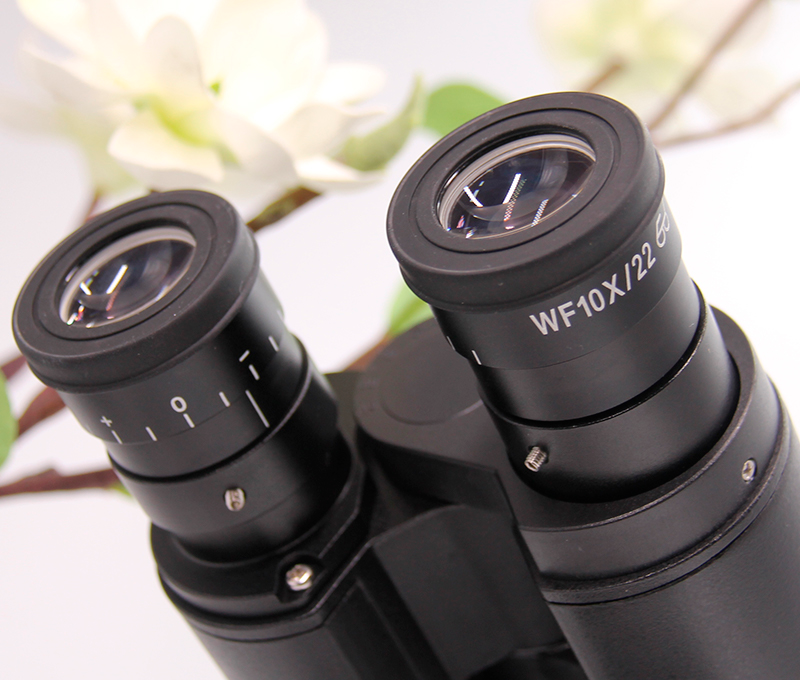

• Super Wide Field Eyepiece SWF10x/22mm, Eyepiece Dia.30mm Diopter Adjustable

The Eyepiece Tube Has Fix Screw

To Prevent Eyepiece Falling Damage During Move

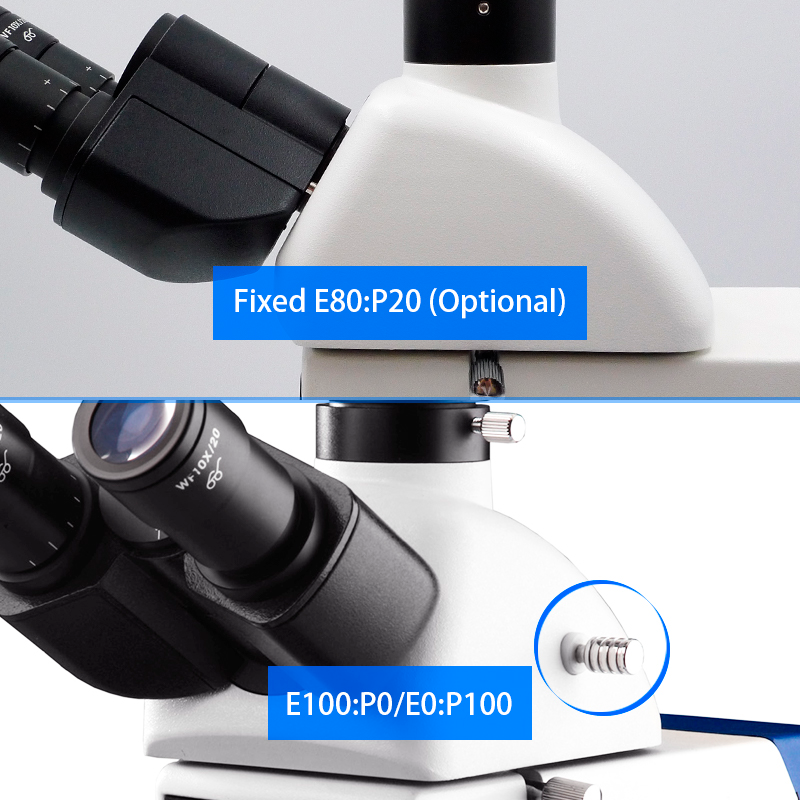

Head Light Split Optional Between Switch E100:P0/E0:P100 And Fixed E80:P20

In Fixed Light Split, Eyepiece 80% : Photo 20% User Can View Image At Same Time In Both Path In Switch Light Split, Eyepiece 100%:Photo 0% / Eyepiece 0%:Photo 100%, Camera Can Have 100% Light For Photo Capture.

Abbe Condenser N.A.1.25

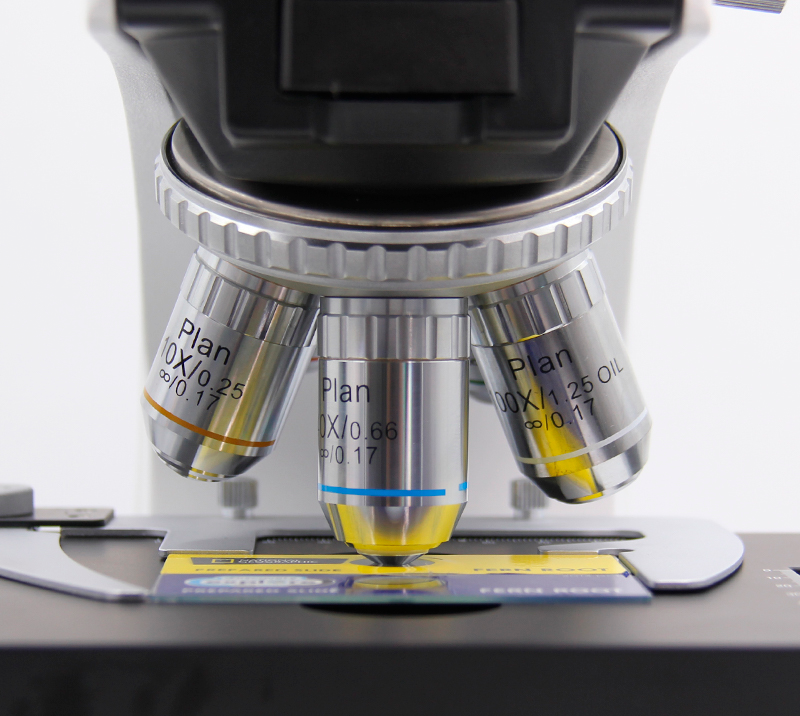

Large Size High Precision Quintuple Nosepiece, With Polarizing Analyzer Slot, Infinity Plan Objective 4x,10x,20x,40x,100x Available Creative 100X Water Objective (Optional) Instead Of 100X Oil Objective, More Convenient For Using & Cleaning After Use

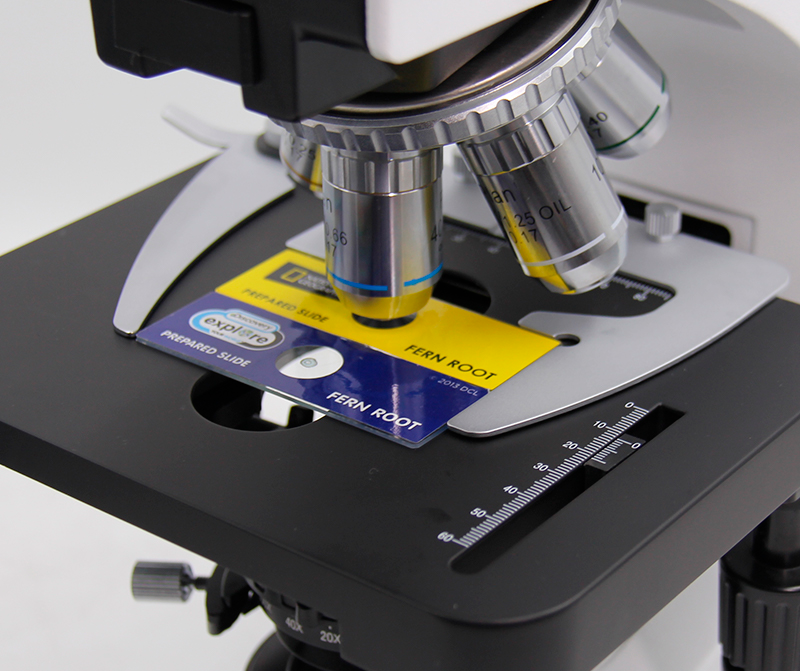

Rackless (Integrated) Mechanical Stage

Large Size 182×140mm, Double Slide Holder, Travel Range 77×52mm

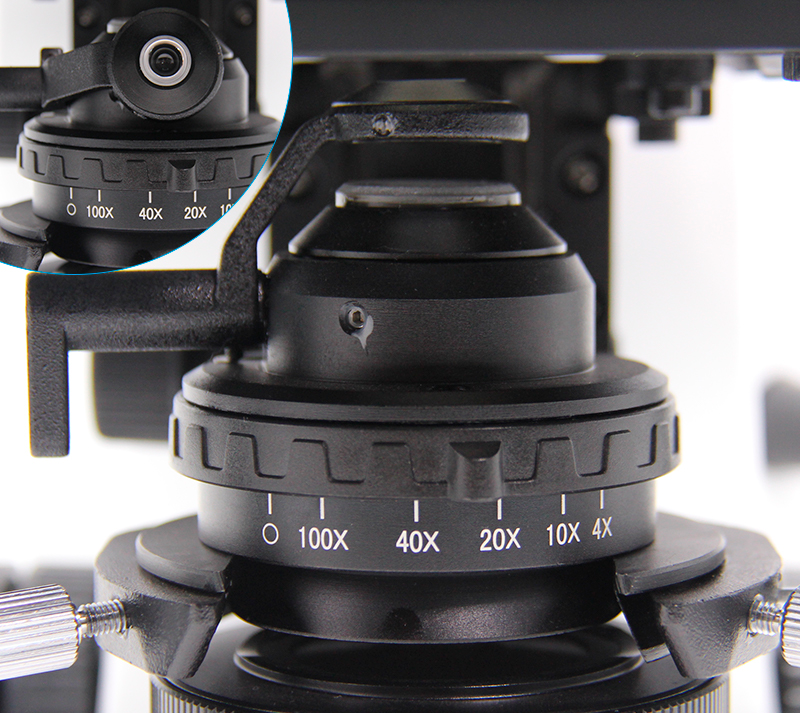

Swing-out Condenser,N.A.0.9/0.13,Iris Diaphragm

Control The Amount Of Light According To Demand, The Effect Is More Perfect.

Technical Specifications

Model		YR05789	YR05790	Cata. No.
Upgrade	--Head Upgrade To Large Size With Eyepiece Tube Dia.30mm
	--Eyepiece Upgrade To Dia.30mm Diopter Adjustable
	--Standard Objectives Upgrade To 5 pcs With 20x
	--Working Stage Upgrade To Large Size Rackless 182x140mm
	--Condenser Abbe N.A.1.25 Upgrade To Swing Out Condenser N.A.0.9/0.13
	--Light Source Upgrade to 6V30W High Brightness + Blue Filter
Head	Seidentopf Binocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-76mm,	●	○	YR05789-op1
	Eyepiece Tube Dia.30mm
	Seidentopf Trinocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-76mm, Light Split Switch E100:P0/E20:P80,	○	●	YR05789-op2
	Eyepiece Tube Dia.30mm
Eyepiece	WF10x/22mm,Dia.30mm, High Eyepoint, Diopter Adjustable	●●	●●	YR05789-op3
Nosepiece	Quintuple	●	●	YR05789-op4
Infinity Plan Objective	PLAN 2.5X/0.07,W.D.=8.47mm	○	○	YR05789-op5
	PLAN 4X/0.10,W.D.=12.10mm	●	●	YR05789-op6
	PLAN 10X/0.25,,W.D.=4.64mm	●	●	YR05789-op7
	PLAN 20X/0.40(S),W.D.=2.41mm	●	●	YR05789-op8
	PLAN 40X/0.66(S),W.D.=0.65mm	●	●	YR05789-op9
	PLAN 60X/0.80(S),W.D.=0.33mm	○	○	YR05789-op10
	PLAN 100X/1.25(S,Oil),W.D.=0.12mm	●	●	YR05789-op11
	PLAN 100X/1.15(S,Water),W.D.=0.19mm	○	○	YR05789-op12
Working Stage	Rackless (Integrated) Mechanical Stage, Size 182×140mm, Travel Range 77×52mm, Double Slide Holder	●	●	YR05789-op13
	Mechanical Stage Size 175 mm×145mm, Travel 76mmX52mm, Scale: 0.1mm, Double Slide Holder	○	○	YR05789-op14
Focusing	Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 22mm, Fine Focusing Div. 0.002mm	●	●	YR05789-op15
Condenser	Swing-out Condenser,N.A.0.9/0.13,Iris Diaphragm	●	●	YR05789-op16
Illumination	6V30W Halogen Koehler Illumination, With Field Diaphragm	●	●	YR05789-op17
	Power Supply Wide Voltage 100V~240V
	3W LED Koehler Illumination, Field Diaphragm	○	○	YR05789-op18

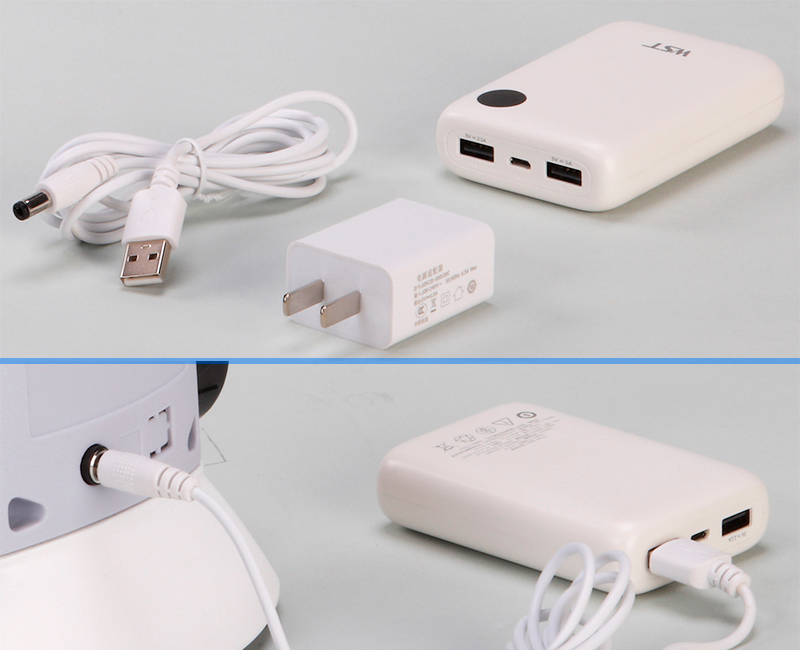

	Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use
Field Diaphragm	For Kohler Illumnation	●	●	YR05789-op19
Power	ECO, Auto Power Off System.	○	○	YR05789-op20
	Power Off Automatically Upon User Leaving 10 Minutes,
	Power On Automatically Upon User Approaching Detected,
	This Function Can Be Shut Down Manually
Filter	Dia.45mm, Blue	●	●	YR05789-op21
	Dia.45mm, Green	○	○	YR05789-op22
	Dia.45mm, Yellow	○	○	YR05789-op23
Dark Field	Dark Field Condenser, Dry, N.A.0.83-0.91, For 4x10x40x Objective	○	○	YR05789-op24
	Dark Field Condenser, Immersion, N.A.1.3, For 100x Objective			YR05789-op25
Polarizing	Analyzer + Polarizer Set	○	○	YR05789-op26
Phase Contrast	Infinity Plan Phase Contrast Objective 10x + Phase Contrast Slide 10x + Phase Contrast Condenser + Telescope 11x + Green Filter	○	○	YR05789-op27
	Infinity Plan Phase Contrast Objective 20x + Phase Contrast Slide 20x + Phase Contrast Condenser + Telescope 11x + Green Filter	○	○	YR05789-op28
	Infinity Plan Phase Contrast Objective 40x + Phase Contrast Slide 40x + Phase Contrast Condenser + Telescope 11x + Green Filter	○	○	YR05789-op29
	Infinity Plan Phase Contrast Objective 100x + Phase Contrast Slide 100x + Phase Contrast Condenser + Telescope 11x + Green Filter	○	○	YR05789-op30
	Turret Phase Contrast Attachment	○	○	YR05789-op31
Fluorescence	Upgrade to A16.2604-T2 Fluorescence Microscope With A5F.2601-2: B,G China Fluorescent Set 100W Mercury Lamp House 100W Mercury Power Box, Digital Disp. 6 Holes Disc Fluorescent Unit Ultraviolet Protection Barrier Centering Objective China 100W Mercury Lamp 2 pcs		○	YR05789-op32
	Upgrade to A16.2604-T4 Fluorescence Microscope With A5F.2601-4: B,G,U,UV China Fluorescent Set 100W Mercury Lamp House 100W Mercury Power Box, Digital Disp. 6 Holes Disc Fluorescent Unit Ultraviolet Protection Barrier Centering Objective China 100W Mercury Lamp 2 pcs		○	YR05789-op33
	Upgrade to A16.2604-LT2 Fluorescence Microscope With A5F.2602-2: B,G China Fluorescent Set 6 Holes Disc Fluorescent Unit 5W LED Lamp House 5W LED Power Box Ultraviolet Protection Barrier		○	YR05789-op34
	Upgrade to A16.2604-LT4 Fluorescence Microscope With A5F.2602-4: B,G,U,UV China Fluorescent Set 6 Holes Disc Fluorescent Unit 5W LED Lamp House 5W LED Power Box Ultraviolet Protection Barrier		○	YR05789-op35
Adapter	C-Mount 0.5x, Focus Adjustable	○	○	YR05789-op36
	C-Mount 0.75x, Focus Adjustable	○	○	YR05789-op37
	C-Mount 1.0x, Focus Adjustable	○	○	YR05789-op38
	Digital Eyepiece Camera Adapter, Dia. 23.2mm/25mm	○	○	YR05789-op39
Package	Carton Size 520×475×285mm, 1 Unit/Ctn
Weight	Gross Weight: 12 kgs, Net Weight: 10 kgs
