Binocular Infinity Plan Laboratory Biological Microscope YR05787 - YR05788
Binocular Infinity Plan Laboratory Biological Microscope YR05787 - YR05788 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.

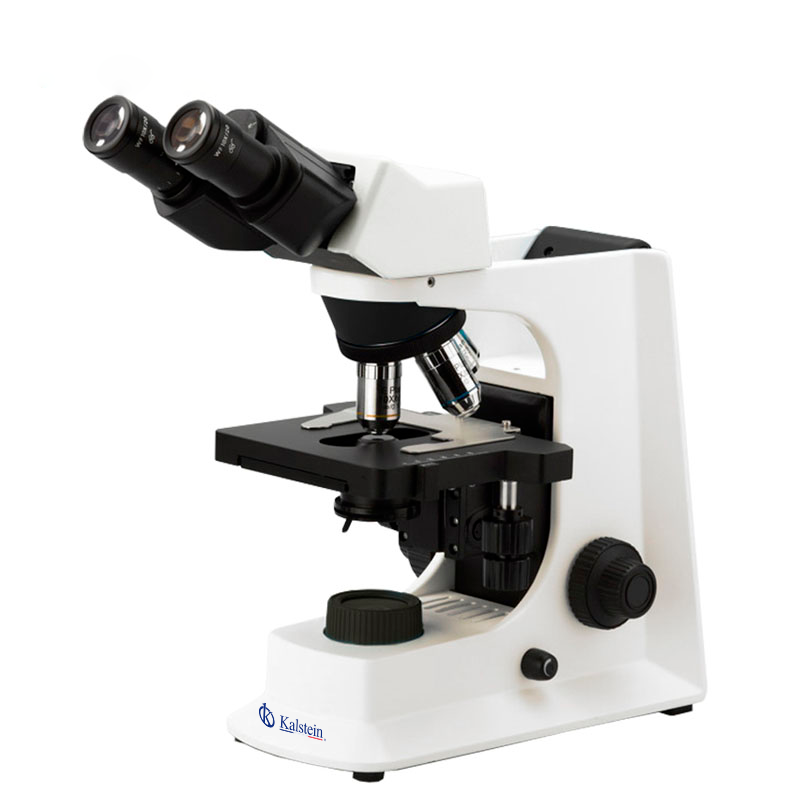

The Binocular Infinity Plan Laboratory Biological Microscope YR05787 - YR05788 is an advanced tool designed for precise and detailed observation. This microscope features a 30° inclined Seidentopf binocular head that rotates 360°, accommodating a wide interpupillary distance of 48-75mm, ideal for comfortable extended use. The high eyepoint eyepiece is particularly beneficial for users with glasses. It integrates a quad or quintuple backward nosepiece option, providing versatility with its infinity plan objectives ranging from 2.5x to 100x. The mechanical stage ensures precise control, and the 3W-LED illumination provides bright and even light across the specimen.
Price in the Market
The market price for laboratory microscopes like the Binocular Infinity Plan Laboratory Biological Microscope varies depending on features and specifications. Generally, you can expect the cost to range from $700 to $1500 in the market. At Kalstein, we offer competitive pricing, ensuring affordability without compromising on quality. For the most accurate pricing, we encourage you to request a quote through our Kalstein Plus platform.
Frequently Asked Questions
What is the interpupillary distance range for this microscope? The microscope accommodates an interpupillary distance of 48 to 75mm, making it suitable for users with varying preferences.
Does the microscope offer illumination options? Yes, it features a 3W-LED illumination system, ensuring optimal brightness for detailed observations.
Is the microscope compatible with phase contrast objectives? Yes, it offers compatibility with Infinity Plan Phase Contrast Objectives for enhanced visualization.
Advantages and Disadvantages
This microscope is advantageous due to its robust design, wide range of magnification options, and compatibility with various objectives and illumination choices. However, its advanced features and precision may overwhelm beginners, making it more suitable for experienced users or laboratories.
Use of Product in the Field
The Binocular Infinity Plan Laboratory Biological Microscope is designed for laboratory environments, allowing precise observation of biological specimens. It is particularly useful in research, medical diagnostics, and educational settings, providing high clarity and detail for scientific studies.
Recommendations
To maximize the performance of your microscope, ensure regular maintenance, including cleaning lenses with appropriate solutions and checking the alignment of optical components. Using the appropriate power supply ensures consistent illumination and longevity of your equipment.
Features
- Inclined 30°, rotatable 360° binocular head
- High eyepoint eyepiece for user comfort
- Infinity plan objectives ranging from 2.5x to 100x
- Mechanical stage with precise control
- 3W-LED illumination system
- Wide variety of optional accessories
Technical Specifications
| Model | Cata. No. | YR05787 | YR05788 | |
| Head | Seidentopf Binocular Head Inclined 30°, Rotatable 360°, Interpupilary Distance 48-75mm | YR05788-op1 | ● | ○ |
| Seidentopf Trinocular Head Inclined 30°, Rotatable 360°, Interpupilary Distance 48-75mm, Light Split Fixed P20:E80 | YR05788-op2 | ○ | ● | |

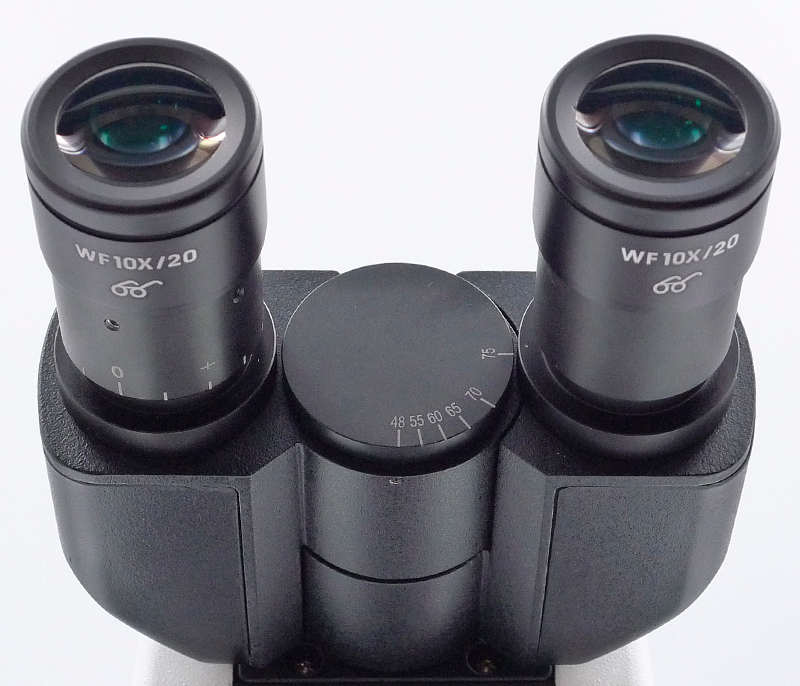

| WF10X/20mm (High Eyepoint) | YR05788-op3 | ●● | ●● | |
| Nosepiece | Quadruple, Backward | YR05788-op4 | ● | ● |
| Quintuple, Backward | YR05788-op5 | ○ | ○ | |

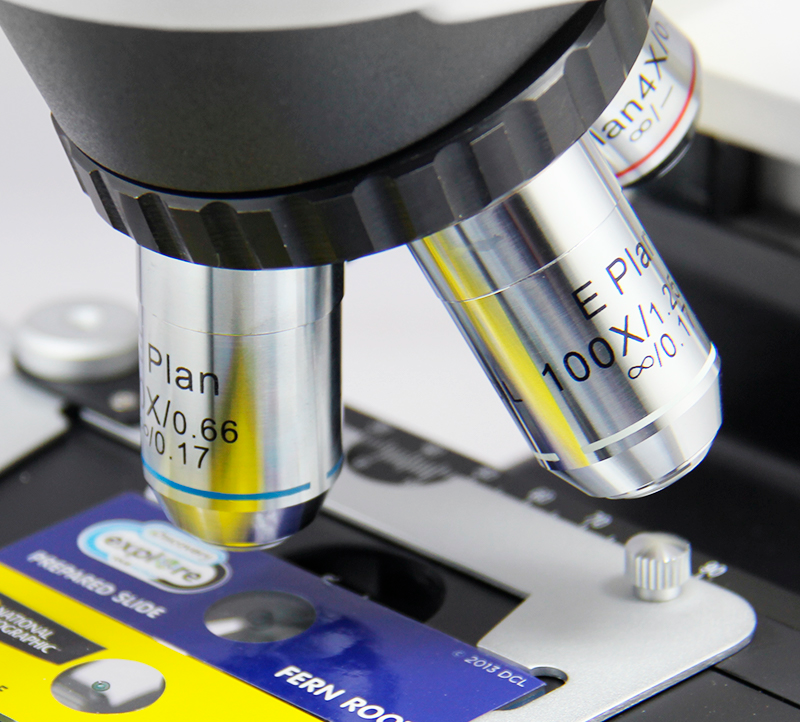

| Infinity Plan Objectives | PLAN 2.5x/0.07, W.D.=8.47mm | YR05788-op6 | ○ | ○ |
| PLAN 4X/0.10, W.D.=12.1mm | YR05788-op7 | ● | ● | |
| PLAN 10X/0.25, W.D.=4.64mm | YR05788-op8 | ● | ● | |
| PLAN 20X/0.40(S), W.D.=2.41mm | YR05788-op9 | ○ | ○ | |
| PLAN 40X/0.66(S), W.D.=0.65mm | YR05788-op10 | ● | ● | |
| PLAN 60X/0.80(S), W.D.=0.33mm | YR05788-op11 | ○ | ○ | |
| PLAN 100X/1.25(S, Oil), W.D.=0.12mm | YR05788-op12 | ● | ● | |
| PLAN 100X/1.15(S, Water), W.D.=0.19mm | YR05788-op13 | ○ | ○ | |

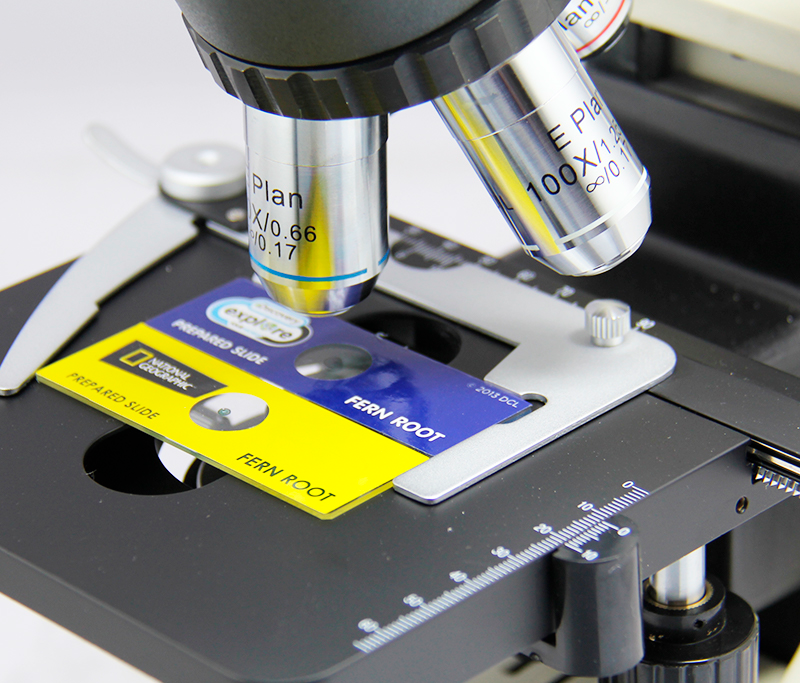

| Working Stage | Mechanical Stage Size: 145 mm×140mm, Travel: 76mmX52mm, Scale: 0.1mm, Double Slide Holder | YR05788-op14 | ● | ● |
| Rackless (Integrated) Stage, Size 140×135mm, | YR05788-op15 | ○ | ○ | |
| Travel Range 75×35mm, Double Slide Holder | - | |||

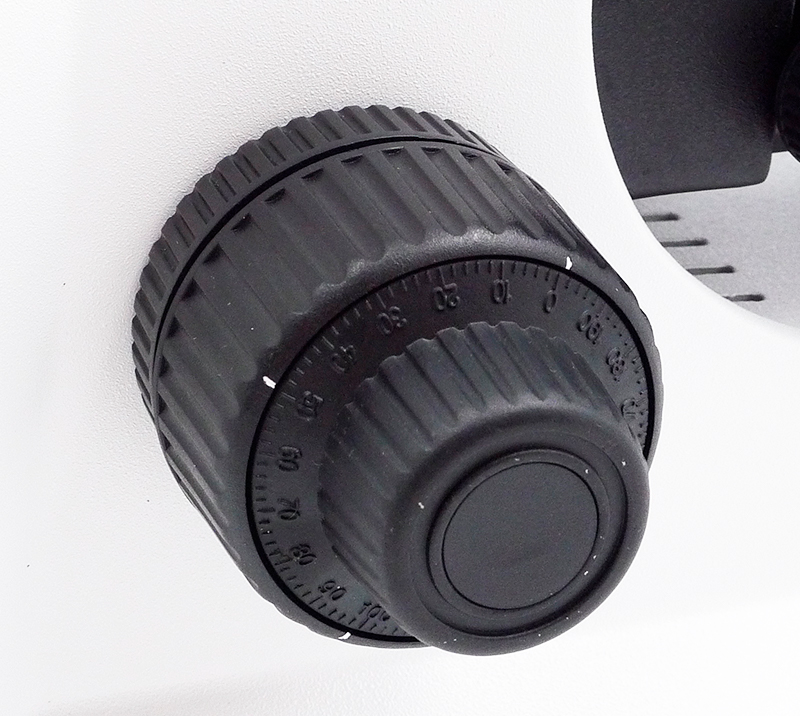

| Focusing | Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 26mm, Fine Focusing Travel Range: 2µm/Division | YR05788-op16 | ● | ● |

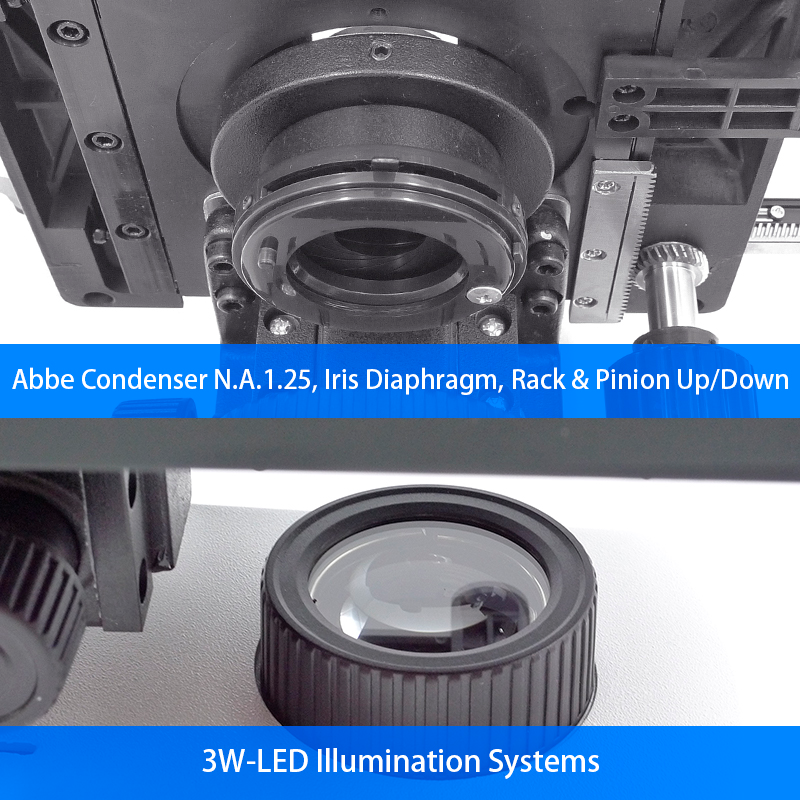

| Condenser | Abbe Condenser N.A.1.25, Iris Diaphragm, Rack & Pinion Up/Down, With Filter Holder | YR05788-op17 | ● | ● |
| Illumination | 3W-LED Illumination Systems | YR05788-op18 | ● | ● |

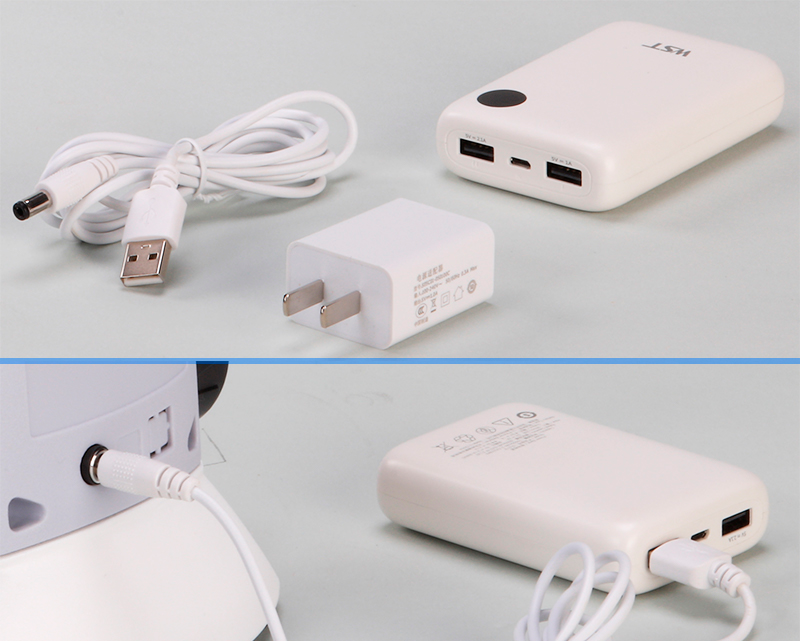

| Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use | - | |||
| 12V/20W Halogen Lamp, Power Supply Wide Voltage 100V~240V | YR05788-op20 | ○ | ○ | |
| 6V/30W Halogen Lamp, Power Supply Wide Voltage 100V~240V | YR05788-op21 | ○ | ○ | |
| Field Diaphragm | Upgrade To Kohler Illumnation | YR05788-op22 | ○ | ○ |
| Filter | Dia.45mm, Blue | YR05788-op23 | ○ | ○ |
| Dia.45mm, Green | YR05788-op24 | ○ | ○ | |
| Dia.45mm, Yellow | YR05788-op25 | ○ | ○ | |
| Dark Field | Dark Field Condenser, Dry, N.A.0.83-0.91, For 4x10x40x Objective | YR05788-op26 | ○ | ○ |
| Polarizing | Analyzer + Polarizer Set | YR05788-op27 | ○ | ○ |
| Phase Contrast | Infinity Plan Phase Contrast Objective 10x + Phase Contrast Slide 10x + Phase Contrast Condenser + Telescope 11x + Green Filter | YR05788-op28 | ○ | ○ |
| Infinity Plan Phase Contrast Objective 20x + Phase Contrast Slide 20x + Phase Contrast Condenser + Telescope 11x + Green Filter | YR05788-op29 | ○ | ○ | |
| Infinity Plan Phase Contrast Objective 40x + Phase Contrast Slide 40x + Phase Contrast Condenser + Telescope 11x + Green Filter | YR05788-op30 | ○ | ○ | |
| Infinity Plan Phase Contrast Objective 100x + Phase Contrast Slide 100x + Phase Contrast Condenser + Telescope 11x + Green Filter | YR05788-op31 | ○ | ○ | |
| Turret Phase Contrast Attachment | YR05788-op32 | ○ | ○ | |
| Infinity Plan Phase Contrast Objective 10x20x40x100x, Turret Phase Contrast Condenser 5-Holes, Telescope 11x, Green Filter | - | |||
| Adapter | C-Mount 0.5x, Focus Adjustable | YR05788-op33 | ○ | ○ |
| C-Mount 0.75x, Focus Adjustable | YR05788-op34 | ○ | ○ | |
| Mirror | Reflecting Mirror & Holder | YR05788-op35 | ○ | ○ |
| Attachment | Wire Winding Device | YR05788-op36 | ○ | ○ |
| Package | Carton Size 390×280×450mm, 1 Unit/Ctn | |||
| Weight | Gross Weight: 7.5 kgs, Net Weight: 6.5 kgs | |||
| Note: "●" In Table Is Standard outfits, "○" Is Optional Accessories | ||||
Technical specifications
| Dimensions | L 39 × W 28 × H 45 cm |
|---|---|
| Weight | 8.5 kg |
| Manufacturer | Kalstein |
