Product Description
- Monocular, binocular, trinocular and teaching head available for choose.
- Quadruple nosepiece with precise click stop.
- Intergrated double layer mechanical stage, size 142x132mm, moving range 75x50mm.
- Abbe condenser N.A.1.25, high brightness 3w led, brightness adjustable
- Infinity plan and achromatic optical system available
Seidentopf Head
Monocular, binocular, trinocular and teaching head available for choose. All heads inclined al 30°, rotatable 360°. For binocular and trinocular, both eyepiece tube diopter adjustable +/-5°.
Quadruple, Backward
Quadruple nosepiece with precise click stop. Equipped with 35mm achromatic CF objective 4X, 10X, 40Xs, 100Xs (oil).
Double Slide Holder Working Stage
Integrated double layer mechanical stage, size 142×132 mm, moving range 75×50 mm.
Condenser & Light Source
Abbe condenser N.A.1.25 high brightness 3W LED, brightness adjustable.
Technical Specification:
| Model No. | YR0242-M | YR0242-B | YR0242-T |
| Video Adapter | —— | C-Mount 0.3x | —— |
| Power Supply Type | AC 110V-240V | —— | |
| Transmit Light | Halogen 6V20W or LED Optional | ||
| Light Source Type | Halogen | ||
| Condenser N.A. | 1.25 | ||
| Condenser Type | Abbe | ||
| Condenser Features | Rack & Pinionↆ↑, Filter Holder, Center Adjustable | ||
| Focusing Scale | 0.002mm | ||
| Focusing Range | 36mm | ||
| Focusing Type | Coaxial Coarse & Fine | —— | |
| Focusing Features | Safety Stop Screw Tension Adjustable | ||
| Working Stage Moving | 75*50mm | ||
| Working Stage Size | 132*142mm | ||
| Working Stage Type | 2 Layers Mechanical | ||
| Objective | Achromatic 4x, 10x, 40x(S), 100x(O,S) | ||
| Objective Type | Achromatic | ||
| Nosepiece Holes | 4 Holes | ||
| Nosepiece Features | Inward | ||
| Eyepiece | WF10x/18mm | ||
| Eyepiece Diameter | 23.2mm | ||
| Head Interpupillary | 54~75mm | ||
| Head Rotation | Head Rotate 360° | —— | |
| Head Inclination | 30° | —— | |

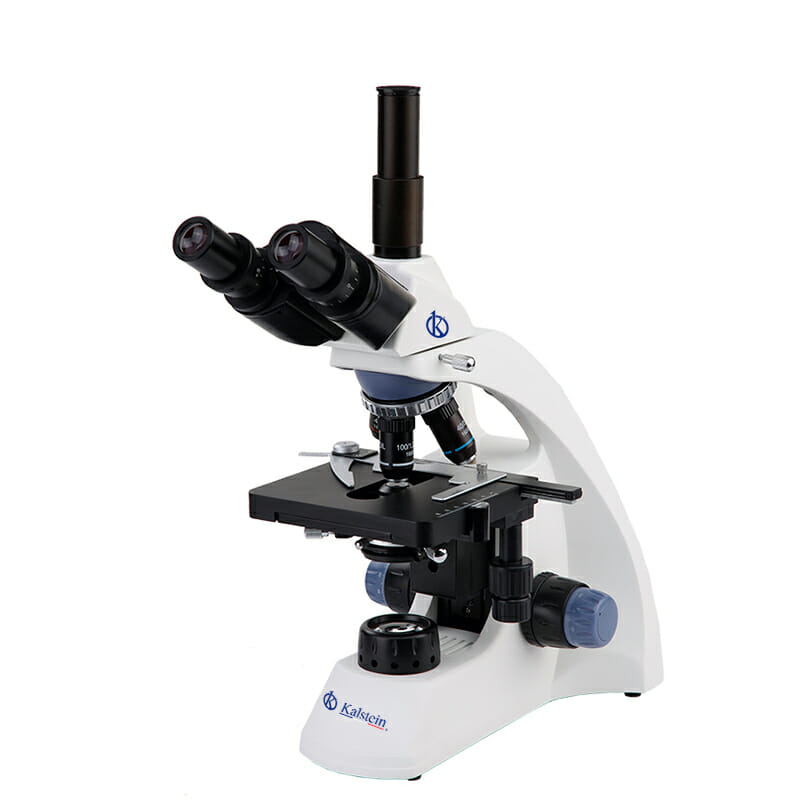

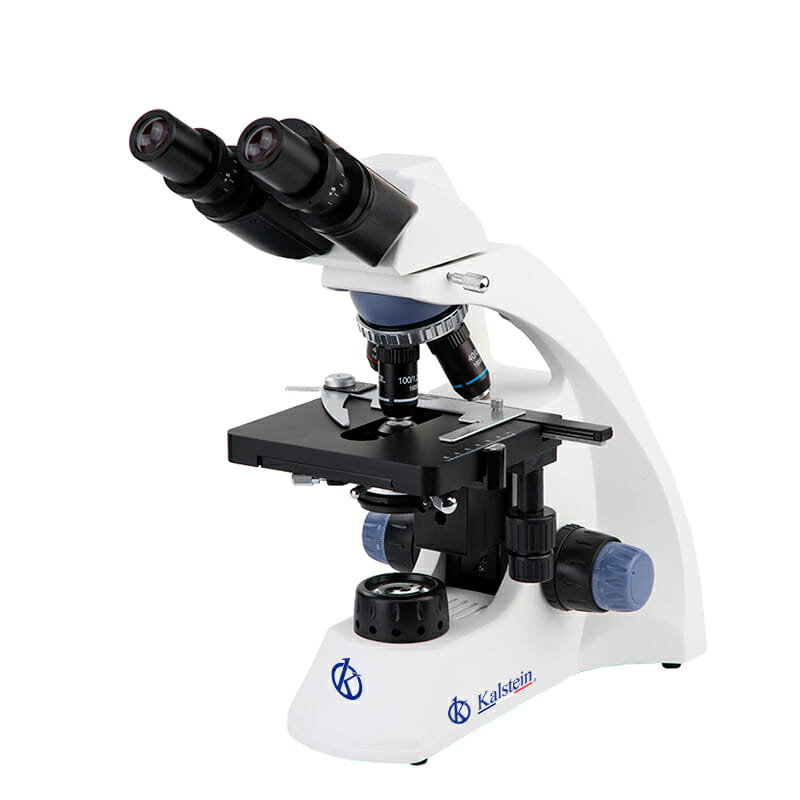

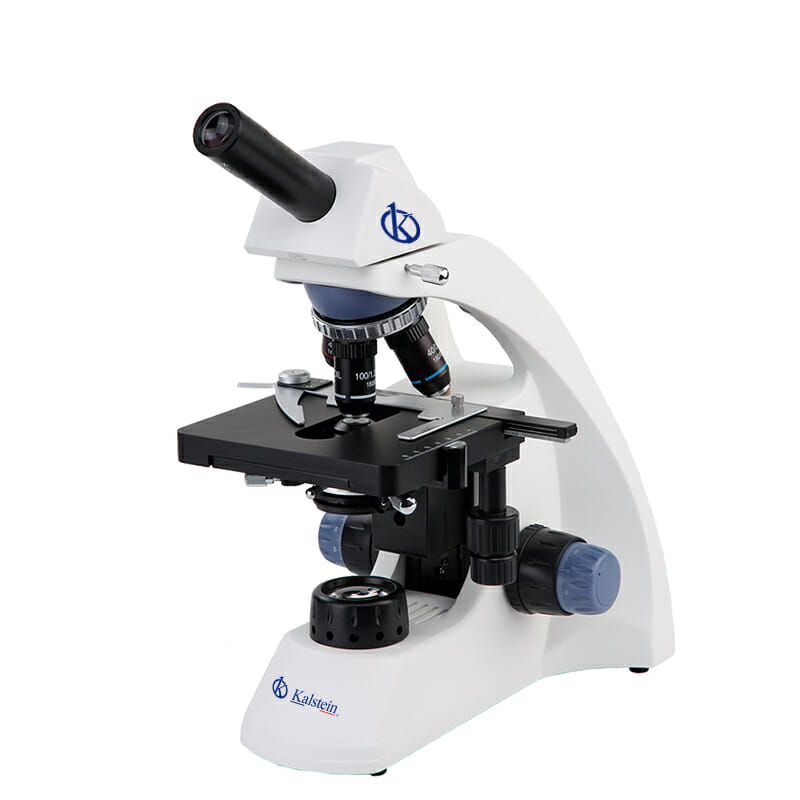

| Head Type | Monocular | Binocular | Seidentopf Trinocular |
| Standard Magnification | 40x-1000x | —— | |
| Optical System | Achromatic | ||
| Standard Function | BF | —— | |
Additional Information
| Weight | 6 kg |
|---|---|
| Dimensions | 34 × 25,5 × 49 cm |
| Model | YR0242-B, YR0242-M, YR0242-T |
