Description

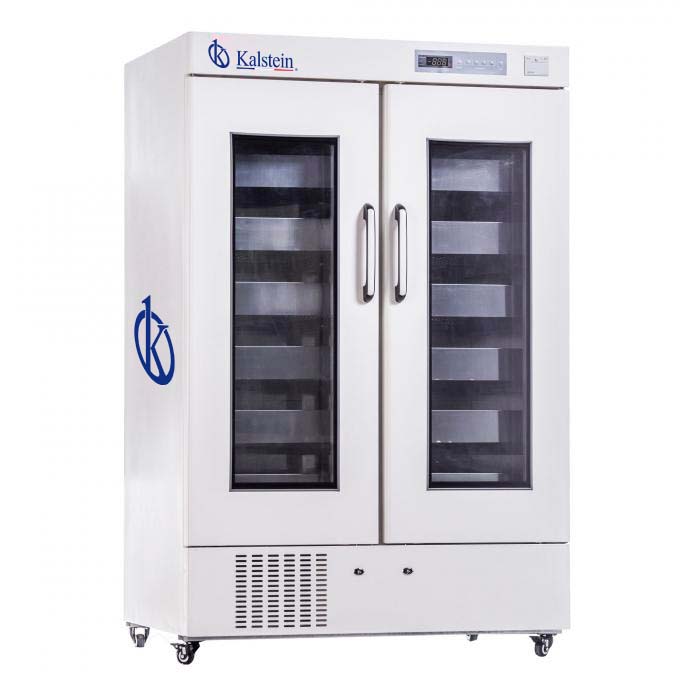

1008L blood bank refrigerator with 12 pcs 304 stainless steel drawers , temperature 4±1°C.
PROMED blood bank refrigerator are specially designed to store blood bags and blood-derived products.
For 450ml blood bags storage: 576units
Features
- Accurate microprocessor controller to ensure consistent cabinet temperature 4±1°C.
- Specially designed forced-air cooling system to ensure frost-free cabinet and good temperature uniformity.
- Three layer toughened glass door with heater to avoid condensation.
- 304 stainless steel inner chamber for friendly using and easy cleaning.
- Wide available voltage range: 187V~242V
Safety
- Safety door lock and controller setting password to prevent unauthorized access.
- Build-in back-up battery to display temperature and to operate audible and visual alarm system for up to 8 hours without AC power.
- Inner doors and auto on/off cooling fan to prevent cold air from leaking out when the door is opening.
- Visual and audible alarm system: High/low temperature, power failure, sensor error, door ajar,backup battery malfunction
- Power failure protection: turn on delay of the cooling system after power failure.
- Controller error protection: the cooling system will remember the normal working cycle and keep working depending on this memory when controller or two sensor failed.
- Temperature printer: print current inside temperature automatically per 15 minutes.
Humanized design
- 4 casters with stopper for easy moving and fixation.
- 12 stainless steel drawers for easy using.
- Special designed service-free drainage system ensure no water in the cabinet.
- Standard 25mm test hole for easy connecting to temperature monitoring systems.
- Digital display with big screen, easy to check
Technical Specifications
Model | YR05292 | |
Performance | ||
Temperature Range | 4°C±1°C | |
Ambient Temperature | 10~32°C | |
Controller | Microprocessor | |
Display | Digital Display | |
Refrigeration System | ||
Compressor | 1 | |
Refrigerant | R134a | |
Cooling Type | Forced-air cooling | |
Defrost Type | Frost free | |
Alarm | ||
High/Low Temperature | Y | |
Sensor Error | Y | |
Power Failure | Y | |
Door ajar | Y | |
Accessories | ||
Caster | 4 | |
Lamp | LED | |
Drawer | 12 | |
Test hole | 1/25mm | |
Temperature printer | 1 | |
Chart recorder | Optional | |
Electrical Data | ||
Power Supply(V/Hz) | 220/50~60; 115/60 | |
Rated Power(W) | 513 | |
Electrical Current(A) | 2.74 | |
Power Consumption | 8.53 kWh/24h | |
Dimensions | ||
Capacity | 1008L | |
Interior Size(W*D*H) | 1100*684*1325mm | |
Exterior Size(W*D*H) | 1240*860*1895mm | |
Package Size(W*D*H) | 1300*960*2130mm | |
N.t./G.t.(approx) | 265/335kg | |
Loading Qty(20’/40’/40’H) | 8/16/16 |
