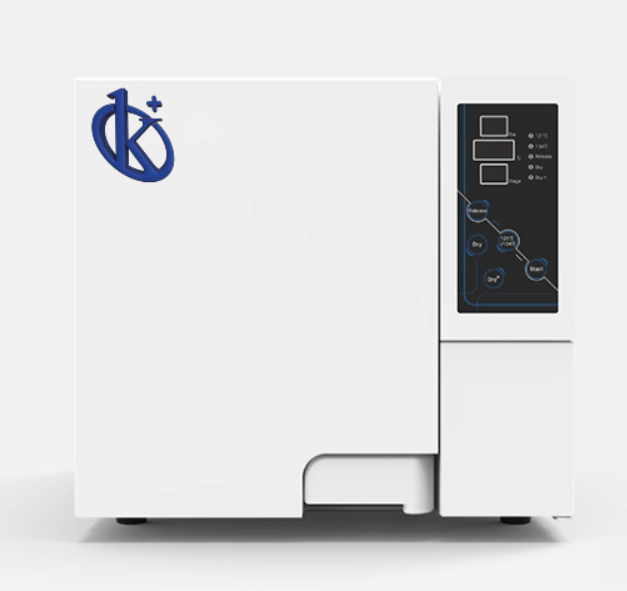

Class N Benchtop Autoclave YR03395 // YR03400

Manufacturer: Kalstein

Description

The Class N Benchtop Autoclave YR03395 / YR03400 offers a reliable and efficient solution for sterilization in medical, dental, and laboratory environments. Featuring standard preprogrammed cycles at 134 °C and 121 °C, it ensures effective disinfection of solid, non-cavity instruments. This model is designed with manual filling capabilities, giving users full control over each cycle stage. Its compact size, coupled with an intuitive LED interface, provides real-time updates on temperature, pressure, cycle duration, and safety alerts, making it a practical choice for professionals who prioritize ease of use and reliability in their sterilization processes.

Market Price

When exploring the market for benchtop autoclaves, the price range for similar products spans from approximately 800 USD to 1600 USD, depending on features and make. This range reflects the balance between quality and affordability, ensuring you invest in a device that promises durability and efficiency. It’s always beneficial to explore price comparisons to find the best value offer within this spectrum.

Frequently Asked Questions

Is the autoclave suitable for sterilizing wrapped instruments? No, the Class N Autoclave is specially designed for unwrapped, non-cavity instruments.

How often should the chamber be manually filled? The chamber must be filled before each cycle to ensure optimal operation.

Advantages and Disadvantages

This model’s compact size and low maintenance cost stand out as primary advantages, along with an automatic lock safety system to prevent operation under pressure. However, its need for manual filling requires more hands-on attention, potentially limiting unsupervised use during intensive operations.

Product Use in the Field

The Class N Benchtop Autoclave is widely utilized in dental offices, veterinary clinics, and small laboratories. It’s highly effective for frequent sterilization cycles, particularly for simple instruments, maintaining high biosecurity standards without consuming excessive space or budget.

Recommendations

For optimal performance and longevity, it is advisable to use distilled water only, conduct regular internal cleaning, and avoid overloading the chamber. Regularly verifying sterilization parameters before each cycle is also crucial for maintaining effective sterilization standards.

Features

  • Preprogrammed sterilization cycles: 134 °C and 121 °C
  • Manual chamber filling for process control
  • Compact and space-saving design
  • Intuitive LED screen displaying real-time cycle data
  • Automatic lock safety system

Technical Specifications

Model YR03395/YR03396 YR03397 /YR03398 YR03399 /YR03400
Voltage. Frequency 220/110V, 50/60Hz
Power 1500W
Chamber Volume appr. 18L (E318/E418/E518), appr. 23L (E323/E423/E523)
Chamber Dimensions Ø247x350mm (18L), Ø247x450mm (23L)
Tray Size (W x H) 192x285mm (18L), 192x380mm (23L)
Tray Material Aluminum
Number of Trays 2/ Max. 4
Weight 32kg/36kg 33kg/37kg 33.5kg/37.5kg
Overall Dimensions (W x H x D) 483x450x515 mm (E318/E418/E518)
483x450x615 mm (E323/E423/E523)
Sterilization Program 134℃/210Kpa, 121℃/110Kpa
Sterilization Time 134℃, Default 30min (30~60min adjustable)
121℃, Default 10min (10~20min adjustable)
Dry No Default 60min (1~60min adjustable) Default 60min (1~60min adjustable)
Dry + No No Default 60min (1~60min adjustable)

Additional information

Weight N/A
Dimensions 62 × 51 × 56 cm
Model

YR03395, YR03396, YR03397, YR03398, YR03399, YR03400
