Description

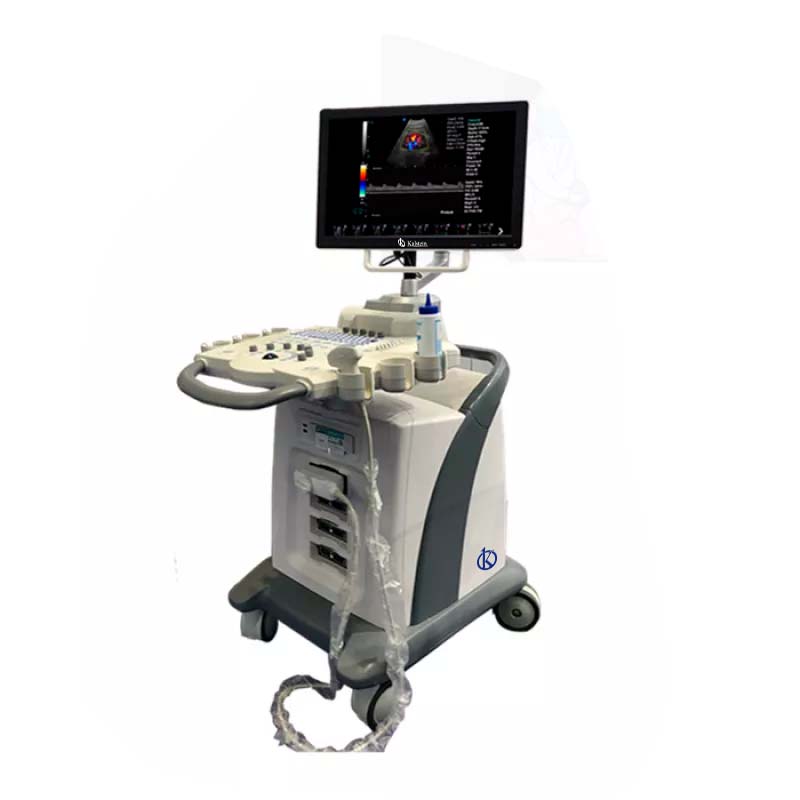

- 15 inch large LED color display Real Doppler function USB ports and VGA port and 4 probe connectors
- Main Application: Abdomen/Cardiac/Obstetrics/Gynecology/Urology/Andrology/Small/Vascular/Pediatrics/Musculoskeletal disorders and so on.
- Modes image: B 2B… 4B MB/M/B/C. B/D/B/C/D/B/CFM/D CF + Model B Simultaneously PDI Dual Color Simultaneous Color 2D/3D/4D Composite Color PW CW Duplex/Triplex… CFM… CDE CD Directional PD Anatomy M Color M Mode
- PC based Color Doppler with Windows system which can connect with any printers in any brands Printed area are adjustable which can be photos or reports image+report etc
- Built in DICOM 3.0 protocol
- Multi-languages function: English, Chinese, Spanish, Portuguese, Russian, Arabic, French, Vietnamese, Indonesian, German, Persian, Thai
Technical description
| Model | YR05151 | |
| Physical specifications | ||
| Equipment Weight | 80kg | |
| Packing Size | 100cm×80.5cm×148cm | |
| Packing Weight | 200kg | |
| Connectivity/Media/Peripherals | ||
| Port Transducer | 4 | |
| USB ports | 4 | |
| 128 Hard Drive | 128GB (SSD) 120G/200GB SSD (optional) | |
| Printing area | Report image image + report | |
| Ethernet port | 2(100Mb/1000Mb) | |
| external screen | hdmi-vga | |
| Printer (optional) | USB Cable Digital Printer Digital Laser Printer B / W Thermal Printer | |
| Hardware specifications of the LED monitor | ||
| Size | fifteen” | |
| Contrast Ratio | 800: 01: 00 | |
| Resolution | 1024 * 768 pixels | |
| Brightness | 230 cd / m2 | |
| Depth of color | 24bit | |
| Rotate Angle | ± 90 ° | |
| Gray the Levels | 256 | |
| DICOM connectivity | ||
| software | Built-in 3D… 4D CW…PW software |
|
| Image Storage | ||
| Storage Format | PNG AVI BMP JPEG DICOM | |
| Video format export | AVI | |
| Export Image Format | PNG JPEG BMP DICOM | |
| Overall performance: | Digital broadband | 12288 channels |
| Haz-ex. | Re-programmable | |
| Transmit tension | Adjustable (15 steps) | |
| Haz-ex-frequency range | 1 ~ 40 MHz | |
