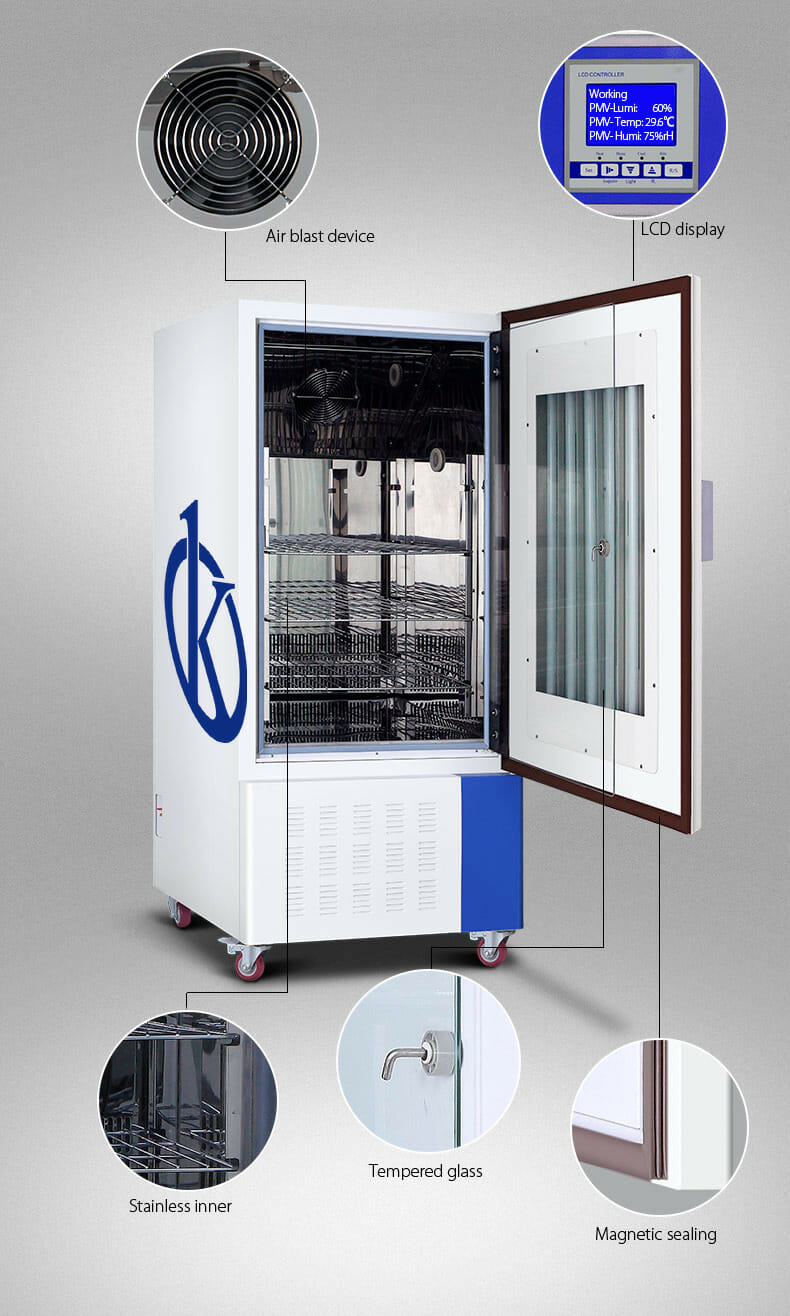

Comprehensive Drug Stability Test Chamber YR05354 // YR05356

ManufacturerKalstein

Description

The Comprehensive Drug Stability Test Chamber YR05354 // YR05356 is a state-of-the-art solution for pharmaceutical companies that require precise control over temperature, humidity, and lighting conditions for drug stability testing. This chamber is engineered with advanced technology such as a world-famous compressor, balanced refrigeration, and the ALLFLOW air current cycling system, ensuring a stable and uniform environment perfect for long-term trials and accelerated testing. With features like programmable PID control and an ergonomic design, this chamber provides ease of operation, efficient control, and top-tier safety systems.

Market Price

The Comprehensive Drug Stability Test Chamber generally costs within a range of $10,500 to $11,600 in the market. This investment is justified by its cutting-edge functionalities and reliability, which are essential for any pharmaceutical company’s testing and evaluation processes.

Frequently Asked Questions

  • What is the temperature range of the chamber? The temperature range is 10~65℃ with lighting and 0~60℃ without lighting.
  • Does the chamber allow for remote operation? Yes, it supports remote control through software, enhancing convenience for users.
  • What safety features are included? The chamber comes with multiple over-temperature protection systems and alarms, ensuring reliable and safe operation.

Advantages and Disadvantages

Advantages: The chamber offers precise control over environmental conditions, robust safety features, and energy-saving technology. Disadvantages: The initial cost can be significant for smaller operations, and it may require additional training for optimal use.

Use of Product in the Field

This stability test chamber is crucial in pharmaceutical labs for conducting tests that simulate various environmental conditions, like high humidity and strong light, to assess long-term and accelerated drug stability. It ensures that drugs maintain their efficacy over time under different environmental stresses.

Recommendations

Regular maintenance and calibration of the chamber’s sensors and control systems are recommended to ensure optimal performance. Utilizing its programmable features can also tailor tests to specific needs, maximizing its utility in stability testing applications.

Features

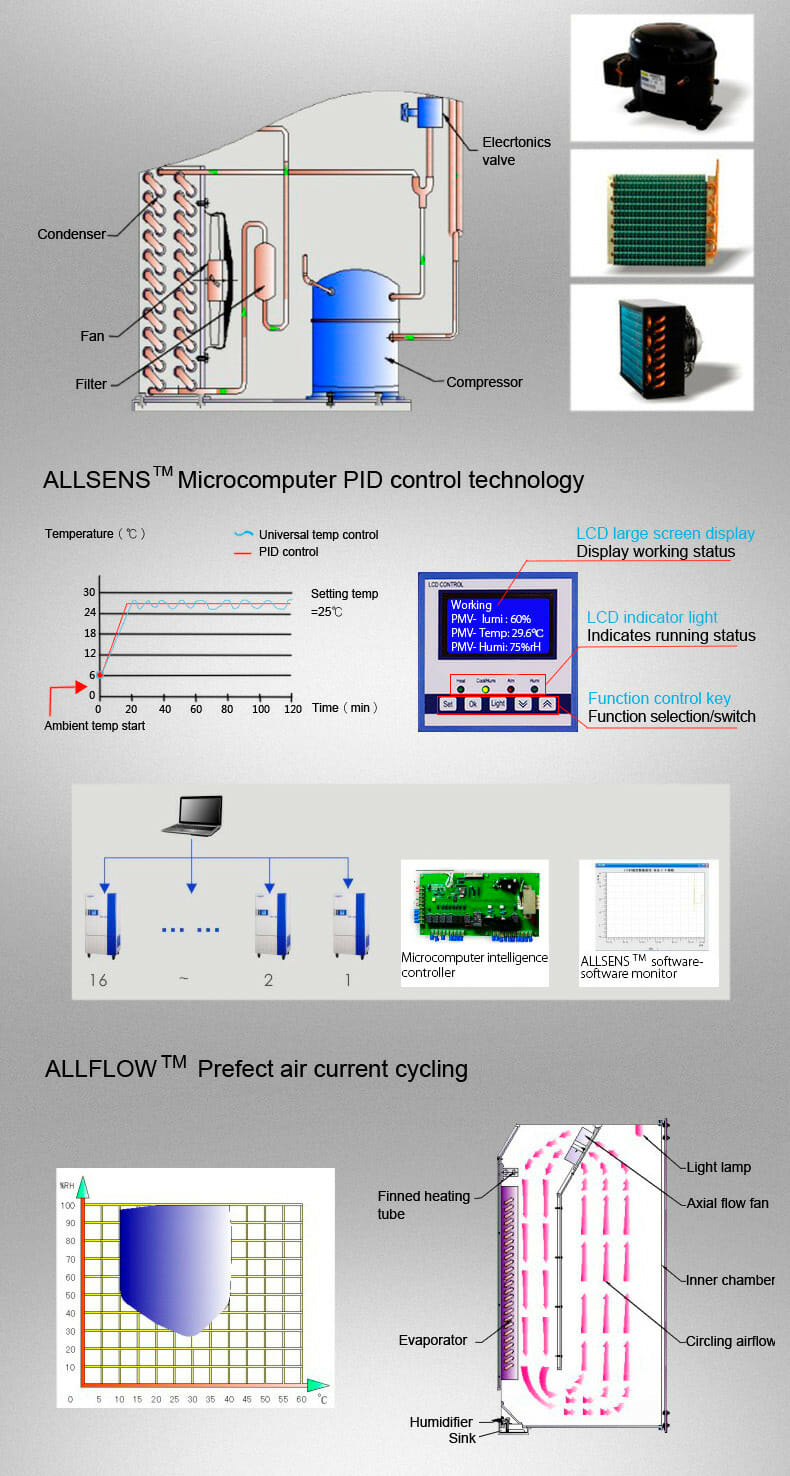

  • World-famous compressor for balanced refrigeration and energy efficiency
  • Precision control with ALLSENS Programmable PID
  • ALLFLOW air current cycling for stable environmental conditions

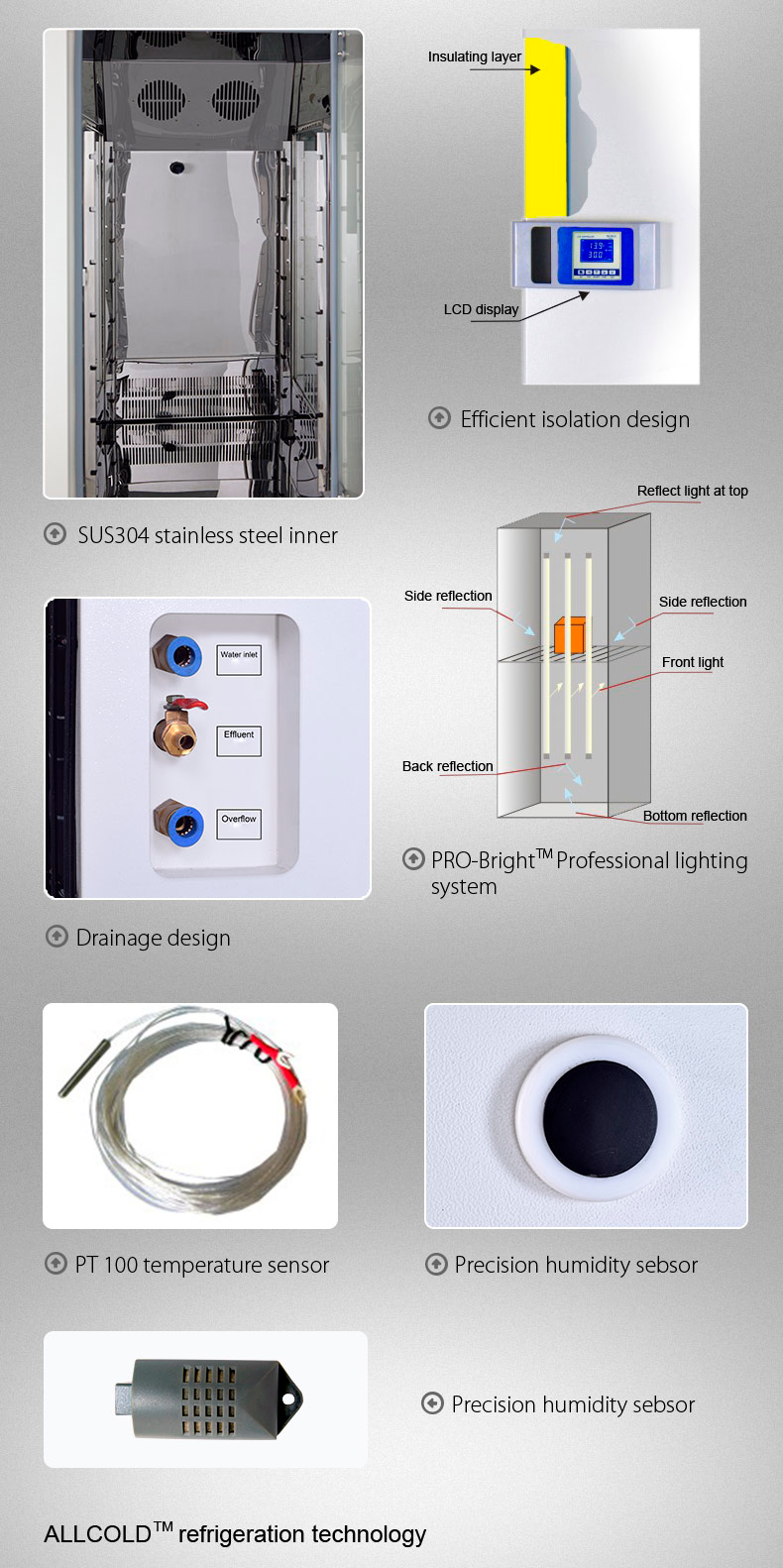

  • Efficient isolation design for power conservation
  • Ergonomic and modern design for user convenience
  • Comprehensive safety and protection systems

Technical Specifications

Product Model
ALLIGENT-KG
Comprehensive drug stability test chamber
YR05354
YR05355
YR05356
Convection Mode
Forced Convection
Control System
Thirty stages Microprocessor PID controller
Temp. Range
10~65℃(with lighting)/0~60℃(without lighting)
Temp. Accuracy
0.1℃
Temp. Fluctuation
(10-40℃)
±0.5℃
Temp. Uniformity(10-40℃)
±1
±1
±1.5
Humidity Range
Humidity Range:50~90%RH,Humidity Fluctuation:±3%RH
Illumination Range
0~6000LX(five stages adjustable)
Working environment
Ambient temperature:10~30℃, Humidity <70%
Insulation materials
Imported environmental protection type material
External Dimensions (H×W×D)
1410×650×680
1730×650×740
1700×745×930
Internal Dimensions (H×W×D)
760×510×390
1100×510×450
1050×600×640
Interior Volume (L)
150
250
400
Interior steel materials
Interior steel materials
Power Consumption (W)
1080
1100
1350
Power supply
AC220V/50Hz
Net Weight(KG)
107
135
158
Shipping Weight(KG)
132
162
186
Shipping Dimensions (H×W×D)
1610×750×830
1930×750×890
1900×840×1080

Additional information

Weight N/A
Dimensions N/A
Model

YR05354, YR05355, YR05356
