Description

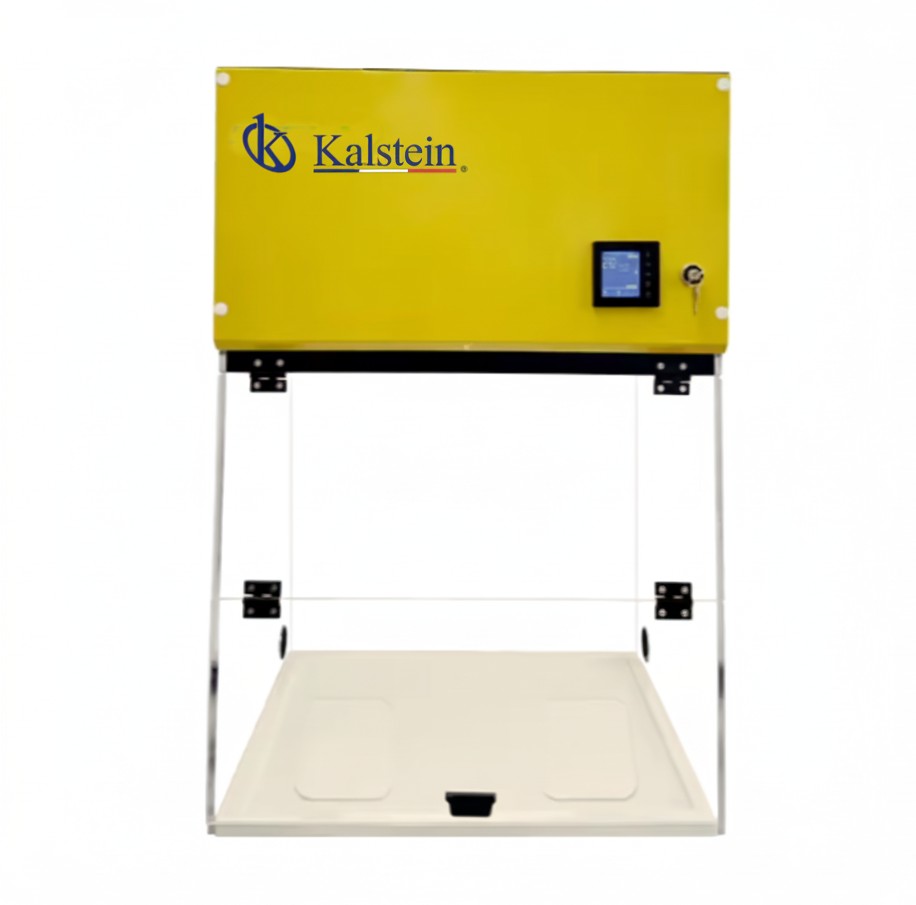

The High-Performance Flow Hood YR06569 is an advanced and specialized laboratory solution, designed for working environments that demand maximum safety and control, facilitating 4-sided panoramic visibility. Its H14 level filtration guarantees exceptional air purification 99.997%. The cabinet structure is manufactured from a cold-rolled steel plate (1.0 mm) thick, with an epoxy resin powder coating (yellow) that provides excellent chemical resistance. A distinctive and crucial feature is the acrylic viewing window of (10 {mm}), which is fabricated by one-piece hot-bending molding and offers 4-sided panoramic visibility.

Design, Flexibility, and Frequently Asked Questions

The YR06569 model offers crucial configuration flexibility: it can be chosen as a ductless version or with a 160  duct. The work surface uses a PP (Polypropylene)

The folding front window (magnetically fixed) allows for three key positions for safety and handling:

• Fully Closed: Provides more effective prevention of harmful gas escape.
• Half Open: Meets laboratory safety requirements when the opening is below.
• Fully Open: Only allows for the entry and exit of large equipment; working is prohibited when fully open.

Filtration, Advantages, and Disadvantages

Advantages:

• Maximum Filtration Efficiency:).
• 4-Sided Panoramic Visibility: Folding front window and clear acrylic sides for a complete view of the workspace.
• Powerful Ventilation: Integrated Centrifugal Fan
• Emergency Safety: “Full Speed” button (T key) which overrides speed and runs the fan at maximum power for emergencies.
• Chemical Resistance: PP work surface.

Disadvantages:

• The operating noise is 50 DB
• Requires periodic replacement of the filters H14 HEPA and Activated Carbon) and the UV lamp.
• High filter Initial/Ultimate Resistance (Initial: 220 Pa or less / Final: 500 Pa or less).

Product Use in the Field

The YR06569 Flow Hood is essential in pharmaceutical research, microbiology, media preparation, and any application requiring strict sterilization and particle control due to its H14 99.997 filtration. Its surface and chemical resistance make it suitable for handling biological samples and strong acids. The 4-sided panoramic visibility provided by the acrylic is crucial for precise monitoring of complex experiments from multiple angles, making it a versatile unit for university labs and specialized R&D centers.

Recommendations

• Verify the efficiency of the H14 HEPA filters periodically, maintaining the initial resistance  220 {Pa}
• Use the “Full Speed” button (T key) only in case of emergency for immediate contaminant evacuation.
• The unlimited wind speed adjustment allows the hood to be adapted to different experiments.
• Cleaning and instrument handling are facilitated by opening the window to the maximum height.

Technical Specifications
