Description

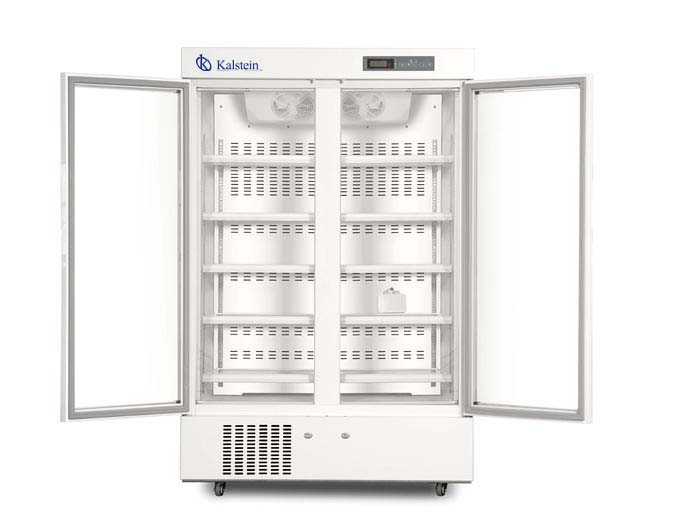

656L Double Door Pharmacy and Lab Refrigerator with Glass Door and LED Interior Ligh
Reliability and Key Features
- High efficiency specialty compressor with known field reliability
- Permanently lubricated cooling fan for safety and longevity
- Forced- air cooling with optimized air distribution system designed
- To achieve maximum temperature uniformity and stability
- Optimized refrigeration system design for more effective cooling and
- Speedy recovery
- Temperature variation within ±3ºC
- Adjustable temperature range 2-8ºC
- Microprocessor control, digital display, and temperature adjustment with an increment of 0.1ºC
- Large digital display screen
Ergonomic Design
- Optimized space utilization design with multi – level and adjustable shelf height to accommodate storage requirement of pharmaceutical products of various kinds.
- Safety lock to prevent unauthorized access
- Caster design and leveling legs
- LED Interior light
Safety
Equipped with a complete temperature alarm system featuring audible buzzer and visible flashing light
Capable of alerting failures due to high and low temperature sensor error, door ajar, , power failure and low battery
Technical Specification
| Performance | ||
| Temperature Range | 2~8°C | |
| Ambient Temperature | +10~+32°C | |
| Controller | Microprocessor | |
| Display | Digital Display | |
| Refrigeration System | ||
| Compressor | 1 | |
| Refrigerant | R600a | |
| Cooling Type | Forced air cooling | |
| Defrost Type | Automatic | |
| Alarm | ||
| High/Low Temperature | Y | |
| Sensor Error | Y | |
| Power Failure | Y | |
| Door ajar | Y | |
| Accessories | ||
| Caster | 4 | |
| Light | LED | |
| Shelf | 10 | |
| Temp. Recorder | Optional | |
| Chart recorder | ||
| Test hole | 1/25mm | |
| Electrical Data | ||
| Power Supply(V/Hz) | 220/50~60; 115/60 | |
| Rated Power(W) | 385 | |
| Electrical Current(A) | 2.3 | |
| Power Consumption | 5.75 kWh/24h | |
| Dimensions | ||
| Capacity | 656L | |
| Interior Size(W*D*H) | 1100*454*1325mm | |
| Exterior Size(W*D*H) | 1240*630*1895mm | |
| Package Size(W*D*H) | 1335*710*2000mm | |
| N.t./G.t.(approx) | 166/184kg | |
| Loading Qty(20’/40’/40’H) | 13/27/27 | |
