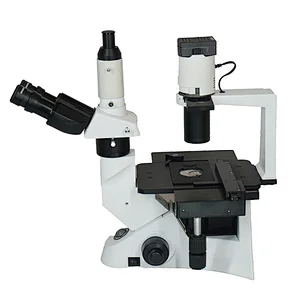

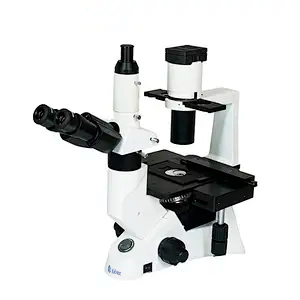

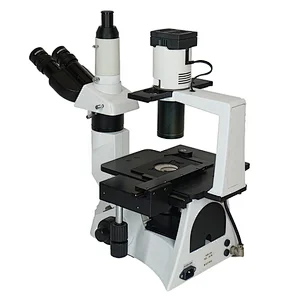

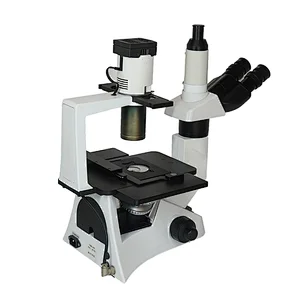

Inverted Trinocular Microscope YR0230

ManufacturerKalstein

Description

The Inverted Trinocular Microscope YR0230 is a state-of-the-art laboratory instrument designed for observing living specimens with precision and clarity. Equipped with an infinity optical system and Seidentopf trinocular head, this microscope offers superior optical performance. Its extra-wide field eyepieces and a variety of long working distance achromatic and phase contrast objectives make it an ideal tool for detailed research of living specimen structures and liquid deposits, allowing scientists to achieve accurate and reliable results.

Market Price

The average market price range for microscopes of this caliber is between $1,700 and $2,300, depending on additional features and brand reputation. While the Inverted Trinocular Microscope YR0230 is competitively priced, it offers unmatched value considering its advanced specifications and reliable performance. For exact pricing and promotions, we invite you to request a quote through the Kalstein platform.

Frequently Asked Questions

What types of specimens can the YR0230 analyze?
The YR0230 is designed for transparent and unfinished living specimens in culture bottles and utensils, making it ideal for biological and medical research.

Can this microscope be used for photography?
Yes, with the optional photo adapter, you can capture high-quality images of your observations.

Advantages and Disadvantages

Advantages: The YR0230 offers high-quality optics, versatility with interchangeable objectives, and ergonomic design for comfortable use. It fits various research applications.

Disadvantages: Its advanced features may come with a learning curve for new users, and its specialized capabilities are best suited for laboratory settings.

Field Usage

In field scenarios, such as biological research laboratories, the YR0230 provides detailed views of live specimens. Its adaptable lighting and objective options allow researchers to customize the microscope for specific study needs, ensuring optimal observation conditions and accuracy.

Recommendations

To maximize the use of the YR0230, regularly calibrate the optical system and clean the lenses to ensure the best possible image quality. Familiarize yourself with adjusting illumination and objectives for diverse specimen types. Consider using compatible digital imaging accessories for documentation and analysis.

Features

  • Infinity optical system
  • Extra wide field eyepiece with high eye point
  • Seidentopf Trinocular Head with adjustable interpupillary distance
  • Multiple objectives for various magnifications
  • External Kohler illumination system

Technical Specifications

Model YR0230
Optical System  Infinity Optical System

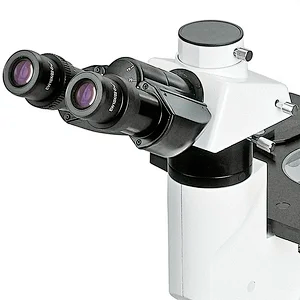

Head Seidentopf Trinocular Head, 30° Inclined,
Interpupillary 48~75mm, Diopter Adjustable
Eyepiece Extra Wide Field Eyepiece EW10x/22mm, High Eye point
Nosepiece Quintuple Nosepiece
Objective Infinity Plan LWD Achromatic Objective 4x/0.1, W.D.18mm
40x/0.6, W.D.2.6mm,Cover Glass 1.2mm
Infinity Plan Phase Contrast Achromatic Objective PH10x/0.25, W.D.10mm
PH20x/0.40, W.D.5.1mm
Focusing Coaxial Coarse & Fine Adjustment, Coarse Stroke 37.7mm Per Rotation, Fine Stroke 0.2mm Per
Rotation
Working Stage Plain Stage 160*250mm
–Glass Insert Plate
–Auxiliary Stage 70*180mm

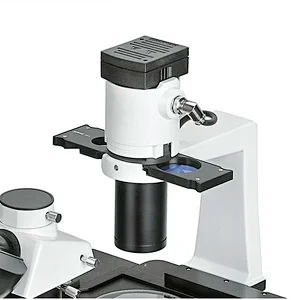

Condenser ELWD Condenser N.A.0.3, Long Working Distance 72mm, Up to 150mm Without Condenser
Phase Contrast –Centering Telescope, Tube Dia.30mm
–Phase Contrast Slide, 2 Holes For 10x-20x Objective
Filter Green, Blue, Ground Glass, Dia.45mm
Illumination External Kohler Illumination, Halogen Lamp 6V30W, Brightness Adjustable
Adapter Eyepiece Adapter Dia.23.2mm
Inverted Laboratory Biological Microscope Optional Accessories
Objective Infinity Plan LWD Achromatic Objective 10x/0.25,W.D.10mm YR0230-op1
20x/0.4,W.D.5.1mm YR0230-op2
Phase Contrast Infinity Plan Phase Contrast Achromatic Objective PH40x/0.6,W.D.0.35mm YR0230-op3
Phase Contrast Slide, 3 Holes For 10x-20x-40x Objective YR0230-op4
Working Stage Attachable Mechanical Stage, X-Y Coaxial Control, Moving Range 120*78mm YR0230-op5
Ergonomic Stage Knob’s Height & Position Along Y-Axis Movable To Where It
Is Most Comfortable, Tightness Adjustable
Terasaki Holder, Inner Holding Size 56x88mm YR0230-op6
Petri Dish Holder Dia.38mm YR0230-op7
Slide Glass Holder Dia.54mm YR0230-op8
Slide Glass Holder Dia.90mm YR0230-op9
Adapter Photo Adapter YR0230-op10
C-Mount 1.0x YR0230-op11
C-Mount 0.45x YR0230-op12
Fluorescent Fluorescent Attachment YR0230-op13

Additional information

Weight 15,5 kg
Dimensions 46,8 × 39,7 × 66,5 cm
