Description

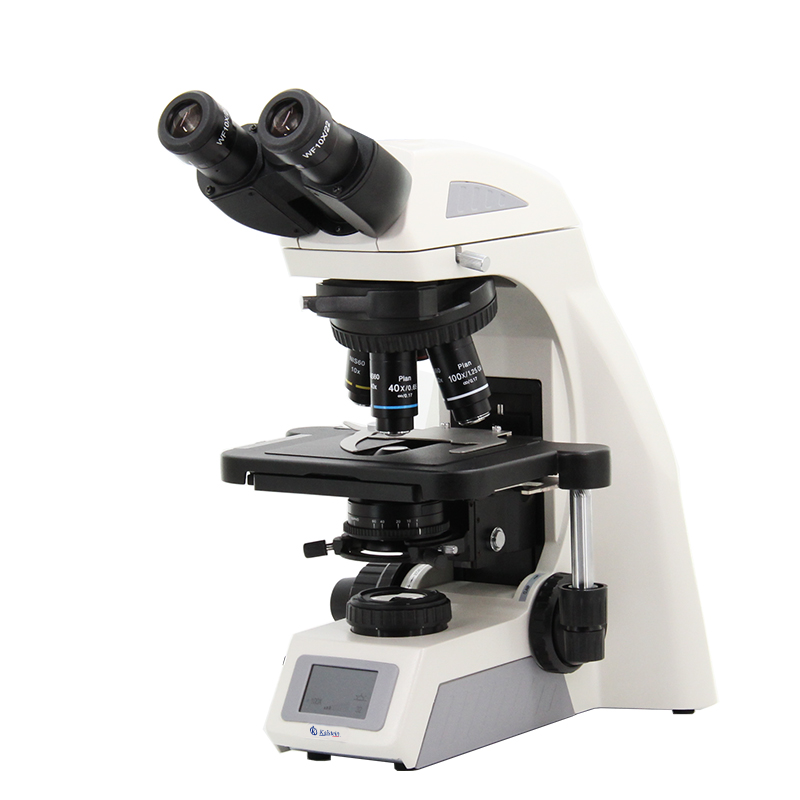

The Laboratory Biological Microscope YR0267A – YR0267B is an advanced optical device designed for precise scientific explorations. It features the NIS Infinity Optical System, which provides high contrast and exceptionally flat images, ensuring superior clarity and a high signal-to-noise ratio, making it ideal for academic research and industrial applications. Equipped with a coded nosepiece, this microscope remembers the illumination brightness for each objective, enhancing work efficiency and reducing visual fatigue. The inclusion of FN 22 wide field eyepieces allows for sharper and more detailed imaging experiences.
Market Price
The Laboratory Biological Microscope YR0267A – YR0267B is competitively positioned in the market, with prices generally ranging from $1,500 to $2,000 depending on supplier and additional optional features. This range reflects the advanced capabilities and precision engineering of the microscope, providing excellent value for scientific professionals.
Frequently Asked Questions
What is the optical system used in these microscopes? The YR0267A – YR0267B models use the NIS Infinity Optical System for superior image quality.
Can the microscope’s illumination intensity be adjusted? Yes, the microscope is designed to auto-adjust light intensity as objectives are changed, minimizing eye strain.
Advantages and Disadvantages
Advantages: High contrast and resolution, ergonomic design to reduce visual fatigue, auto-memory for illumination settings.
Disadvantages: The high cost might be a barrier for some users, and the variety of configurations could be overwhelming without professional guidance.
Field Use

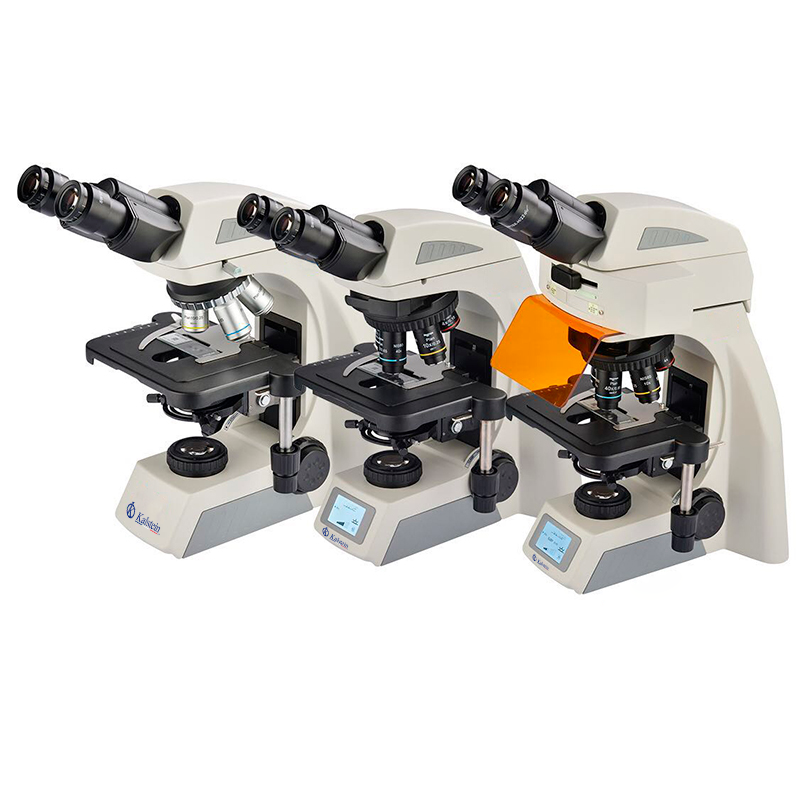

The Laboratory Biological Microscope YR0267A – YR0267B excels in detailed biological research and educational settings. Its capability to provide both bright and dark field observation methods allows for versatile use, from cell biology studies to advanced research projects. The microscope’s reliability and precision support demanding laboratory environments.
Recommendations
For optimal performance, regularly clean the lenses with appropriate solutions, and store the microscope in a dust-free environment. Utilize the auto-memory feature to customize illumination settings, enhancing your comfort and efficiency during extended research sessions.
Features
- NIS Infinity Optical System
- FN 22 Wide Field Eyepieces
- Coded nosepiece for illumination adjustment
- Versatile observation methods including bright and dark field
- Coaxial Coarse & Fine Adjustment system
- LCD screen for real-time status display
- 3W S-LED Kohler Illumination
Technical Specifications
| Model | Cata. No. | YR0267A | YR0267B | |
| Optical System | NIS Infinite Optical System | ● | ● | |
| Observation Method | Bright Field | ● | ● | |
| Dark Field | ○ | ○ | ||
| Polarizing | ○ | ○ | ||
| Phase Contrast | ○ | ○ | ||
| Epi-Fluorscence | ○ | ○ | ||
| Head | Seidentopf Binocular Head, Inclined At 30° , Interpupillary Distance 47-78mm, Eyepiece Tube Dia.30mm | YR0267B-op1 | ● | |
| Seidentopf Trinocular Head, Inclined At 30° , Interpupillary Distance 47-78mm, Eyepiece Tube Dia.30mm, Light Path Fixed 50:50 | YR0267B-op2 | ● | ||
| Seidentopf Trinocular Head, Inclined At 30° , Interpupillary Distance 47-78mm, Eyepiece Tube Dia.30mm, Light Path Switchable 0:100/100:0 | YR0267B-op3 | ○ | ○ | |
| Tilting Binocular Head, Inclined 5°~35° , Interpupillary Distance 47-78mm, Eyepiece Tube Dia.30mm | YR0267B-op4 | ○ | ○ | |
| Digital Head, Built-in Digital Camera 5.0M, Support Android, IOS, Windows, Output Image By WIFI In Real Time | YR0267B-op5 | ○ | ○ | |
| Upgrade to A31.1062-5.0M | ||||
| Digital Head, Built-in Wireless Digital Camera 5.0M, Support Android, IOS, Windows, Output Image By WIFI In Real Time, App Software, By Scanning QR Code On Microscope, Installing App & Identifying Microscope, You Can View Micro Image On Mobile Phone & Tablet. | YR0267B-op6 | ○ | ○ | |
| Upgrade to A31.1062-5.0W | ||||
| Eyepiece | EW10x/22mm, Diopter Adjustable, Dia.30mm | YR0267B-op7 | ● | ● |
| EW15x/16mm, Diopter Adjustable, Dia.30mm | YR0267B-op8 | ○ | ○ | |
| EW20x/12mm, Diopter Adjustable, Dia.30mm | YR0267B-op9 | ○ | ○ | |
| Nosepiece | Quintuple Nosepiece, Dovetail Interface | YR0267B-op10 | – | – |
| Coded Quintuple Nosepiece, Dovetail Interface | YR0267B-op11 | ● | ● | |
| NIS45 | 4x/0.10, W.D.20.6mm | YR0267B-op12 | – | – |
| Infinity Plan | 10x/0.25, W.D.17.9mm | YR0267B-op13 | – | – |
| Objective | 20x/0.40, W.D.6.40mm | YR0267B-op14 | – | – |
| 40x/0.60, W.D.1.50mm | YR0267B-op15 | – | – | |
| 60x/0.80, W.D.0.30mm | YR0267B-op16 | – | – | |
| 100x/1.25(Oil), W.D.0.16mm | YR0267B-op17 | – | – | |
| 100x/1.10(Water), W.D.0.16mm | YR0267B-op18 | – | – | |
| NIS60 | 4x/0.10, W.D.30.0mm | YR0267B-op19 | ● | ● |
| Infinity Plan | 10x/0.25, W.D.10.2mm | YR0267B-op20 | ● | ● |
| Objective | 20x/0.40, W.D.4.8mm | YR0267B-op21 | ○ | ○ |
| 40x/0.65, W.D.1.5mm | YR0267B-op22 | ● | ● | |
| 60x/0.80, W.D.0.30mm | YR0267B-op23 | ○ | ○ | |
| 100x/1.25(Oil), W.D.0.3mm | YR0267B-op24 | ● | ● | |
| 100x/1.10(Water), W.D.0.2mm | YR0267B-op25 | ○ | ○ | |
| NIS60 | 10x/0.25, W.D.10.2mm | YR0267B-op26 | ○ | ○ |
| Infinity Plan | 20x/0.40, W.D.12.0mm | YR0267B-op27 | ○ | ○ |
| Phase Contrast | 40x/0.65, W.D.0.7mm | YR0267B-op28 | ○ | ○ |
| Objective | 100x/1.25(Oil), W.D.0.2mm | YR0267B-op29 | ○ | ○ |
| Focusing | Coaxial Coarse & Fine Adjustment, Tension Adjustable, Fine Division 0.002mm, Coarse Focusing Range 28mm | ● | ● | |
| Working Stage | Double Layer Mechanical Rackless Stage, Size 230x150mm, Moving Range 78x54mm | – | – | |
| Double Layer Mechanical Rackless Stage, Size 230x150mm, Moving Range 78x54mm, Anti-Scratch Hard Coating Dural Platform | ● | ● | ||
| Condenser | Inserted Abbe Condenser N.A. 1.25, With Slot For Phase Contrast Slide And Dark Field Slide. | ● | ● | |
| Illumination | 1W S-LED Critical Illumination | – | – | |
| 3W S-LED Kohler Illumination | ● | ● | ||
| Green Filter | ● | ● | ||
| Dark Field | Dark Field Slide | YR0267B-op29 | ○ | ○ |
| Polarizing | Simple Polarizing Set | YR0267B-op30 | ○ | ○ |
| Phase Contrast | Phase Slider For 10x-40x | YR0267B-op31 | ○ | ○ |
| Phase Slider For 100x | YR0267B-op32 | ○ | ○ | |
| Epi-Fluorescence Attachment | 3W LED Epi-Fluorescence Attachment, Fly-Eye Lens Illumination, With 2 Filter Position + Bright Field Position, Switch Quickly, With Attachable UV Shield, | YR0267B-op33 | ○ | ○ |
| B, G Filters | ||||
| Filter U | YR0267B-op34 | ○ | ○ | |
| Filter V | YR0267B-op35 | ○ | ○ | |
| Photo Adapter | 1.0x C-Mount | YR0267B-op36 | ○ | ○ |
| 0.5x C-Mount | YR0267B-op37 | ○ | ○ | |
| Power Supply | AC 100-240V,50/60Hz | ● | ● | |
| USB Charging Port, Support To Use Exeternal Rechargeable Battery Power Bank Like Mobile Phone Out Door Freely | ● | ● | ||
| LCD Screen | LCD Screen On Front Of Body, Display Using State Of Microscope, Including Magnification, Light Intensity, Standby Status, Set Power Off Timer 5 Mins to 8 Hours, And So On. | ● | ● | |
| Dimensions | 220(W)x290(D)x472(H) mm | ● | ● | |
| Note:”●”In Table Is Standard Outfits,”○”Is Optional Accessories”-“Is Unavailable | ||||
